Product Details:
Payment & Shipping Terms:
|
| Power: | 60w | Material: | Die Casting Aluminum |
|---|---|---|---|
| Color: | Customized | Color Temperature: | 3000-6500K |
| RA: | 80 | LED Lifetime: | 50000h |
| N.W: | 5.3KGS | G.W: | 5.8KGS |
| High Light: | ra80 Aluminum Led Street Light,Aluminum 50 watt led street light,Aluminum Led Street Light 60w |
||

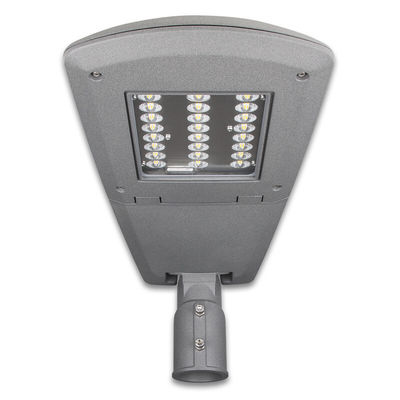

Factory Direct Ra 80 50W 60W Aluminium led street light for Square School Residential district
ZHSL-11
Installing Ways:
Both Horizontal and Vertical available
and adjustable angle -15 °to 15 °
Material: Die casting Aluminum body
Ultra clear tempered glass and PC lens
Features:
Advanced street lamp. Modern, smooth housing facilitates cleaning.
The two-chamber design with a high class of tightness allows service to be performed only in the part of the lamp where it is needed.
Access to essential components without the use of tools. After opening the housing, the power supply is automatically cut off.
The lamp can be delivered with most of the modern control options available on the market. In the upper part of the housing,
there is a place for mounting the NEMA connector.
A beam of light shaped by an array of lenses, each of which focuses light from a small group of LEDs.
Optical system protected by tempered glass.
Possible installation on a vertical pole or horizontal extension arm with adjustable angle of inclination
| Code | ZHSL-11-30 | ZHSL-11-40 | ZHSL-11-50 | ZHSL-11-120 |
| Power | 40W Max | 40W Max | 60W Max | 120W Max |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Efficiency | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W |
| Voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000 | 50000 | 50000 | 50000 |
| IP | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ50/60mm | Φ50/60mm | Φ50/60mm | Φ60mm |
| Installation Height | 6-8 m | 6-8m | 8-10m | 10-12m |
| Net Weight | 2.5kg | 2.5kg | 6.0kg | 9.0kg |
| Gross Weight | 2.7kg | 2.7kg | 7.0kg | 9.2kg |
| Packing Size(mm) | 600*270*155 | 600*270*155 | 680*290*170 | 795*370*210 |
| L(mm) | W(mm) | H(mm) | |
| ZHSL-11-30 | 519 | 220 | 117 |
| ZHSL-11-40 | 519 | 220 | 117 |
| ZHSL-11-50 | 590 | 256 | 131 |
| ZHSL-11-120 | 738 | 320 | 164 |
the lights go to where it's needed. there is a reflecting cavity mounted inside the lens, which could recycle the light, ensure as
much as possible light is used to illuminate the target. Die-casting Man LED street lights could meet the specific light pattern
requirement to comply with roadway
regulations.
