Product Details:
Payment & Shipping Terms:
|
| Model: | YASL-13-50 | Power: | 60w 50w 40w 30w |
|---|---|---|---|
| Coated Color: | Double Gray, Black, Silver | Optics: | Type II |
| Glass: | Tempered 4mm | Gasket: | Silcone |
| High Light: | 4mm Tempered Glass Die Casting Housing,60w Die Casting Housing,Anti Corrosion Treatment Die Casting Housing |
||

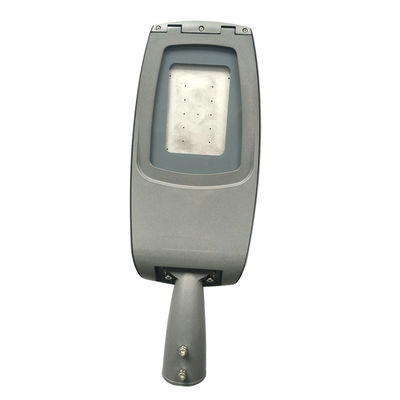

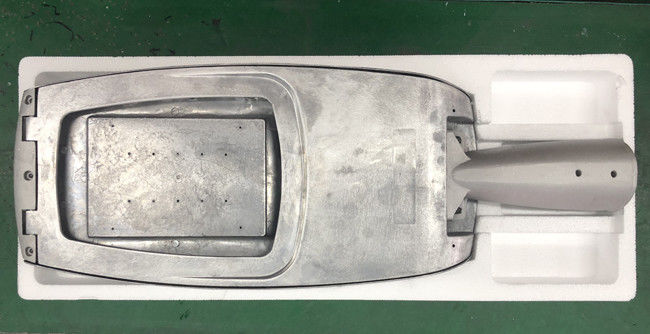

New 60w die casting aluminium body housing with power-coating and anti-corrosion treatment Product Specifications
| Item No. | Power | Voltage | LED Chip | Driver | Light Efficiency | Weight | Packing Size |
| YASL-13-50-40W | 40W | 85-265v | 3030 64PCS | Inventronics/Meanwell/ | 110-130lm/w | 4.6kgs | 690*290*165mm |
| YASL-13-50-50W | 50W | 3030 96PCS | |||||
| YASL-13-50-60W | 60W | 3030 108PCS | |||||
| YASL-13-50-80W | 80W | 3030 108PCS |
| Power: | 50W 60w |
| Voltage: | 85-265V |
| CRI: | ≥70 |
| Color Temperature(CCT): | 6000K (Daylight Alert) |
| Lamp Luminous Efficiency(lm/w): | 130 |
| Color Rendering Index(Ra): | 70 |
| Support Dimmer: | YES |
| Lighting solutions service: | Lighting and circuitry design, Agi32 layout, Project Installation |
| Lifespan (hours): | 36000 |
| Working Time (hours): | 30000 |
| Place of Origin: | Ningbo,China |
| Light Source: | LED |
| Input Voltage(V): | AC85-265V |
| Lamp Luminous Flux(lm): | 120-130LM/W |
| CRI (Ra>): | 80 |
| Working Temperature(℃): | -30℃- +50℃ |
| Working Lifetime(Hour): | 50000 |
| IP Rating: | IP66 |
| Certification: | CE, ROHS, CB, ENENC |
| Application: | Garden, ROAD |
| Power Supply: | AC85-265V |
| Product name: | High Quality Aluminum Outdoor Waterproof Ip66 40 watt led street lamp |
| Color: | Light Grey, Black, Dark Grey, Black Grey |
| Color Temperature: | 2700-6500 |
| Material: | die-casting aluminum |
| Size: | 641*241*114mm |
Product Features
● Meet the installation standard of CSA016, and realize the exchange of the light engine
(module);
● Wide range power supply voltage adaptability, constant current drive;
● High stability, high light efficiency
● The light body is made of aluminum alloy with high mechanical strength and equipped
with PC lens with high light transmittance,
● Beautiful and generous on appearance to improve the safety and impact resistance of
the lamp;
● Good air convection and good heat dissipation effect with hollow structure design;
● Equal brightness light distribution, no glare.
Applicable Place and Environment
● Widely used in street, road, park, industrial area lighting, etc.
● -30℃～45℃,≤98%RH
