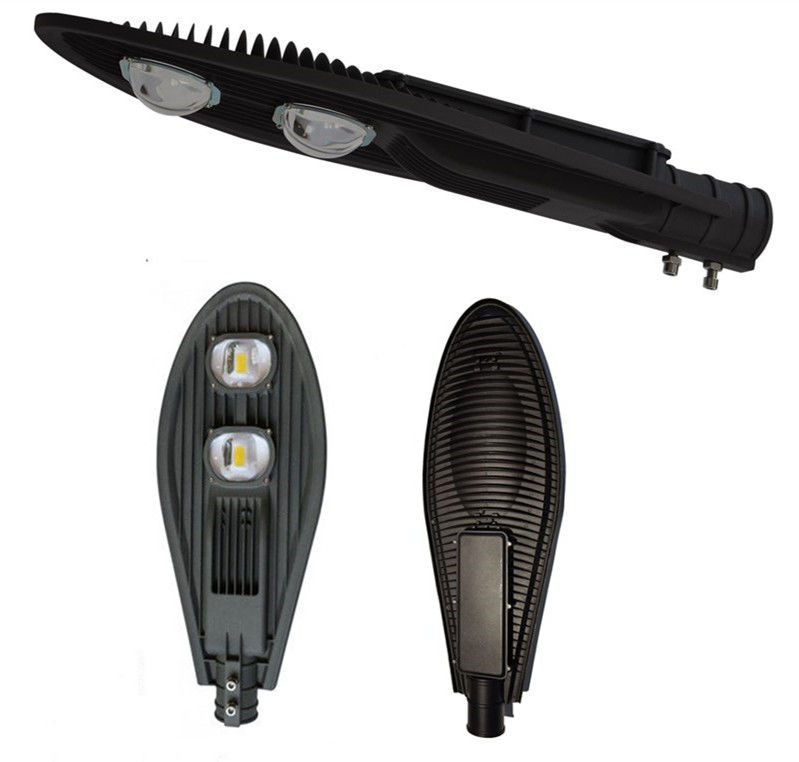

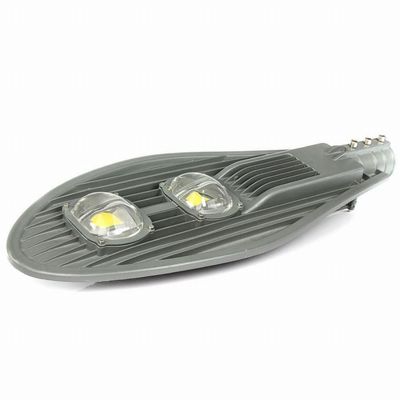

High Brightness IP65 Outdoor Lighting COB Led Street Light Head 120w 150w

High Brightness IP65 Outdoor Lighting COB Led Street Light Head 120w 150w
High Brightness IP65 Outdoor Lighting COB Led Street Light Head 120w 150w High Brightness IP65 Outdoor Lighting COB Led Street Light Head 120w 150w

Large Image :  High Brightness IP65 Outdoor Lighting COB Led Street Light Head 120w 150w

Product Details:
Place of Origin: China
Brand Name: DIE CASTING MAN
Certification: CE, RoHs, ENEC, CB
Model Number: SL-08-120
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment
Supply Ability: 10000PCS/Month.
Detailed Product Description
Power: 120w 150W Material: Die Casting Aluminum Body + Glass Lens
Net Weight: 4.4kgs Gross Weight: 5.2kgs
Installation Pipe: φ60mm Installation Height: 8-12m
High Light:

High Brightness COB Led Street Light

,

150 Watt COB Led Street Light

,

120w COB Led Street Light Head

High Brightness IP65 Outdoor Lighting 120w 150w COB Led Street Light Head

120W 150W COB



TECHNICAL PARAMETERS



POWER SUPPLY Constant current with P.F > 0.98 & THD < 10%
INPUT VOLTAGE 100 V - 300 V A.C, 50 Hz
LIGHT SOURCE COB LED
TOTAL WATTAGE 150 Watts
INITIAL LUMENS 18000 Lumens
LUMEN / WATTS 120 Lm / Watts
COLOUR TEMPERATURE 3000K– 6500K
CRI >80
LIFE 50,000 BR. HRS
OPERATING TEMPERATURE -20° to +60° C
PROTECTIONS FOR DRIVER CIRCUIT Surge Protection, Output short circuit protection, Over Voltage Protection, Over Temperature Protection, Over Current Protection.
WEIGHT 5 Kg



Product Description:





Code ZHSL-08-30 ZHSL-08-50 ZHSL-08-80 ZHSL-08-120 ZHSL-08-180
Power 30W 50W 80W 120W 180W
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000/4000/6500K 3000/4000/6500K
Efficiency >120LM/W >120LM/W >120LM/W >120LM/W >120LM/W
Voltage AC90-305V 50/60Hz AC90-305V 50/60Hz AC90-305V 50/60Hz AC90-305V 50/60Hz AC90-305V 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
CRI(Ra) Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70
Ambient Temperature -20-50℃ -20-50℃ -20-50℃ -20-50℃ -20-50℃
Ambient Humidity 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
Lifetime(hrs) 50000hrs 50000hrs 50000hrs 50000hrs 50000hrs
IP Rate IP66 IP66 IP66 IP66 IP65
Installation Pipe Diameter Φ40mm Φ60mm Φ60mm Φ60mm Φ60mm
Installation Height 4-7m 4-7m 6-8m 10-12m 10-14m
Net Weight 1.8kg 1.8kg 2.8kg 4.4kg 6.2kg
Gross Weight 2.1kg 2.1kg 3.3kg 5.2kg 7.0kg
Packing Size(mm) 445*200*205/2PCS 545*230*120 665*300*145 765*300*145 920*355*150






Luminaire type
A bracket mounted type luminaire for lighting roadways.

Applications
The luminaries can be used for lighting of important roadways, secondary roads, roads in industrial & residential areas etc.

Mounting methods
Suitable for side entry, pole mounting.

Optical system
MOC of optics is borosilicate glass.

LED system
Luminaire luminous flux 16500 lm, luminaire wattage 150W, luminous efficiency of luminaire 110 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.

Luminaire body
Luminaire body is made up of high pressure die cast aluminium, with side contour, with closed appearance, highly weather resistant, powder-coated.



High Brightness IP65 Outdoor Lighting COB Led Street Light Head 120w 150w 0

High Brightness IP65 Outdoor Lighting COB Led Street Light Head 120w 150w 1
