Product Details:
Payment & Shipping Terms:
|
Model: | YASL-08-80 | Power: | 80w |
---|---|---|---|
Material: | Aluminum Die Casting Body+ Tempered Glass Lens | Body Color: | Customized |
Net Weight: | 2.8kgs | Gross Weight: | 3.3kgs |
High Light: | 80w Die Casting Housing,Tempered Glass Lens Die Casting Housing,Ip65 Die Casting Housing |

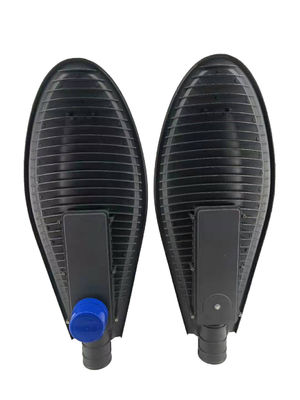

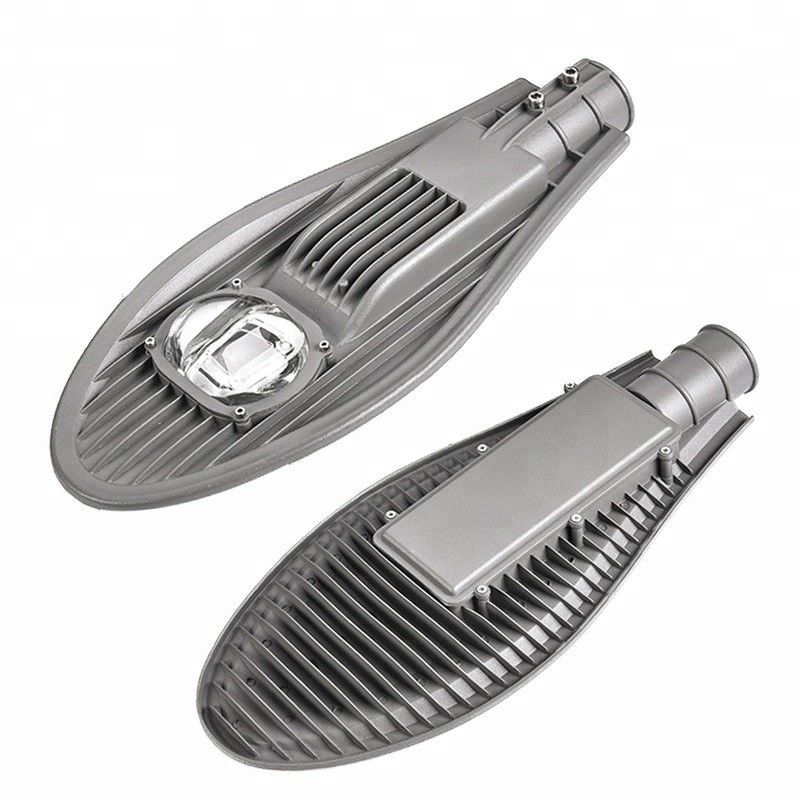

Hot sales Die Casting aluminium housing ip65 waterproof with tempered glass lens
Product description:
Code
|
ZHSL-08-30
|
ZHSL-08-50
|
ZHSL-08-80
|
Power
|
30W
|
50W
|
80W
|
Color Temperature
|
3000-6500K
|
3000-6500K
|
3000-6500K
|
Efficiency
|
>120LM/W
|
>120LM/W
|
>120LM/W
|
Voltage
|
AC90-305V 50/60Hz
|
AC90-305V 50/60Hz
|
AC90-305V 50/60Hz
|
Power Factor
|
PF≥0.95
|
PF≥0.95
|
PF≥0.95
|
CRI(Ra)
|
Ra≥70
|
Ra≥70
|
Ra≥70
|
Ambient Temperature
|
-20-50℃
|
-20-50℃
|
-20-50℃
|
Ambient Humidity
|
20%-90%RH
|
20%-90%RH
|
20%-90%RH
|
Lifetime(hrs)
|
50000hrs
|
50000hrs
|
50000hrs
|
IP Rate
|
IP66
|
IP66
|
IP66
|
Installation Pipe Diameter
|
Φ40mm
|
Φ60mm
|
Φ60mm
|
Installation Height
|
4-7m
|
4-7m
|
6-8m
|
Net Weight
|
1.8kg
|
1.8kg
|
2.8kg
|
Gross Weight
|
2.1kg
|
2.1kg
|
3.3kg
|
Packing Size(mm)
|
445*200*205/2PCS
|
545*230*120
|
665*300*145
|
Tempered glass lens
Using optics tempered glass, high strengthen and unbreakable. light penetrates strongly and uniform.
The lamp body material
Integrated die-cast aluminum , Corrosion resistance and oxidation resistance, good heat dissipation, high waterproof.
stainless steel nuts
the surface is treated against corrosion , not easy to rust, solid and durable strongly .
