Product Details:
Payment & Shipping Terms:
|
| Model No.: | YASL-24-60 | Wattage: | 30w 40w 50w 60w |
|---|---|---|---|
| Material: | Die Casting Aluminum + Tempered Glass 4mm | Net Weight: | 3.3kgs |
| Gross Weight: | 4kgs | Product Size: | 481x260x131mm |
| High Light: | Tempered Glass LED Street Light Housing,305v LED Street Light Housing,60w LED Street Light Housing |
||

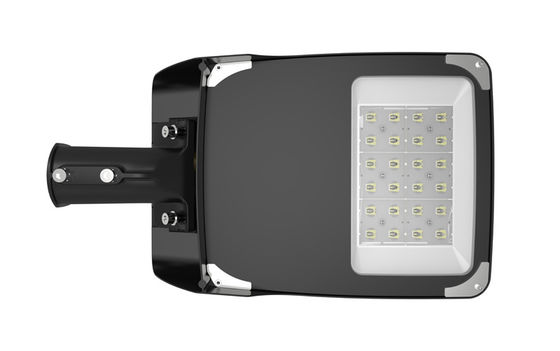

305v ac90 casting aluminum 60w housing led street light for public lighiting

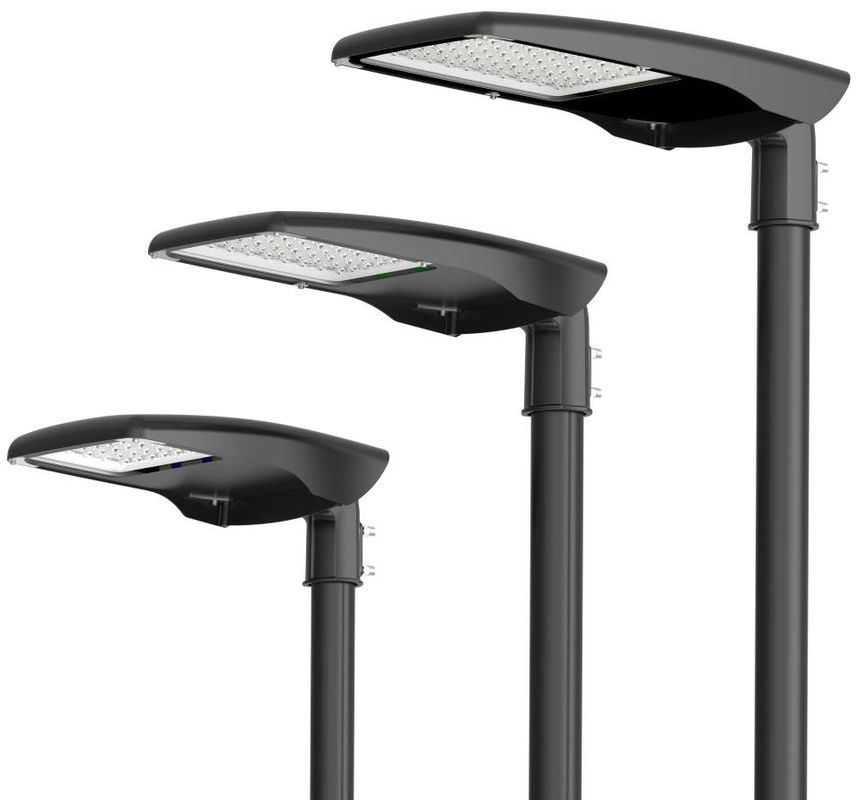

| Product Code | YASL-24-60 | YASL-24-120 | YASL-24-200 | ||||||||
| Input Wattage | 60W Max | 120W Max | 240W Max | ||||||||
| Color Temperature | 3000-6500K | ||||||||||
| Luminous Flux | 8400-9000lm | 16800-18000lm | 28000-30000lm | ||||||||
| Input Voltage | AC90-305V | ||||||||||
| Frequency Range | 50/60Hz | ||||||||||
| Power Factor | PF≥0.95 | ||||||||||
| color rendering index | Ra≥70 | ||||||||||
| Temperature of Working Condition | -40～50℃ | ||||||||||
| Humidity of Working Condition | 20%-90%RH | ||||||||||
| LED Lifetime | 50000h | ||||||||||
| Protectin Grade | IP66 | ||||||||||
| Installation Pipe Diameter | φ60mm | ||||||||||
| Installation Height | 5-8m | 7-10m | 10-14m | ||||||||
| Weight | 3.8 kg | 5 kg | 6.7 kg | ||||||||
| package Size | 52*32*19 cm | 63*32*19 cm | 68*38*20 cm | ||||||||
| L | W | H | |
| YASL-24-60 | 481 mm | 260 mm | 137 mm |
| YASL-24-120 | 594 mm | 263 mm | 135 mm |
| YASL-24-200 | 640 mm | 315 mm | 127 mm |
Die-casting Man was founded in 1996 and is located in Ninghai Mould Centre,
close to Ningbo port and Shanghai port.
Factory covers an area of 15,000 square meters and has 100 employees.
We are a professional factory engaged in research,
design, production, sale and service of street light and die-casting injection OEM and ODM products.
Our products sale mainly
to Europe, Asia and domestic /dəˈmestɪk/ market.
We have die-casting injection, CNC machining, metal punching, powder painting, assembling and testing in house.
Our R&D department will develop 5-10 new products yearly. Besides design and production process,
we work under ISO9001 quality control system to make sure our quality is consistent and well controlled.
Our main products are street light and die-casting OEM injection products.
Current we have 24 series street light and various customer OEM products.
Our street lights are available from 20W to 240W mainly.
Every series we have small, medium and large size and some have mini version.
If you do not like current version, we can also design the one to meet your market.
We are a company never stand still on products and service.
