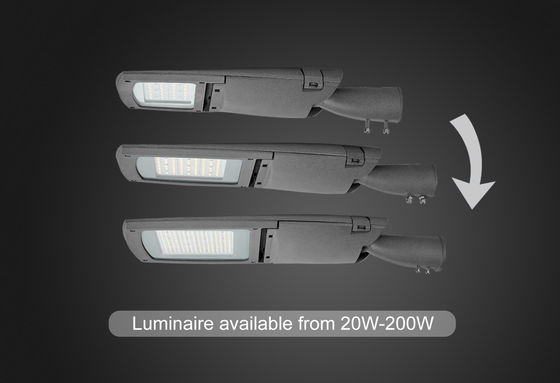

Die Casting Aluminum 120w Led Street Lamp Housing For Public Lighiting

Die Casting Aluminum 120w Led Street Lamp Housing For Public Lighiting
Die Casting Aluminum 120w Led Street Lamp Housing For Public Lighiting
video play

Large Image :  Die Casting Aluminum 120w Led Street Lamp Housing For Public Lighiting

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-14-80
Payment & Shipping Terms:
Minimum Order Quantity: 5pc
Price: negotiation
Packaging Details: styrofoam package and carton box
Delivery Time: 7 - 30 days
Payment Terms: T/T
Supply Ability: 10000PCS/Month.
Detailed Product Description
Model No.: YASL-14-80 Wattage: 80w 100w 120w
Material: Die Casting Aluminum + Tempered Glass 4mm Net Weight: 6kgs
Gross Weight: 6.5kgs Product Size: 780*350*185mm
Impact Resistance: IK09 IP Grade: IP66
High Light:

IP66 Led Street Lamp Housing

,

120 Watt Led Street Lamp Housing

,

120w Die Casting Housing

305v Ac90 Die Casting Aluminum 120w Housing Led Street Light For Public Lighiting

new design 120 watt led streetlight post light outdoor 220v smart led streetlamp





Product Description:



Product name High Quality different colors input wattage 120w IP66 led street light
POWER 30W 50W 80W 100W 120W 150W 200W
Material: body made from die-casting aluminum, coated with UV and corrosion resistance coataing, suitable for pole top mounting with symmetrical light beam. All exposed metal parts (e.g. screws) are with corrosion resistance.
Color Temperature 2700K, 3000K, 4000K, 5700K, 6500K
Body COLOR Double gray, Sandy black ,Silver, other Ral no. available
Size: 738*289*118mm
Input Voltage AC90-305V
Protection Grade IP66
Clr Rendering index Ra≥70
OEM,ODM Welcome
MOQ no requirement
Sample Lead Time 7-15days
Payment Terms LC at sight or T/T 30% in advance ,balance against shipping documents
FOB NINGBO/SHANGHAI
Production Time 30-40days according to order quantity



Product Code YASL-14-40 YASL-14-80 YASL-14-120
Input Wattage 40W 80W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 4400-5000lm 9200-10400lm 16500-18750lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -40-50℃ -40-50℃ -40-50℃
Humidity of Working Condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter ⌀60mm ⌀60mm ⌀70mm
Installation Height 4-7m 6-10m 8-12m
Net Weight 4.6kg 6.0kg 9.8kg
Gross Weight 5.0kg 6.5kg 10.6kg
Packing Size(mm) 660×315×185 770×315×185 800×290×400



Die Casting Aluminum 120w Led Street Lamp Housing For Public Lighiting 0

Die Casting Aluminum 120w Led Street Lamp Housing For Public Lighiting 1

Die-casting Man was founded in 1996 and is located in Ninghai Mould Centre,
close to Ningbo port and Shanghai port.

Factory covers an area of 15,000 square meters and has 100 employees.
We are a professional factory engaged in research,
design, production, sale and service of street light and die-casting injection OEM and ODM products.
 Our products sale mainly
to Europe, Asia and domestic /dəˈmestɪk/ market.

We have die-casting injection, CNC machining, metal punching, powder painting, assembling and testing in house.
Our R&D department will develop 5-10 new products yearly. Besides design and production process,
we work under ISO9001 quality control system to make sure our quality is consistent and well controlled.

Our main products are street light and die-casting OEM injection products.
 Current we have 24 series street light and various customer OEM products.
Our street lights are available from 20W to 240W mainly.
Every series we have small, medium and large size and some have mini version.
If you do not like current version, we can also design the one to meet your market.
We are a company never stand still on products and service.

Die Casting Aluminum 120w Led Street Lamp Housing For Public Lighiting 2

Die Casting Aluminum 120w Led Street Lamp Housing For Public Lighiting 3
