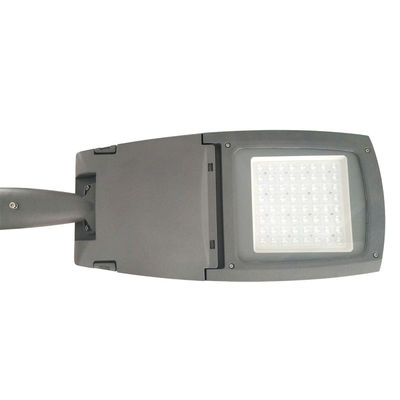

180w ODM Safety Smart Control 305V High Power Led Street Light

180w ODM Safety Smart Control 305V High Power Led Street Light
180w ODM Safety Smart Control 305V High Power Led Street Light
video play

Large Image :  180w ODM Safety Smart Control 305V High Power Led Street Light

Product Details:
Place of Origin: Ningbo China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: SL-14-120
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: styrofoam package and carton box
Delivery Time: 30-40days
Payment Terms: T/T
Supply Ability: 10000PCS/Month.
Detailed Product Description
Power: 180w Input Voltage: AC90-305V
Clr Rendering Index: Ra≥70 Product Size: 922*362*140mm
Packing Size: 980*410*200mm Gross Weight: 10.6kgs
High Light:

305V High Power Led Street Light

,

ODM High Power Led Street Light

,

305V 180w Led Street Light

Enec certified 4000k 180w 50000h high power led street lights for Residential district use



Product Description:



Product name High Quality different colors input wattage 180w IP66 led street light
POWER 180W
Color Temperature 3000/4000/6500K
COLOR Double gray, Sandy black ,Silver
Packing Size 980*410*200mm
Input Voltage AC90-305V
Protection Grade IP66
Clr Rendering index Ra≥70
OEM,ODM Welcome
MOQ no requirement
Sample Lead Time 7-15days
Payment Terms LC at sight or T/T 30% in advance ,balance against shipping documents
FOB NINGBO/SHANGHAI
Production Time 30-40days according to order quantity



YASL-14 family

Model YASL-14 LED lamp is a sample and efficient product that significantly reduces energy, maintenance costs.

One of the features of this lamp is that it does not need tools to replace parts to upgrade it.

Another feature of this lamp is the ability to install horizontally and vertically.

Model YASL-14 LED light is available in three sizes and six light distribution curves from 4500 to 27000 lumens.

The YASL-14 LED lamp with an optical gain of up to 130 lumens per watt has a long life of more than 100,000 hours.

The useful life of this lamp is at least 20 years.



Product Code YASL-14-40 YASL-14-80 YASL-14-120
Input Wattage 40W 80W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 4400-5000lm 9200-10400lm 16500-18750lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -40-50℃ -40-50℃ -40-50℃
Humidity of Working Condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter ⌀60mm ⌀60mm ⌀70mm
Installation Height 4-7m 6-10m 8-12m
Net Weight 4.6kg 6.0kg 9.8kg
Gross Weight 5.0kg 6.5kg 10.6kg
Packing Size(mm) 660×315×185 770×315×185 800×290×400



180w ODM Safety Smart Control 305V High Power Led Street Light 0

180w ODM Safety Smart Control 305V High Power Led Street Light 1

MAJOR BENEFITS

Long life in the harshest weather conditions

Optimal system performance

Modular design (replaceable)

Easy maintenance without screws and tools

Energy optimization and best price commensurate with performance

Rotor (steering part) for horizontal and vertical adjustment of lights

Multiple lenses to facilitate better vision and lighting on different roads


FUNCTIONAL SPECIFICATIONS

Replacement and upgrade of lamp parts without the need for tools

Protection against excessive heat

Power Reduction System

Optical flux control (lumen) depending on the time

Constant light flux (lumen)

180w ODM Safety Smart Control 305V High Power Led Street Light 2
