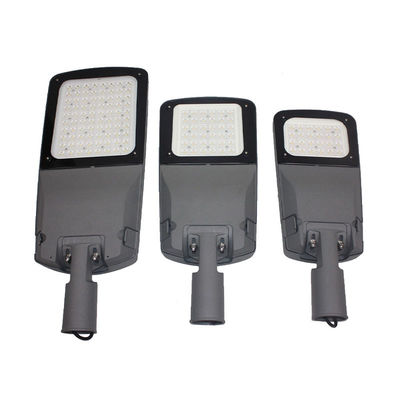

150w Motion Sensor 265V Led Street Light Fixtures

150w Motion Sensor 265V Led Street Light Fixtures
150w Motion Sensor 265V Led Street Light Fixtures 150w Motion Sensor 265V Led Street Light Fixtures 150w Motion Sensor 265V Led Street Light Fixtures

Large Image :  150w Motion Sensor 265V Led Street Light Fixtures

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-19-150
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability: 10000PCS/Month.
Detailed Product Description
Manufacturer: Die Casting Man Material: Aluminum Die Casting Body+ Tempered Glass
Wattage: 150w Fixture Color: Light Grey, Black, White
Input Voltage: AC85 - 265V Frequency Range: 50 - 60Hz
Working Ambient Humidity: 10% - 90% Working Ambient Temperature: -30℃ - 50℃
High Light:

265V Led Street Light Fixtures


265V 150W Street Light Fixture


Led Street Light Fixtures IP66

50000h Road Lighting Fixtures NW Waterproof industrial street light housing


Outdoor Street Light Fixtures 3000-6500K YASL-19

Installing Ways:Both Horizontal and Vertical availableand adjustable angle-15°to 15°
Material:Die casting Aluminum bodyUltra clear tempered glass and PC lens


* Item No.:YASL-19-150


* Input Wattage:150W


* Protection Grade:IP66


* NW/GW:7.4/8.0kgs


* Packing Size:81*34*15.5cm


Product Specification


SL-19-30 SL-19-50 SL-19-80 SL-19-150
30W 50W 80 W 150W
3000-6500K 3000/4000/6500 3000/4000/6500 3000/4000/6500
3300-3750 lm 5500-6250 lm 9200-10400 lm 16500-19500 lm
AC90-305V AC 90-305 V AC 90-305 V AC 90-305 V
50/60Hz 50/60 Hz 50/60 Hz 50/60 Hz
PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
Ra≥70 Ra≥70 Ra≥70 Ra≥70
-40-50℃ -40--50℃ -40--50℃ -40--50℃
20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
50000h 50000 h 50000 h 50000 h
IP66 IP 66 IP 66 IP 66
φ60mm φ60 mm φ60 mm φ70 mm
4-6m 4-6 m 5-8 m 10-12 m
3 kgs 3.5 kgs 5 kgs 6.4 kgs
3.5 kgs 4 kgs 6 kgs 7.4 kgs
51*23.6*15 cm 63*28*15.5 cm 67*31*16 cm 82.5834*16 cm


Product Datasheet
Item No. YASL-19-30 YASL-19-50 YASL-19-80 YASL-19-150
Power 30W 50W 80W 150W
Lumen Efficiency 140lm/w 140lm/w 140lm/w 140lm/w
Lumen 3800lm 6500lm 10400lm 19500lm
Product Size (mm) 459X186X119 577X233X103 627X271X103 768X301X104
Electrical Data
Working Voltage AC100-265V 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20 ~+50 , 10%~90%RH
Lifespan L70 at 25 > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%


Feature of Product


1.Special optical lens with tempered glass cover,make the good light distribution and perfect proof (water proof and dust proof)


2.With Surge Projector to protect lamp from up to 10KV/10KA.


3. Knob type, easy installation and maintenance by turn the switch do not need tools to open or close the light cap.


4.Full die-cast aluminum housing to prevent guano.


5.The mounting angle is adjustable. The lamp can be adjusted ±15 degree.


6.It can be matched with photocell , smart controller, timer,0-10V dimming,DALI etc





Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?

A: Sample needs 5-7 days.


Q3. Do you have any MOQ limit for led light order?

A: Regular 100 MOQ and we accept small order quantity from beginning.


Q4. Do you supply OEM and ODM service

A: Yes. we are.


Q5: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.


Q6: Do you supply empty house only without LED and driver.

A: Yes, we are.



Trading Conditions


1. Payment term: 30% deposit by T/T and 70% before delivery or against Copy of BL.


2. Delivery time:  25 days


3. Samples time:  7 days.


4. Shipping terms: FOB Ningbo.


5. Discounts will be determined by quantity.


6. Welcome distributors to cooperate together.


Lighting Curves:

150w Motion Sensor 265V Led Street Light Fixtures 0

150w Motion Sensor 265V Led Street Light Fixtures 1

150w Motion Sensor 265V Led Street Light Fixtures 2

150w Motion Sensor 265V Led Street Light Fixtures 3
