Product Details:
Payment & Shipping Terms:
|
| Material: | ADC 12 Aluminum | Input Wattaage: | 80~120w |
|---|---|---|---|
| Color Temperature: | 3000/4000/6500K | Color Rendering Index: | Ra≥70 |
| LED Lifetime: | 50000h | Protection Grade: | IP66 IK08 |
| Temperature Of Working Condition: | -40~50℃ | ||
| High Light: | 6500k outdoor led street lights 120w,high luminous led street light,cw waterproof outdoor led street lights |
||
80W 90W 100W 120W

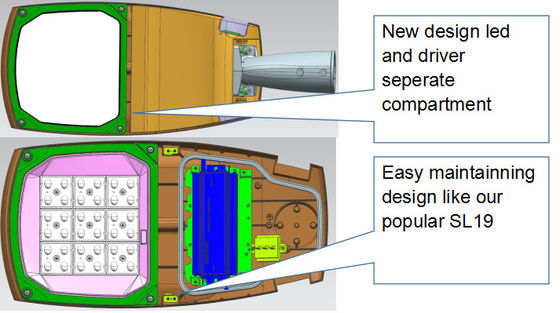

Road Outdoor LED street light housing IP66 Aluminum die-casting housing
| Material: | ADC12 Aluminum | Wattage: | 80~120W |
| IP: | 66 | CRI: | ≥70 |
| Color Temperature: | 3000/40000/6500K | Input Voltage: | AC90 - 265V |
| Frequency Range: | 50 - 60Hz | Working Ambient Temperature: | -40℃ - 50℃ |
| Working Ambient Humidity: | 20% - 90%RH | LED Lifetime: | 50000h |
| Part Number: | YASL-25 |
|---|---|
| Production Lead Time: | 7-30 Days |
| MOQ: | 1 PCS |
| Shipping: | EXW / FOB NINGBO |
| Finish Color: | Double gray;Sandy black; |
| Prodcut Code | YASL-25-100 | YASL-25-150 | YASL-25-240 |
|---|---|---|---|
| Input Wattage | 30W/40W/50W | 60W70W80W | 100W120W/150W |
| Color Temperature | 3000/4000/6500K | 3000/4000/6500K | 3000/4000/6500K |
| Luminous Flux | 5750~6250lm | 11500~12500lm | 16500~18750lm |
| Input Voltage | AC90~305V | AC90~305V | AC90~305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color Rendering Index | Ra≥70 | Ra≥70 | Ra≥70 |
| Working Temperature | -40~50℃ | -40~50℃ | -40~50℃ |
| Humidity of Working Condition | 20%~90%RH | 20%~90%RH | 20%~90%RH |
| LED Lifetime | 50000H | 50000H | 50000H |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | φ60mm | φ60mm | φ70mm |
| Installation Height | 4~8m | 6~10m | 8~12m |
| Net Weight | 3.8kgs | 5.7kgs | 7.20kgs |
| Gross Weight | 4.0kgs | 6.0kgs | 7.50kgs |
| Product Size | 680x270x160mm | 820x320x160mm | 920x370x180mm |
YASL-25-100
Is there anything else you want to know about this lamp?
6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?
A:It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.
A:The brand we usually use is Inventronics,Sosen these China local brand,and ,MEANWELL these international brand,Customers can also specify brands,it’s no problem.
A:The colors we usually use are black and gray,you can also customize other color,just tell us the RAL number,we will according the RAL number to do the powder coating.
A:will not,but we will require MOQ500 pcs.
A:Of course we can,we have own die-casting machine and mould design team,must be able to meet your requirements,and we already have a lot of OEM customers.
Electrical
· Standard AC input of 90-305V,up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing
· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
