Anti Corrosion Impact Resistance Die Casting Housing 30w 50w 100w 200w

Large Image : Anti Corrosion Impact Resistance Die Casting Housing 30w 50w 100w 200w

Product Details:

Place of Origin:	NINGBO,CHINA
Brand Name:	Die Casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	SL-19-30-50-80-150

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	Carton box with foam
Delivery Time:	7-30 days base on order quantity
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Item NO.:	SL-19-30-50-80-150	Power:	30w 50w 80w 150w 200w
Material:	Aluminium And Tempered Glass	Color:	Gray, Black And White
Impact Resistance:	IK09	IP Rating:	IP66
Highlight:	impact resistance die casting housing , die casting housing anti corrosion , 30w die casting housing

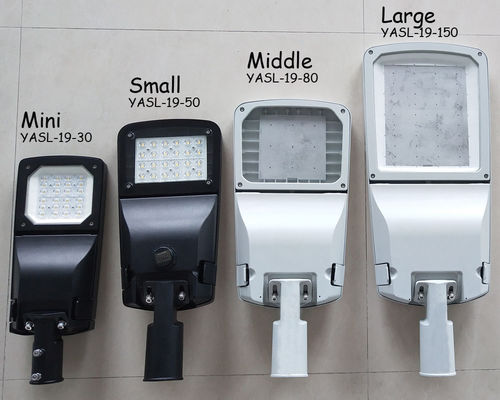

Hot selling 19 series die casting aluminium housing 4 dimensions 30w 50w 100w 200w

Product Specification:

Product Code	ZHSL-19-30	ZHSL-19-50	ZHSL-19-80	ZHSL-19-150
Input Wattage	30W	50W	80 W	150W
Color Temperature	3000-6500K	3000/4000/6500	3000/4000/6500	3000/4000/6500
Luminous Flux	3300-3750 lm	5500-6250 lm	9200-10400 lm	16500-19500 lm
Input Voltage	AC90-305V	AC 90-305 V	AC 90-305 V	AC 90-305 V
Frequency Range	50/60Hz	50/60 Hz	50/60 Hz	50/60 Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
color rendering index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40-50℃	-40--50℃	-40--50℃	-40--50℃
Humidity of Working Condition	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000 h	50000 h	50000 h
Protectin Grade	IP66	IP 66	IP 66	IP 66
Installation Pipe Diameter	φ60mm	φ60 mm	φ60 mm	φ70 mm
Installation Height	4-6m	4-6 m	5-8 m	10-12 m
Net Weight	3 kgs	3.5 kgs	5 kgs	6.4 kgs
Gross Weight	3.5 kgs	4 kgs	6 kgs	7.4 kgs
Packing Size	5123.615 cm	632815.5 cm	673116 cm	82.5834*16 cm

Power	Item No.	LED Type	Lumen	Driver	Surge Protection	PF	Lamp Size
40W	YASL-19-30-40W	3030	100-150lm/W	Inventronics or Sosen or Meanwell	>10KV	>0.95	577233103mm
60W	YASL-19-50-60W	3030	100-150lm/W	Inventronics or Sosen or Meanwell	>10KV	>0.95	577233103mm
80W	YASL-19-80-80W	3030	100-150lm/W	Inventronics or Sosen or Meanwell	>10KV	>0.95	627271103mm
100W	YASL-19-80-100W	3030	100-150lm/W	Inventronics or Sosen or Meanwell	>10KV	>0.95	627271103mm
150W	YASL-19-150-150W	3030	100-150lm/W	Inventronics or Sosen or Meanwell	>10KV	>0.95	768301103mm
200W	YASL-19-150-200W	3030	100-150lm/W	Inventronics or Sosen or Meanwell	>10KV	>0.95	768301103mm

Anti Corrosion Impact Resistance Die Casting Housing 30w 50w 100w 200w 0

Anti Corrosion Impact Resistance Die Casting Housing 30w 50w 100w 200w 1

Anti Corrosion Impact Resistance Die Casting Housing 30w 50w 100w 200w 2

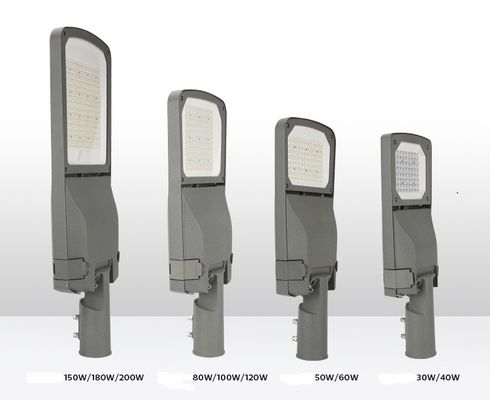

The Plana series of LED streetlights provides a high performance and is available in four sizes.

A benchmark of striking design: direct access to the equipment without any tools, just with the clips on both sides. The cover allows an opening in 90°, and in addition, both bodies may be completely separated thanks to special hinges located in the lower body.

Post-top installation with adjustable angles ±15° (installation diameter of Ø60mm). Structure made of die-casting aluminum, reaching superior efficiency and performance. Equipped with automatic disconnnection, 10KV surge arrester included.

Availability of interchangeable optics, being the III-M type the standard lens. Optionally suitable as well for control and dimming functions, suitable for any application.
