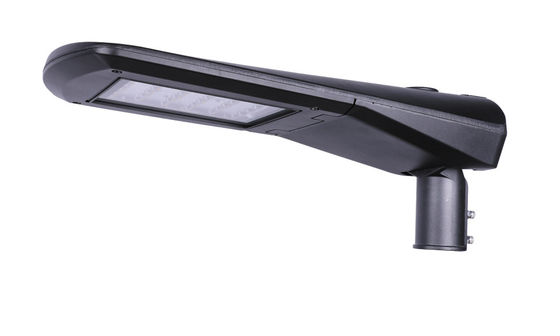

120lm/W 40W Famous Brand Driver Die Casting Aluminum Waterproof Led Street Light
120lm/W 40W Die Casting Aluminum Waterproof Led Street Light
Item NO.: YASL-11
Production Description:
- SL-11 series is a high-performance street lighting available in three sizes. The luminaire is manufactured from high pressure die-casting aluminum.
- It shall have a led efficiency up to 120 lm/w and will be capable of producing up to 18000 luminaire lumens at 4000K finished in Grey or black as standard.
Technical Datas:
| Item NO. |
ZHSL-11-30 |
ZHSL-11-50 |
ZHSL-11-120 |
| |
Warm White |
Neutral White |
Day Light |
| LED Lifetime |
50000h |
50000h |
50000h |
| Color Temperature |
3000K |
4000-4500K |
6000-6500K |
| Luminous Flux Output |
3000LM |
5000LM |
12000LM |
| LED Quantity (with LG Led) |
24pcs |
24pcs |
60pcs |
| Power Factor (with Inventronics Power Supply) |
PF≥0.95 |
PF≥0.95 |
PF≥0.95 |
| Input Voltage ((with Inventronics Power Supply) |
AC 100-240V |
AC 100-240V |
AC 100-240V |
| Color Rendering Index (CRI) |
Ra>70 |
Ra>70 |
Ra>70 |
| International Protection Marking (IP code) |
IP65 |
IP65 |
IP65 |
| Impact resistance (glass) (IK code) |
IK08 |
IK08 |
IK08 |
| Frecquency Range (with Inventronics Power Supply) |
50/60Hz |
50/60Hz |
50/60Hz |
| Temperature of Working Condition |
-40℃ - 50℃ |
-40℃ - 50℃ |
-40℃ - 50℃ |
| Surge protection to preserve the luminaire from voltage spikes (in kV) |
10kV |
10kV |
10kV
|
Drawing picture:
lnstalling Ways:
Both Horizontal and Vertical available, and adjustable angle-10°to+10°
Material:
Die casting aluminum body,
Ultra clear tempered glass and PC lens
Photometric Data
Company profile
* A professional origin die casting manufacturer of led outdoor light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City
* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* 5-7years guarantee
* ODM and OEM service are both available to customers domestic and overseas.
