Product Details:
Payment & Shipping Terms:
|
| Material: | ADC 12 Aluminum | Input Wattaage: | 100~300W |
|---|---|---|---|
| Color Temperature: | 3000/4000/6500K | LED Lifetime: | 50000h |
| Protection Grade: | IP66 IK08 | Temperature Of Working Condition: | -40~50℃ |
| Power Factor: | PF≥0.95 | Installation Pipe Diameter: | φ60~70mm |
| High Light: | 120w Outdoor LED Street Lights,IP66 Waterproof 150W Street Light,High Lumen 150W Street Light |
||

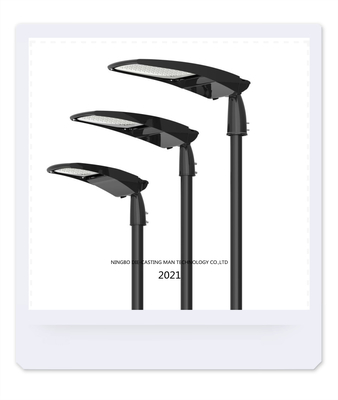

120w Led Street Light High Lumen IP66 Waterproof Outdoor Lamp 150W Street Light
100W 120W 150W 180W 200W 240W 250W 300W
Road Outdoor LED street light housing IP66 Aluminum die-casting housing
*For this series, we designed total of three sizes models, to deal with three different wattage requirements,The minimum power can be 100 watts, the maximum can reach 300 watts.
Prodcut Specification
| Material: | ADC12 Aluminum | Wattage: | 200~300W |
| IP: | 66 | CRI: | ≥70 |
| Color Temperature: | 3000/40000/6500K | Input Voltage: | AC90 - 265V |
| Frequency Range: | 50 - 60Hz | Working Ambient Temperature: | -40℃ - 50℃ |
| Working Ambient Humidity: | 20% - 90%RH | LED Lifetime: | 50000h |
| Part Number: | YASL-25 |
|---|---|
| Production Lead Time: | 7-30 Days |
| MOQ: | 1 PCS |
| Shipping: | EXW / FOB NINGBO |
| Finish Color: | Double gray;Sandy black; |
| Prodcut Code | YASL-25-100 | YASL-25-150 | YASL-25-240 |
|---|---|---|---|
| Input Wattage | 30W/40W/50W | 60W70W80W | 100W120W/150W |
| Color Temperature | 3000/4000/6500K | 3000/4000/6500K | 3000/4000/6500K |
| Luminous Flux | 5750~6250lm | 11500~12500lm | 16500~18750lm |
| Input Voltage | AC90~305V | AC90~305V | AC90~305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color Rendering Index | Ra≥70 | Ra≥70 | Ra≥70 |
| Working Temperature | -40~50℃ | -40~50℃ | -40~50℃ |
| Humidity of Working Condition | 20%~90%RH | 20%~90%RH | 20%~90%RH |
| LED Lifetime | 50000H | 50000H | 50000H |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | φ60mm | φ60mm | φ70mm |
| Installation Height | 4~8m | 6~10m | 8~12m |
| Net Weight | 3.8kgs | 5.7kgs | 7.20kgs |
| Gross Weight | 4.0kgs | 6.0kgs | 7.50kgs |
| Product Size | 680x270x160mm | 820x320x160mm | 920x370x180mm |
YASL-25 Size:
Is there anything else you want to know about this lamp?
1. Q:What is the waterproof rating?
A: It’s can pass IP66
2. Q:How many years of warranty do you promise?
A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.
3. Q:What is the grade of your powder coating?
A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.
4. Q:What's the packing you use?
A: Our packing is PE bags with foam and carton box,we will ensure it safe.
5. Q:What is your usual lead time?
A: 25 days for regular products, 10 days extra for special requirements.
6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?
A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.
7. Q:What brand of driver do you use?
A: The brand we usually use is Inventronics,Sosen these China local brand,and ,MEANWELL these international brand,Customers can also specify brands,it’s no problem.
8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?
A: The colors we usually use are black and gray,you can also customize other color,just tell us the RAL number,we will according the RAL number to do the powder coating.
9. Q:Ok,that’s good,So if I want to specify a color,will you charge extra cost?
A: will not,but we will require MOQ500 pcs.
10. Q:ok,last question,Do you accept OEM?
A: Of course we can,we have own die-casting machine and mould design team,must be able to meet your requirements,and we already have a lot of OEM customers.
Electrical
· Standard AC input of 90-305V,up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing
· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
