Outdoor Led Garden Lights Die Casting Body Waterproof 30 - 120W

Outdoor Led Garden Lights Die Casting Body Waterproof 30 - 120W
Outdoor Led Garden Lights Die Casting Body Waterproof 30 - 120W Outdoor Led Garden Lights Die Casting Body Waterproof 30 - 120W

Large Image :  Outdoor Led Garden Lights Die Casting Body Waterproof 30 - 120W

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: UB-09-90B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: 1pc / polyester bag / carton with EPE protection
Delivery Time: 5-7days for sampling, 30-35days for mass production
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per month
Detailed Product Description
Material: Die-casting Aluminium Wattage: 30w 40w 50w 60w 80w 120w
IP Grade: IP66 Impact Resistance: IK08
Body Color: Black, Gray, White Product Size (mm): 545*490*713
High Light:

Die Casting Outdoor Led Garden Lights

,

120W Outdoor Led Garden Lights

,

Outdoor Led Garden Lights IP66

30-120W LED garden light Die-casting body waterproof lighting fixtures



Product Description



This 30-120W LED garden light Die-casting body waterproof lighting fixtures.

2021 new design with CE IP66 5years warranty,it was made up with die-casting

body+three-arms+die-casting aluninum hear sink on the top.



Product Material



*Die casting aluminum body

*Ultra clear tempered glass and PC lens



Product Code YAUB-09-90B
Input Wattage 30W 55W 80W 100W 120W
Color Temperature 27006500K 27006500K 27006500K 27006500K 27006500K
Luminous Flux 42004500lm 7700-8250lm 11200-12000lm 13000-15000lm 15000-17400lm
Input Voltage AC90305V AC90305V AC90305V AC90305V AC90305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -4050 -4050 -4050 -4050 -4050
Humidity of Working Condition 20%90%RH 20%90%RH 20%90%RH 20%90%RH 20%90%RH
LED Lifetime 50000h 50000h 50000h 50000h 50000h
Protectin Grade IP66 IP66 IP66 IP66 IP66
Protection level IK08/09/10 IK08/09/10 IK08/09/10 IK08/09/10 IK08/09/10
Installation Pipe Diameter φ10-18mm φ10-18mm φ10-18mm φ10-18mm φ10-18mm
Installation Height 3-4m 3-4m 4-5m 4-5m 4-6m
Net Weight 6.0kgs 6.0kgs 6.0kgs 6.0kgs 6.0kgs
Gross Weight 6.5kgs 6.5kgs 6.5kgs 6.5kgs 6.5kgs
Product Size(m m) 545*465*715 545*490*713 545*490*713 545*490*713 545*490*713
Packing Size(m m) 550*520*245 550*520*245 550*520*245 550*520*245 550*520*245





Photometric



DH-T1 DH-T3-M DH-T4-M DY-T3-M GY-T2-M01 GX-T2-M GX-T4-L HX-T2-S
DH-T2-L DH-T3-MA DH-T5-M GY-T1-M GY-T3-M01 GX-T3-M HY-T2-M HX-T2-M
DH-T2-M DH-T3-MB DY-T2-M GY-T2-M GX-T2-S GX-T4-M HY-T3-M HX-T3-M

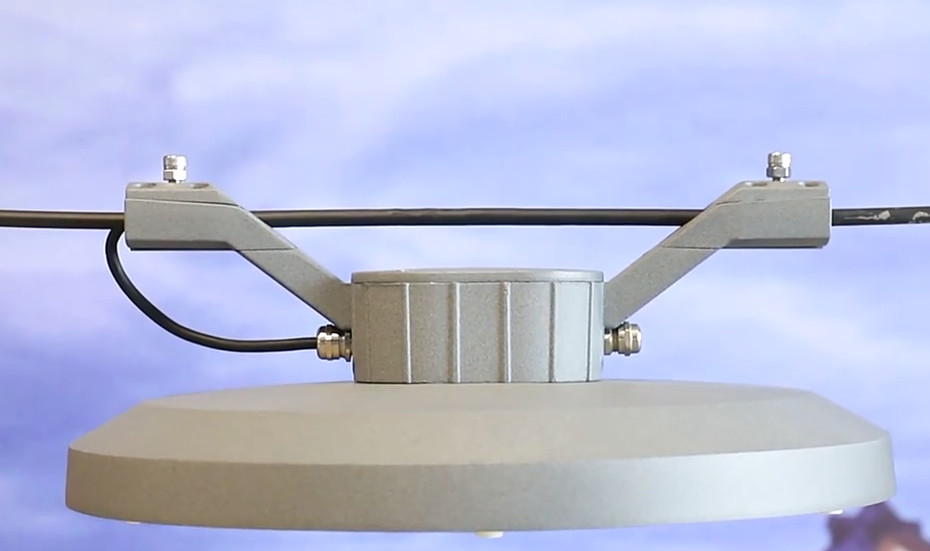

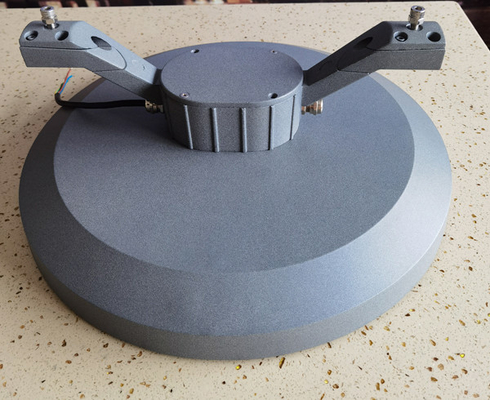

Product Photo



Outdoor Led Garden Lights Die Casting Body Waterproof 30 - 120W 0





Equipment

ZHSL-14-80 Empty Housing LED Street Light Fixtures 60mm Pole With Die - Casing Aluminium



Company profile



Ningbo Die-casting Man Techonology Co.,LTD. was founded in 1996 and is located in Ninghai Mould Centre,

close to Ningbo port and Shanghai port.

Factory covers an area of 15,000 square meters and has 100 employees.

We are a professional factory engaged in research, design, production, sale and service of street light

and die-casting injection OEM and ODM products. Our products sale mainly to Europe, Asia and domestic /dəˈmestɪk/ market.

We have die-casting injection, CNC machining, metal punching, powder painting, assembling and testing in house. Our R&D department will develop 5-10 new products yearly. Besides design and production process, we work under ISO9001 quality control system to make sure our quality is consistent and well controlled.

Our main products are street light and die-casting OEM injection products. Current we have 24 series street light and various customer OEM products. Our street lights are available from 20W to 240W mainly. Every series we have small, medium and large size and some have mini version. If you do not like current version, we can also design the one to meet your market.

We are a company never stand still on products and service.
