80W 120W UFO High Bay Lights Waterproof EC Certification

80W 120W UFO High Bay Lights Waterproof EC Certification
80W 120W UFO High Bay Lights Waterproof EC Certification 80W 120W UFO High Bay Lights Waterproof EC Certification 80W 120W UFO High Bay Lights Waterproof EC Certification

Large Image :  80W 120W UFO High Bay Lights Waterproof EC Certification

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE ROHS ENEC
Model Number: YASL-25-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD28/PCS
Packaging Details: PE bag+bubble+carton
Delivery Time: 25 days
Supply Ability: 30pcs/per day
Detailed Product Description
Input Wattaage: 80~200w Lifetime: 50000h
Waterproof Grade: IP66 Color Temperature: 3000k 4000k 5000k 6500k
IK Grade: IK08 Humidity Of Working Condition: 10%~90%RH
Color Rendering Index: Ra70~80 Working Temperature: -40~50℃
High Light:

EC Certification UFO High Bay Lights


120W UFO High Bay Lights


80 Watt UFO High Bay Lights

Highbay light 80W 120W watt EC certification led ufo high bay


First of all, please allow me to introduce our company Ningbo die-casting man to you,

Die-casting Man is one of the lighting manufacturers with design ,development and production. We understand that lighting technology has to be practical,so we always design and develop with our customers needs in mind.

For this series, we designed total of three sizes models, to deal with three different wattage requirements,The minimum power can be 80 watts, the maximum can reach 200 watts.


Part Number: YAHB-05
Production Lead Time: 7-30 Days
Shipping: EXW / FOB NINGBO
Finish Color: Double gray;Sandy black;



















Prodcut Specification

Prodcut Code YAHB-05-100 YAHB-05-150 YAHB-05-200
Input Wattage 80W/100W/120W 150W/160W 180W/200W
Color Temperature 3000/4000/6500K 3000/4000/6500K 3000/4000/6500K
Luminous Flux 12000~14000lm 18000~19600lm 24000~28000lm
Input Voltage AC90~305V AC90~305V AC90~305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color Rendering Index Ra≥70 Ra≥70 Ra≥70
Working Temperature -40~50℃ -40~50℃ -40~50℃
Humidity of Working Condition 20%~90%RH 20%~90%RH 20%~90%RH
LED Lifetime 50000H 50000H 50000H
Protection Grade IP66 IP66 IP66
Net Weight 3.5kgs 4.8kgs 6.50kgs
Gross Weight 4.5kgs 5.8kgs 7.5kgs
Product Size 295x295x165mm 355x355x165mm 415x415x175mm

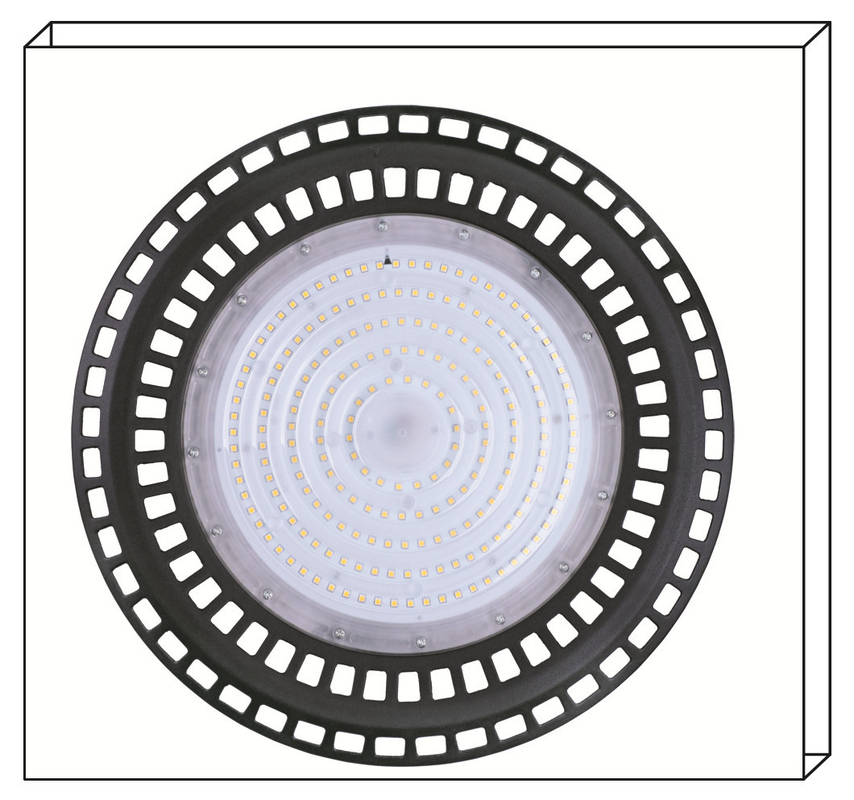

80W 120W UFO High Bay Lights Waterproof EC Certification 0

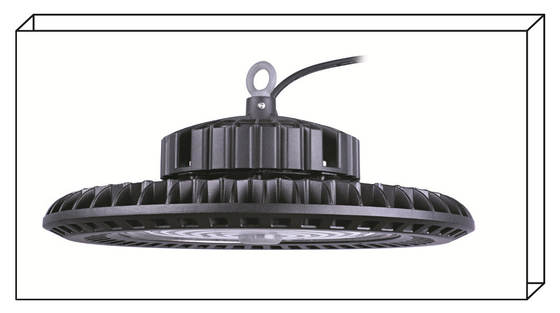

80W 120W UFO High Bay Lights Waterproof EC Certification 1

Is there anything else you want to know about this lamp?
1. Q:What is the waterproof rating?
A: It’s can pass IP66
2. Q:How many years of warranty do you promise?
A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.
3. Q:What is the grade of your powder coating?
A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.
4. Q:What's the packing you use?
A: Our packing is PE bags with foam and carton box,we will ensure it safe.
5. Q:What is your usual lead time?
A: 25 days for regular products, 10 days extra for special requirements.

6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?
A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.
7. Q:What brand of driver do you use?
A: The brand we usually use is Inventronics,Sosen these China local brand,and PHILIPS,MEANWELL these international brand,Customers can also specify brands,it’s no problem.
8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?
A: The colors we usually use are black and gray,you can also customize other color,just tell us the RAL number,we will according the RAL number to do the powder coating.
9. Q:Ok,that’s good,So if I want to specify a color,will you charge extra cost?
A: will not,but we will require MOQ500 pcs.
10. Q:ok,last question,Do you accept OEM?
A: Of course we can,we have own die-casting machine and mould design team,must be able to meet your requirements,and we already have a lot of OEM customers.

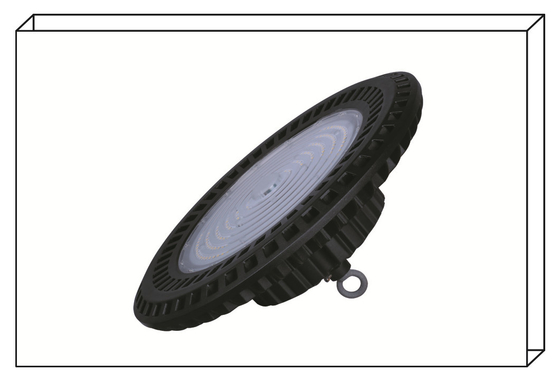

80W 120W UFO High Bay Lights Waterproof EC Certification 2


· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation


· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available

80W 120W UFO High Bay Lights Waterproof EC Certification 3
