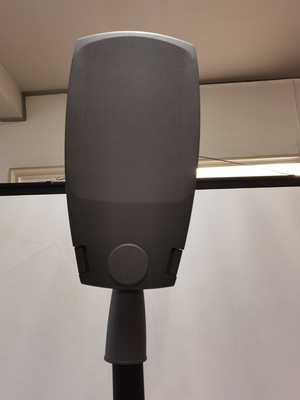

Aluminium Outdoor LED Street Lights With Dimming Driver ADC12 160lm / W

Aluminium Outdoor LED Street Lights With Dimming Driver ADC12 160lm / W
Aluminium Outdoor LED Street Lights With Dimming Driver ADC12 160lm / W
video play

Large Image :  Aluminium Outdoor LED Street Lights With Dimming Driver ADC12 160lm / W

Product Details:
Place of Origin: Ningbo China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: SL-25-40M
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton box with styrofoam package
Delivery Time: 7-40 days base on order quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Model: SL-25-40M Power: 40W
Installation Pipe Diameter: φ45/60mm Input Voltage: 90~305Vac
Led Chip: 3030 Or 5050 Driver: Inventronics, MOSO, SOSEN
High Light:

Dimming Led Street Lamp


Aluminium Outdoor LED Street Lights


ADC12 Smart Street Light

型号 Model SL-25-40M SL-25-100M SL-25-150M SL-25-240M
输出功率 Input Wattage (W) 30/40/50/60 80/100/120 150/180/200 240/300
安装杆径 Installation Pipe Diameter φ45/60mm φ45/60mm φ45/60mm φ60/70mm
安装高度 Installation Height (m) 3-8 6-10 8-12 10-14
输入电压 Input Voltage 90~305Vac
频率范围 Frequency Range 50/60Hz
功率因素 Power Factor ≥0.9
光源 Light source LED
电源 Driver Inventronics
Meanwell (optional)
other brand of driver(upon request)
发光效率 Luminaire efficacy (lm/W) 130-170
色温 Color Temperature 4000
显色指数 Color rendering index ≥70
调光方式 Diming Dali (optional)
1-10V (optional)
PWM (optional)
Smart control management system (upon request)
环境温度 The environment temperature -40~45℃
环境湿度 Humidity of Working Condition 20%~90%RH
防护等级 Protectin Grade IP66
IK等级 Protection level IK08
认证Standards & Certifications ENEC
可选配件Options Photocell
Surge protection
External cable (length upon request)
Smart control device
材质Meterials Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
External Screws: 304 stainless screws
外观颜色Color Grey/Black ( other upon request)



Product Specification:


Model Product size (mm) Packing size (mm) G.W N.W
L W H L W H (kgs) (kgs)
YSSL-25-40 555 210 143 600 260 165 2.9 3.4
YSSL-25-100 645 257 147 680 270 160 3.8 4
YSSL-25-150 790 305 147 820 320 160 5.7 6
YSSL-25-200 890 361 163 970 370 180 7.2 7.5
  • Luminaire made of die-cast aluminum, closed by tempered glass in order to ensure the IP and protect the characteristics of lenses used.
  • Access to electrical components without need of special tools, pressing locking system, which facilitates maintenance. Hidden hinge system.
  • Post top or side entry Ø 60 mm with the possibility of adjusting the inclination. Other fixing needs please
  • consult.
  • Luminaire Class I. Optional Class II
  • Luminaire IP66, IK09
  • LED version available from 20W to 260W.
  • Finished in any RAL color.
  • Characteristics of the optical group:
  • High performance inner aluminium heatsink
  • Number of LED 16-24-32-48-60-80- 96-112
  • Lenses Integrated with several asymmetric or symmetric distributions available according to the project needs.
  • Luminaire efficacy from 100 to 140lm/W


    It is suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
