Led Square Street Light Housing Waterproof IP66 IK08 High Luminous Efficacy

Led Square Street Light Housing Waterproof IP66 IK08 High Luminous Efficacy
Led Square Street Light Housing Waterproof IP66 IK08 High Luminous Efficacy
video play

Large Image :  Led Square Street Light Housing Waterproof IP66 IK08 High Luminous Efficacy

Product Details:
Place of Origin: China
Brand Name: Die casting man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-19-80
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam filing/pc
Delivery Time: 35days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/Month.
Detailed Product Description
Input Wattage: 50~60W Efficiency: >140lm/w
Voltage: AC90-305V Packing Details: With Strofoam Package
Standards & Certifications: CE ENEC Color: Grey/Black ( Other Upon Request)
High Light:

Waterproof Square Street Light Housing

,

High Luminous Led Light Housing

,

IK08 Led Street Light Casing

Square led Street Light wateproof IP66 IK08 high luminous efficacy



30W 40W 50W 60W 80W 100W  120W  150W
Road Outdoor LED street light housing IP66 Aluminum die-casting housing

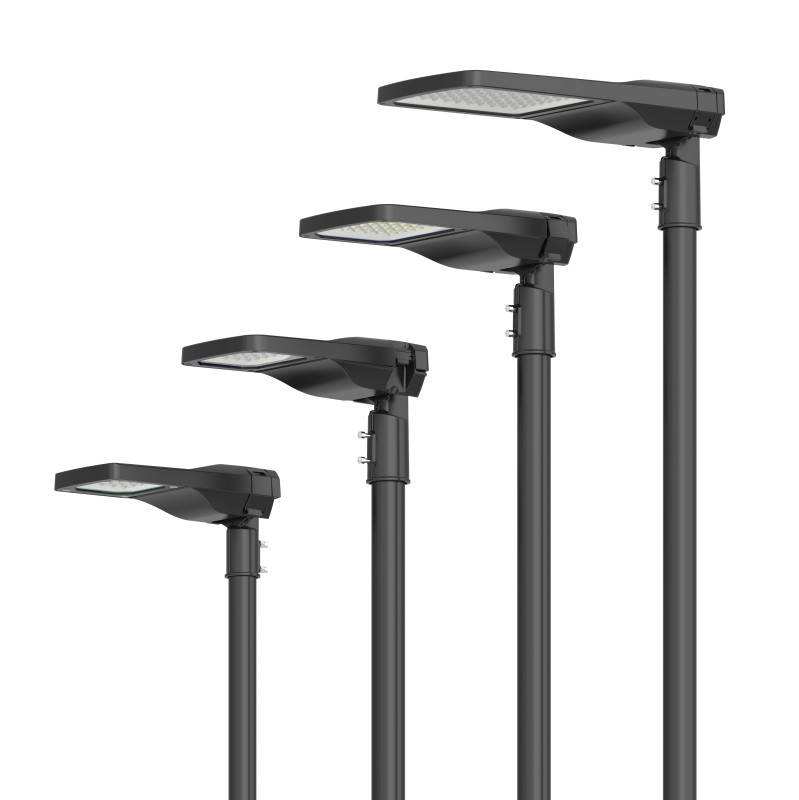

What I'm showing you now is the street light that we developed this year, the SL-19 series,For this series, we designed total of three sizes models, to deal with three different wattage requirements,The minimum power can be 30watts, the maximum can reach 180 watts.



Products Description

Product Datasheet
Item No. YASL-19-30 YASL-19-50 YASL-19-80 YASL-19-150
Power 30W 50W 80W 150W
Lumen Efficiency 140lm/w 140lm/w 140lm/w 140lm/w
Lumen 3800lm 6500lm 10400lm 19500lm
Product Size (mm) 459X186X119 577X233X103 627X271X103 768X301X104
Electrical Data
Working Voltage AC100-265V 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20 ~+50 , 10%~90%RH
Lifespan L70 at 25 > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%



Material: Hign pressure die-cast aluminum Wattage: 30~150W
IP: 66 CRI: ≥70
Color Temperature: 3000/40000/6500K Input Voltage: AC90 - 265V
Frequency Range: 50 - 60Hz Working Ambient Temperature: -40℃ - 50℃
Working Ambient Humidity: 20% - 90%RH LED Lifetime: 50000h


Led Square Street Light Housing Waterproof IP66 IK08 High Luminous Efficacy 0


Is there anything else you want to know about this lamp?



1. Q:What is the waterproof rating?

A: It’s can pass IP66

2. Q:How many years of warranty do you promise?

A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.

3. Q:What is the grade of your powder coating?

A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.

4. Q:What's the packing you use?

A: Our packing is PE bags with foam and carton box,we will ensure it safe.

5. Q:What is your usual lead time?

A: 25 days for regular products, 10 days extra for special requirements.

6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?

A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.

7. Q:What brand of driver do you use?

A: The brand we usually use is Inventronics,Sosen these China local brand,and ,MEANWELL these international brand,Customers can also specify brands,it’s no problem.

8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?

A: The colors we usually use are black and gray,you can also customize other color,just tell us the RAL number,we will according the RAL number to do the powder coating.

9. Q:Ok,that’s good,So if I want to specify a color,will you charge extra cost?

A: will not,but we will require MOQ500 pcs.

10. Q:ok,last question,Do you accept OEM?

A: Of course we can,we have own die-casting machine and mould design team,must be able to meet your requirements,and we already have a lot of OEM customers.
