Smart Sensor Square Led Street Lamp Power 180W 145lm/W

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

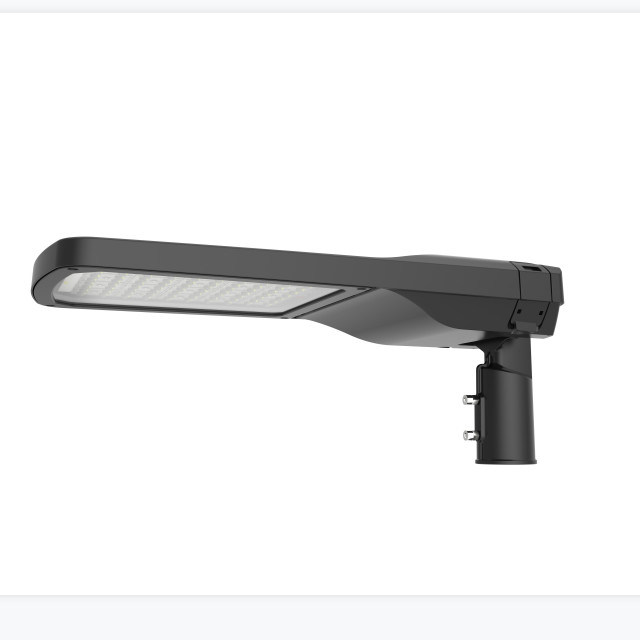

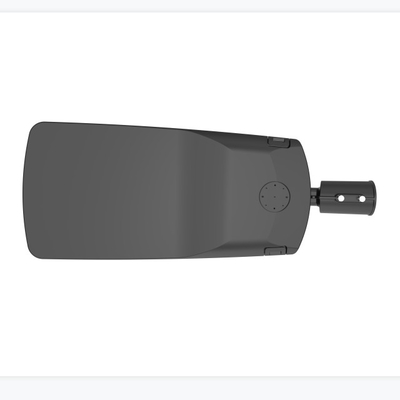

Smart Sensor Square Led Street Lamp Power 180W 145lm/W

Smart Sensor Square Led Street Lamp Power 180W 145lm/W
Smart Sensor Square Led Street Lamp Power 180W 145lm/W
video play

Large Image :  Smart Sensor Square Led Street Lamp Power 180W 145lm/W

Product Details:
Place of Origin: China
Brand Name: Die casting man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-19-150
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam filing/pc
Delivery Time: 35days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/Month.
Detailed Product Description
Input Wattage: 50~60W Efficiency: >140lm/w
Voltage: AC90-305V IP: 66
Package: 1pcs/carton Packing Details: With Strofoam Package
Standards & Certifications: CE ENEC Color: Grey/Black ( Other Upon Request)
Color Temperature: 3000k 4000k 5000k 6500k Color Rendering Index: ≥70
High Light:

Led Street Lamp Casing

,

Smart Sensor Led Street Lamp Housing

,

Square Led Street Light Casing 180W

ZHAGA Smart sensor Square led Street lamp big power 150W 180W 145lm/w



What I'm showing you now is the street light that we developed this year, the SL-19 series,For this series, we designed total of three sizes models, to deal with three different wattage requirements,The minimum power can be 30watts, the maximum can reach 180 watts.

Smart Sensor Square Led Street Lamp Power 180W 145lm/W 0



Products Description

Product Datasheet
Item No. YASL-19-30 YASL-19-50 YASL-19-80 YASL-19-150
Power 30W 50W 80W 150W
Lumen Efficiency 140lm/w 140lm/w 140lm/w 140lm/w
Lumen 3800lm 6500lm 10400lm 19500lm
Product Size (mm) 459X186X119 577X233X103 627X271X103 768X301X104
Electrical Data
Working Voltage AC100-265V 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20 ~+50 , 10%~90%RH
Lifespan L70 at 25 > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%

Smart Sensor Square Led Street Lamp Power 180W 145lm/W 1

Smart Sensor Square Led Street Lamp Power 180W 145lm/W 2



Is there anything else you want to know about this lamp?



1. Q:What is the waterproof rating?

A: It’s can pass IP66

2. Q:How many years of warranty do you promise?

A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.

3. Q:What is the grade of your powder coating?

A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.

4. Q:What's the packing you use?

A: Our packing is PE bags with foam and carton box,we will ensure it safe.

5. Q:What is your usual lead time?

A: 25 days for regular products, 10 days extra for special requirements.

6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?

A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.

7. Q:What brand of driver do you use?

A: The brand we usually use is Inventronics,Sosen these China local brand,and PHILIPS,MEANWELL these international brand,Customers can also specify brands,it’s no problem.

8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?

Smart Sensor Square Led Street Lamp Power 180W 145lm/W 3
