OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum

Large Image : OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum

Product Details:

Place of Origin:	China
Brand Name:	Die Casting Man/OEM
Certification:	Roth
Model Number:	ZHSL-04-80

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	Carton box
Delivery Time:	7-30 days base on order quantity
Payment Terms:	By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability:	10000PCS/Month.

Contact Now

Detailed Product Description

Material:	Die Casting Aluminum	Wattage:	80W
CCT:	3000-6500K	Lumen:	9600lm
Installation Pipe Dia.:	φ60mm	IP:	66
Highlight:	street light housing , led street light enclosure

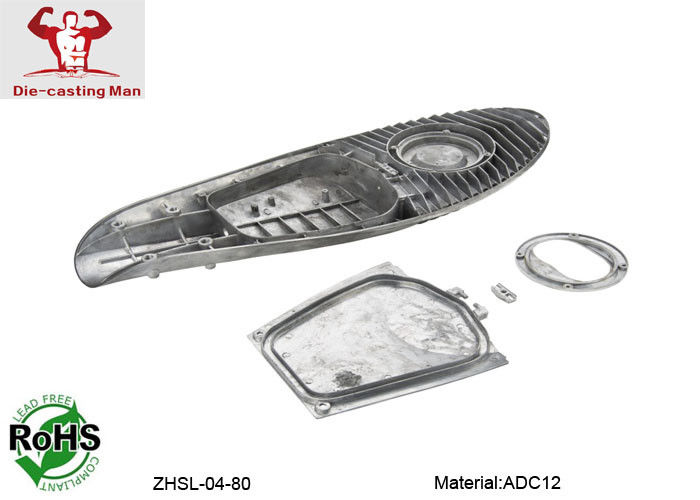

ADC12 Die Casting 80W Outdoor LED Street Light Housing / Street Lighting Fixture

Product Specification:

Product Code	ZHSL-04-80	ZHSL-04-120	ZHSL-04-180
Input Wattage	80W	120W	180W
Color Temperature	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	8800-9600lm	13200-14400lm	19800-21600lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70
Temperature of working condition	-40-50℃	-40-50℃	-40-50℃
Humidity of working condition	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66
Installation Pipe Diameter	Φ60mm	Φ60mm	Φ60mm
Installation Height	6-8m	8-12m	10-14m
Net Weight	5.0kgs	7.5kgs	11.5kgs
Gross Weight	5.4kgs	8.0kgs	12.5kgs
Packing Size(mm)	705290160	860330160	1005400185
Product Size(mm)	650237121	800291131	950347155

Applications:

Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.

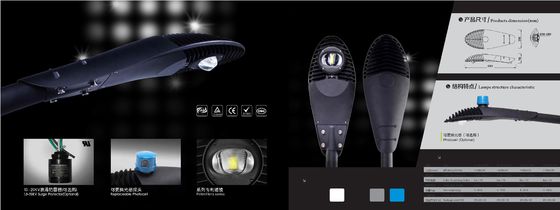

OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum 0

OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum 1

OEM Super Bright LED Street Light Housing Die Casting with ADC12 Aluminum 2

We are a professional Die casting factory for around 30years.

If you are importing lighting fixture,of sure our company will be a good option for you since:

1)we can use the material according to your component request.

2)we are die-casting manufacturer for around 30year, we are professional on lighting design and the quality and cost control.

3)we have profession engineer to make sure the design of the housing or the technical date of the product is meet your requirement.

make your idea/drawing to be truth.

4)we are a lighting industrial park,so we can offer the best delivery for you.

5)we have good experience on assembling and exporting lighting fixture for around 10 years,so can offer you very good service.
