| Input Wattaage: | 50~150w | Color Temperature: | 3000/4000/6500K |
|---|---|---|---|
| Color Rendering Index: | Ra≥70 | LED Lifetime: | 50000h |
| Protection Grade: | IP66 IK08 | Temperature Of Working Condition: | -40~50℃ |
| Power Factor: | PF≥0.95 | Input Voltage: | 90~305Vac |
| Frequency Range: | 50/60Hz | Light Source: | LED |
| High Light: | Aluminum Led Light Housing Outdoor,Smart Sensor Outside Street Lights Housing,Outdoor Street Light Housing 220v |
||

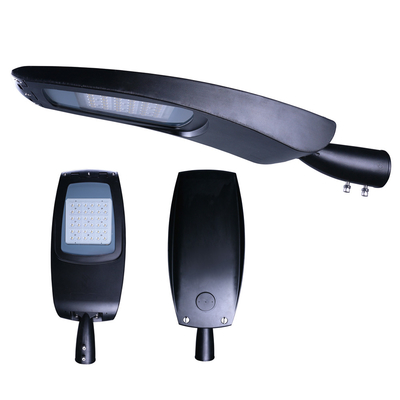

Smart Sensor Led street Lights 220v die-castinting aluminum housing new
50W 60W 70W 80W 90W 100W 120W 150W
First of all, please allow me to introduce our company Ningbo die-casting man to you,
Die-casting Man is one of the lighting manufacturers with design ,development and production. We understand that lighting technology has to be practical,so we always design and develop with our customers needs in mind.
Prodcut Specification
| Material: | Die-casting Aluminum | Wattage: | 50~150W |
| IP: | 65 | CRI: | ≥70 |
| Color Temperature: | 3000/40000/6500K | Input Voltage: | AC90 - 265V |
| Frequency Range: | 50 - 60Hz | Working Ambient Temperature: | -40℃ - 50℃ |
| Working Ambient Humidity: | 20% - 90%RH | LED Lifetime: | 50000h |
| Prodcut Code | YASL-13-50 | YASL-13-100 | YASL-1 |
|---|---|---|---|
| Input Wattage | 30W/40W/50W | 60W70W80W | 100W120W/150W |
| Color Temperature | 3000/4000/6500K | 3000/4000/6500K | 3000/4000/6500K |
| Luminous Flux | 5750~6250lm | 11500~12500lm | 16500~18750lm |
| Input Voltage | AC90~305V | AC90~305V | AC90~305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color Rendering Index | Ra≥70 | Ra≥70 | Ra≥70 |
| Working Temperature | -40~50℃ | -40~50℃ | -40~50℃ |
| Humidity of Working Condition | 20%~90%RH | 20%~90%RH | 20%~90%RH |
| LED Lifetime | 50000H | 50000H | 50000H |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | φ60mm | φ60mm | φ70mm |
| Installation Height | 4~8m | 6~10m | 8~12m |
| Net Weight | 3.9kgs | 5.4kgs | 9.8kgs |
| Gross Weight | 4.6kgs | 6.5kgs | 11.50kgs |
| Product Size | 695x285x130mm | 790x340x135mm | 970x415x180mm |
Electrical
· Standard AC input of 90-305V,up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing
· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
