NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsOutdoor Led Garden Lights

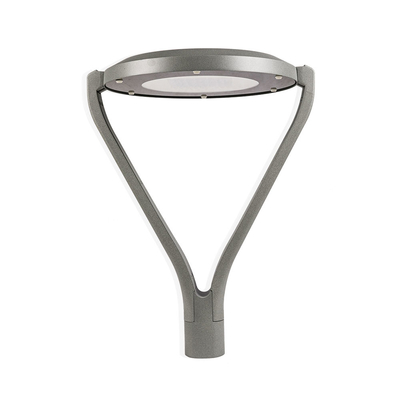

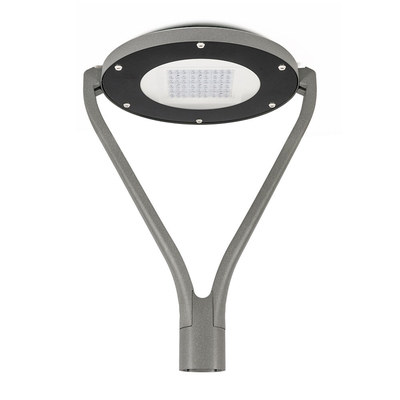

Smart 30w Outdoor Garden Lights symetrical For Park And Scope Street Lamp

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

Smart 30w Outdoor Garden Lights symetrical For Park And Scope Street Lamp

Smart 30w Outdoor Garden Lights symetrical For Park And Scope Street Lamp
Smart 30w Outdoor Garden Lights symetrical For Park And Scope Street Lamp
video play

Large Image :  Smart 30w Outdoor Garden Lights symetrical For Park And Scope Street Lamp

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: UB-09-90A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: 1pc / polyester bag / carton with EPE protection
Delivery Time: 5-7days for sampling, 30-35days for mass production
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per month
Detailed Product Description
Material: Die-casting Aluminium Power: 30w 60w
Optic: Symetrical Protection Grade: IK08 And IP66
LED: 3030 Or 5050 Application: Garden And Parks
High Light:

Smart Outdoor Garden scope Street Light

,

30w Outdoor Garden Street Light

,

IK08 Garden Street Light

pole top outdoor urban light with smart motion sensor for public lighting

Product Description:



Product Code YAUB-09-90A
Input Wattage 30W 55W 80W 100W 120W
Color Temperature 2700~6500K 2700~6500K 2700~6500K 2700~6500K 2700~6500K
Luminous Flux 4200~4500lm 7700-8250lm 11200-12000lm 13000-15000lm 15000-17400lm
Input Voltage AC90~305V AC90~305V AC90~305V AC90~305V AC90~305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -40~50℃ -40~50℃ -40~50℃ -40~50℃ -40~50℃
Humidity of Working Condition 20%~90%RH 20%~90%RH 20%~90%RH 20%~90%RH 20%~90%RH
LED Lifetime 50000h 50000h 50000h 50000h 50000h
Protectin Grade IP66 IP66 IP66 IP66 IP66
Protection level IK08/09/10 IK08/09/10 IK08/09/10 IK08/09/10 IK08/09/10
Installation Pipe Diameter φ60/76mm φ60/76mm φ60/76mm φ60/76mm φ60/76mm
Installation Height 3-4m 3-4m 4-5m 4-5m 4-6m
Net Weight 6.0kgs 6.0kgs 6.0kgs 6.0kgs 6.0kgs
Gross Weight 6.5kgs 6.5kgs 6.5kgs 6.5kgs 6.5kgs
Product Size(m m) 545*465*715 545*465*715 545*465*715 545*465*715 545*465*715
Packing Size(m m) 550*520*245 550*520*245 550*520*245 550*520*245 550*520*245



Photometric



DH-T1 DH-T3-M DH-T4-M DY-T3-M GY-T2-M01 GX-T2-M GX-T4-L HX-T2-S
DH-T2-L DH-T3-MA DH-T5-M GY-T1-M GY-T3-M01 GX-T3-M HY-T2-M HX-T2-M
DH-T2-M DH-T3-MB DY-T2-M GY-T2-M GX-T2-S GX-T4-M HY-T3-M HX-T3-M





Product Photo



Smart 30w Outdoor Garden Lights symetrical For Park And Scope Street Lamp 0





Equipment

ZHSL-14-80 Empty Housing LED Street Light Fixtures 60mm Pole With Die - Casing Aluminium



Company Profile:



Die Casting Man set up a new joint venture company named Ningbo Die Casting Man Energy Co., Ltd.

We are moving into our new big factory on Dajiahe Industrial Zone, Ninghai Town.

Office still available in our old factory No.225 Tanshu Road Ninghai.



Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W 1



Dajiahe Factory covers an area of over 90000 square meter which is 100 kilometer from Ningbo Sea port

and 70 kilometer from Ningbo Airport.

It will a complete lighting industrial zone specialized in design, mold making, production, marketing and service.

New company focused on supply illumination and electrical products not only street light and die casting OEM,

but also floodlight, highbay, tunnel light and plant light



Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W 2



We are moving all our facilities since beginning of this year and here comes some photos of our factory now.

Till now die casting ejection, CNC machinning, punching and assembling are already on line now.

New painting system will be put into use during this July.

New painting system have auto clearning and pretreatment system which will improve our pretreatment level.

We could make painting level from C3, C4 upto C5 now. This will be very helpful on our finish treatment.



Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W 3
