Product Details:
Payment & Shipping Terms:
|
| Manufacturer: | Ninghai Zhouhua Die Casting Co.,Ltd | Material: | ADC12 Aluminum |
|---|---|---|---|
| Wattage: | 60W | Fixture Color: | Gold Grey |
| IP: | 65 | LED Color: | WW/NW/CW |
| CRI: | >70 | Input Voltage: | AC85 - 265V |
| Frequency Range: | 50 - 60Hz | Working Ambient Humidity: | 10% - 90% |
| Working Ambient Temperature: | -30℃ - 50℃ | ||
| High Light: | street light housing,led street light enclosure |
||

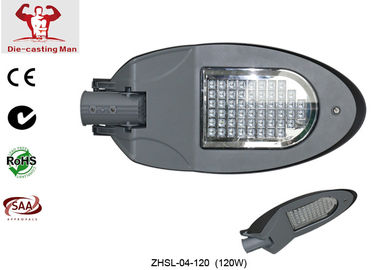

SMD 120W LED Led Street Light Fixtures with tempering glass Diffuser 85-265VAC
Quick Detail:
|
Name |
120W SMD Led Steet light |
Application |
Use for Street |
|
Color |
Grey,black,White |
Feature |
New Design |
|
Lamp Luminous Flux(lm) |
11260 |
Certificate |
TUV/UL /CE/ROHS |
Description:
New Patent 120W SMD LED streetlight made of High quality Die Casting Aluminum housing +Cree LED +UL LED Driver
1. The latest version of high power SMD LED Street Light Housing
2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 120pcs of 1W Creee SMD led.
3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. IP65 protection grade.

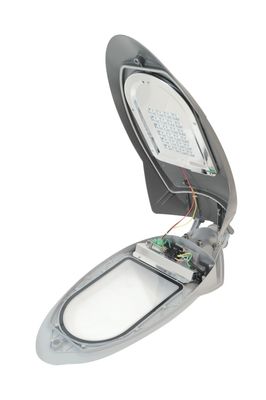

5. User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.
6.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
Applications:
minor roads,Motorways,Major roads,roundabouts,crossing and industrial areas.
Specifications
|
Model Number |
ZHSL-05-120 |
|
|
Electrical Specifications |
LED QTY |
1Wx120PCS |
|
TotaLPower consumption |
120W |
|
|
Operation Voltage |
85-265VAC or 12VDC or 24VDC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
12240 lm - Initial |
|
|
11260 lm - Maintain |
|
|
Led Luminous Efficiency |
>90LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
3Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
tempering glass |
|
|
Fixture Dimension |
864x375x172MM |
|
|
Fixture Weight |
9.5kgs(21lbs) |
|
|
Packing Information |
Packing Type |
1unit /ctn |
|
Packing Dimension |
92 x45 x24 cm (28” x14.2” x7.1”) |
|
|
Packing Weight |
11.2kgs(24.7lbs) |
|
