Product Details:
Payment & Shipping Terms:
|
| Item No.: | FAP82 | Lamp Power: | 20W |
|---|---|---|---|
| Rendering Index:: | 80 | Dimension(cm):: | 103.3*83.4*25.7 |
| Luminous:: | 900LM | Warranty(Year):: | 3-Year |

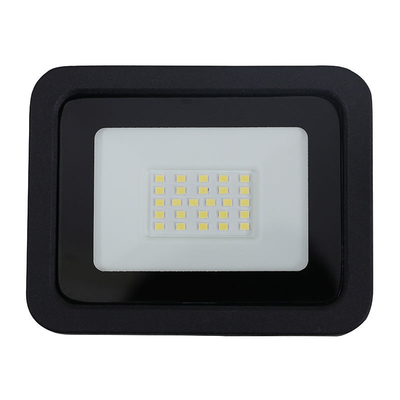

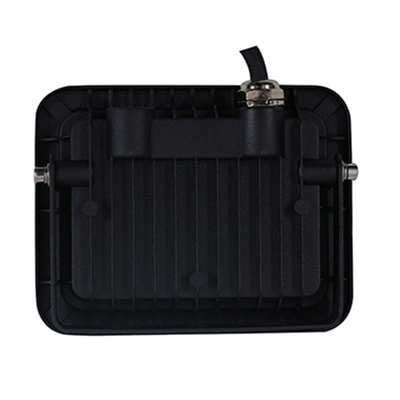

| High Light: | 900LM Slim Led Stadium Floodlight,20w Outdoor Stadium Floodlight,Waterproof Stadium Smart Floodlight |
||
Product Description:
1.TECHNICAL PARAMETERS:
LED Power Consumption: 10W-400W
Operating Voltage: AC200-260V 50/60HZ
Power Factor: >0.9;
LED Luminous Efficiency:90 lm/W
Color rendering index:Ra≥80;
Material: Die-casting aluminum body;
IP Rating: IP65;
Warranty: 3 years;
Finishes: White/Black/Gray
| Item | Actual Wattage | IP Grade | die casting aliumium Weight(G) | product weight G | Dimension(cm) | Cable | Rendering Index |
| SLFAP81 10W | SMD 10W | IP65 | 71 | 180 | 104*83.4*25.7 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP82 20W | SMD 20W | IP65 | 91 | 250 | 121*95.3*26.1 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP83 30W | SMD 30W | IP65 | 142 | 406 | 161*123.2*29.6 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP85 50W | SMD 50W | IP65 | 267 | 670 | 207*161*31.5 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP810 100W | SMD 100W | IP65 | 502 | 1390 | 269*209*34 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP815 150W | SMD 150W | IP65 | 963 | 2100 | 330*250*34 | 20CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP820 200W | SMD 200W | IP65 | 1408 | 3000 | 388*288*36 | 20CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP830 300W | SMD 300W | IP65 | 2313 | 4650 | 445*334*45.5 | 20CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP840 400W | SMD 400W | IP65 | 2935 | 6480 | 490*410*48 | 20CM H05RN-F3G1.0mm2 rubber cable | 70 |
2. FEATURES:
IP65 waterproof/dust proof/explosion proof/IK08
Pure Aluminum shape good at heat dissipation
Angle Bracket,easy to install by drill
Easy replacement and installation
SMD 3030 Ra>70/SDCM<7
50,000 times switching cycle before failure
Total harmonic distortion(THD)<20%
Ningbo Die-casting Man Techonology Co.,LTD. was founded in 1996 and is located in Ninghai Mould Centre,
close to Ningbo port and Shanghai port.
Factory covers an area of 15,000 square meters and has 100 employees.
We are a professional factory engaged in research, design, production, sale and service of street light
and die-casting injection OEM and ODM products. Our products sale mainly to Europe, Asia and domestic /dəˈmestɪk/ market.
We have die-casting injection, CNC machining, metal punching, powder painting, assembling and testing in house.
Our R&D department will develop 5-10 new products yearly. Besides design and production process,
we work under ISO9001 quality control system to make sure our quality is consistent and well controlled.
Our main products are street light and die-casting OEM injection products.
Current we have 25 series street light and various customer OEM products. Our street lights are available from 20W to 240W mainly.
Every series we have small, medium and large size and some have mini version.
If you do not like current version, we can also design the one to meet your market. We are a company never stand still on products and service.
