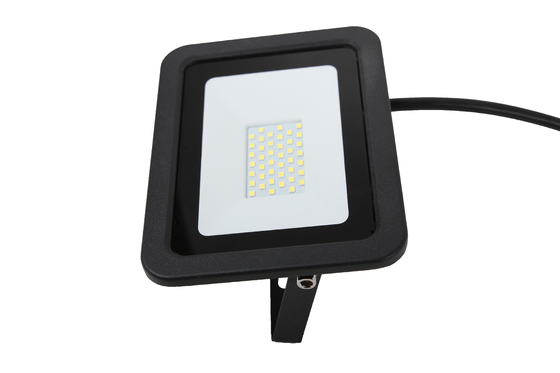

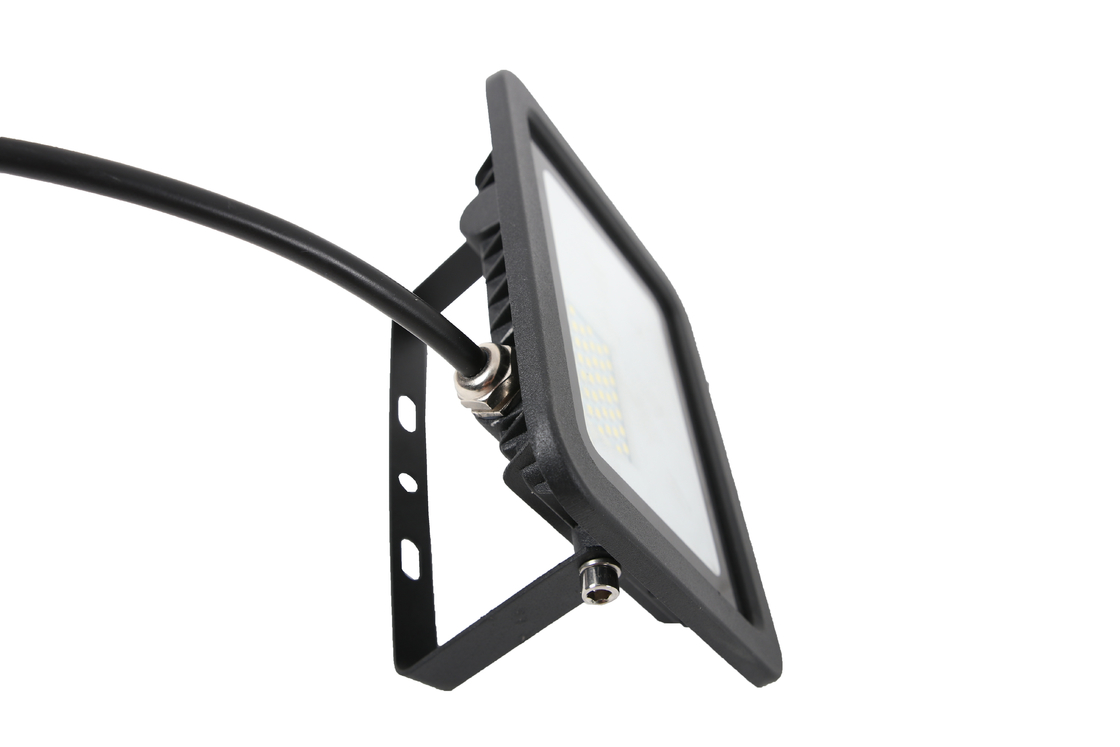

30W SMD Led Stadium Flood Light Slim Die Casting Aluminium Body

30W SMD Led Stadium Flood Light Slim Die Casting Aluminium Body
30W SMD Led Stadium Flood Light Slim Die Casting Aluminium Body 30W SMD Led Stadium Flood Light Slim Die Casting Aluminium Body

Large Image :  30W SMD Led Stadium Flood Light Slim Die Casting Aluminium Body

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs
Model Number: FAP83
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: 1pc / polyester bag / carton with EPE protection
Delivery Time: 5-7days for sampling, 30-35days for mass production
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per month
Detailed Product Description
Material: Die-casting Aluminium Power: 30w
Application: Sports Stadiums Beam Angle(°): 120 Degree
LED Source: SMD Warranty: 3 Years
High Light:

Aluminium Body SMD Stadium Flood Light

,

30W SMD Led Stadium Flood Light

,

Slim Die Casting Stadium Flood Light

30W SMD Led Flood Light With 3 Years Warranty Slim die-casting aluminium body

Product Description:



1.TECHNICAL PARAMETERS:


LED Power Consumption: 10W-400W
Operating Voltage: AC200-260V 50/60HZ
Power Factor: >0.9;
LED Luminous Efficiency:90 lm/W
Color rendering index:Ra≥80;
Material: Die-casting aluminum body;
IP Rating: IP65;
Warranty: 3 years;
Finishes: White/Black/Gray





Item Actual Wattage IP Grade die casting aliumium Weight(G) product weight G Dimension(cm) Cable Rendering Index
SLFAP81 10W SMD 10W IP65 71 180 104*83.4*25.7 15CM H05RN-F3G1.0mm2 rubber cable 70
SLFAP82 20W SMD 20W IP65 91 250 121*95.3*26.1 15CM H05RN-F3G1.0mm2 rubber cable 70
SLFAP83 30W SMD 30W IP65 142 406 161*123.2*29.6 15CM H05RN-F3G1.0mm2 rubber cable 70
SLFAP85 50W SMD 50W IP65 267 670 207*161*31.5 15CM H05RN-F3G1.0mm2 rubber cable 70
SLFAP810 100W SMD 100W IP65 502 1390 269*209*34 15CM H05RN-F3G1.0mm2 rubber cable 70
SLFAP815 150W SMD 150W IP65 963 2100 330*250*34 20CM H05RN-F3G1.0mm2 rubber cable 70
SLFAP820 200W SMD 200W IP65 1408 3000 388*288*36 20CM H05RN-F3G1.0mm2 rubber cable 70
SLFAP830 300W SMD 300W IP65 2313 4650 445*334*45.5 20CM H05RN-F3G1.0mm2 rubber cable 70
SLFAP840 400W SMD 400W IP65 2935 6480 490*410*48 20CM H05RN-F3G1.0mm2 rubber cable 70



2. FEATURES:



IP65 waterproof/dust proof/explosion proof/IK08
Pure Aluminum shape good at heat dissipation
Angle Bracket,easy to install by drill
Easy replacement and installation
SMD 3030 Ra>70/SDCM<7
50,000 times switching cycle before failure
Total harmonic distortion(THD)<20%





30W SMD Led Stadium Flood Light Slim Die Casting Aluminium Body 0

30W SMD Led Stadium Flood Light Slim Die Casting Aluminium Body 1








Company Profile:



Die Casting Man set up a new joint venture company named Ningbo Die Casting Man Energy Co., Ltd.

We are moving into our new big factory on Dajiahe Industrial Zone, Ninghai Town.

Office still available in our old factory No.225 Tanshu Road Ninghai.



Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W 1



Dajiahe Factory covers an area of over 90000 square meter which is 100 kilometer from Ningbo Sea port

and 70 kilometer from Ningbo Airport.

It will a complete lighting industrial zone specialized in design, mold making, production, marketing and service.

New company focused on supply illumination and electrical products not only street light and die casting OEM,

but also floodlight, highbay, tunnel light and plant light



Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W 2



We are moving all our facilities since beginning of this year and here comes some photos of our factory now.

Till now die casting ejection, CNC machinning, punching and assembling are already on line now.

New painting system will be put into use during this July.

New painting system have auto clearning and pretreatment system which will improve our pretreatment level.

We could make painting level from C3, C4 upto C5 now. This will be very helpful on our finish treatment.



Smart LED Street Light Fixtures Die Casting Aluminum 100W 160lm/W 3
