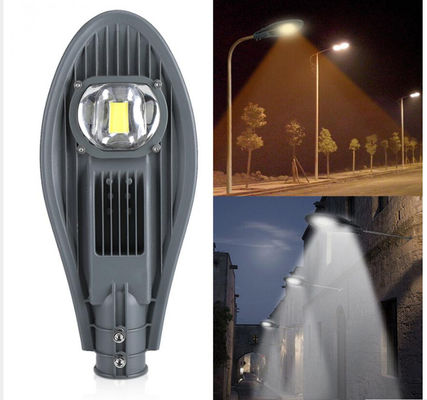

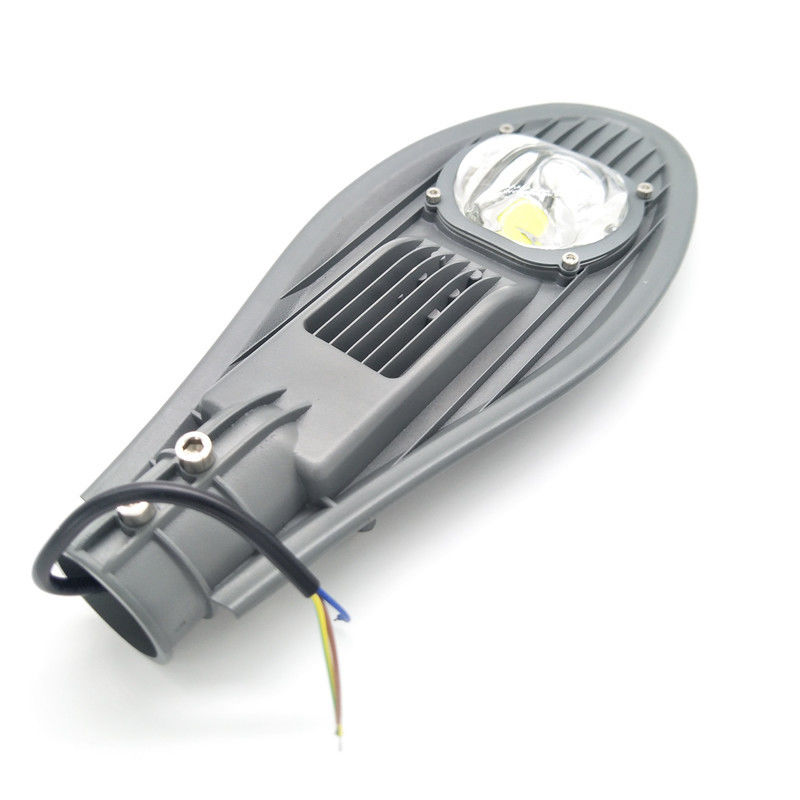

Ip65 80w Cob Led Street Light For Minor Roads

Ip65 80w Cob Led Street Light For Minor Roads
Ip65 80w Cob Led Street Light For Minor Roads Ip65 80w Cob Led Street Light For Minor Roads Ip65 80w Cob Led Street Light For Minor Roads Ip65 80w Cob Led Street Light For Minor Roads

Large Image :  Ip65 80w Cob Led Street Light For Minor Roads

Product Details:
Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-08-80
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability: 10000PCS/Month.
Detailed Product Description
Wattage: 60-80w Fixture Color: Black
IP: 65 LED Color: WW/NW/CW
CRI: >70 Input Voltage: AC85 - 265V
Frequency Range: 50 - 60Hz Working Ambient Humidity: 10% - 90%
Working Ambient Temperature: -30℃ - 50℃ Lamp: COB LED
High Light:

cob 80w led street light

,

80w cob led street light

,

ip65 cob led street light

Led Street Light Fixtures 60W COB Lamp White color for Major roads



Quick Detail:



Name

60-80W Cob Led Steet light

Application

Use for Street

Color

black

Feature

New Design

Lamp Luminous Flux(lm)

100LM/W

Certificate

TUV/UL /CE/ROHS



Description:



30W LED streetlight made of High quality Die Casting Aluminum housing +Bridgelux LED +MW Driver



1. The latest version of high power COB Street Light Housing,User-friendly mechanical  designing,easy to assemble the led,potic lense and led power supply.



2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 1pc of 60W Bridgelus COB led.



3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.



4. IP65 protection grade.



5.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.





Applications:



Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.





Specifications

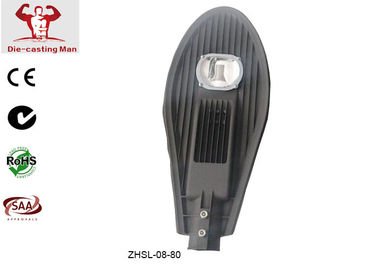

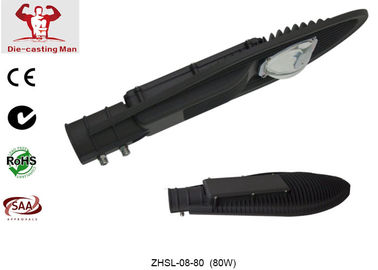

Model Number

ZHSL-08-80

Electrical Specifications

LED QTY

40W-80W x1PC

TotaLPower consumption

MAX.80W

Operation Voltage

85-265VAC or 12VDC or 24VDC

Operating Humidity

10%~90%

Working Temperature

-30 ~ 50°C

Power Fact(PF)

>0.95

Driver Efficiency

> 0.9

Photometric Specifications

LED Luminous Flux

8000 lm - Initial



7360 lm - Maintain

Led Luminous Efficiency

>90LM/W

CRI

Ra ≥ 70

LED Color

3000k-6500k

Mechanical Specifications

IP Rating

IP65

Warranty

3Years

Heat Radiator

die-casting body as heat sink

Lens

Patented anti-glare optic lense

Fixture Dimension

620x260x90MM

Fixture Weight

2.8kgs(6.18lbs)



Packing Information

Packing Type

1unit /ctn

Packing Dimension

67 x33 x15 cm (26.4” x13” x5.9”)

Packing Weight

3.5kgs(7.28lbs)

Our service:



your inquiries will be replied in 24 hours in our working days.

  • 3years warranty under normal use.
  • Professional design provided.
  • Timely delivery guaranteed.Ip65 80w Cob Led Street Light For Minor Roads 0

Ip65 80w Cob Led Street Light For Minor Roads 1
