40W 50W 60W Aluminum Die Casting Led Street Light Casing IK08 For Small Power Lamp

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

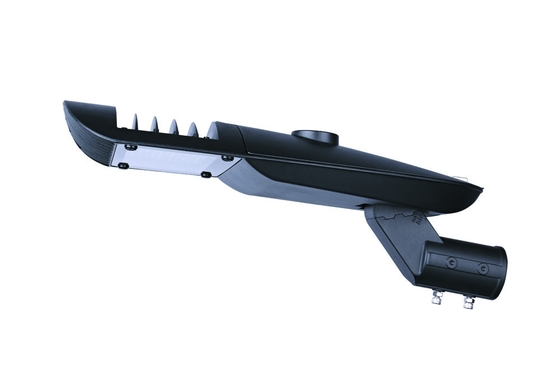

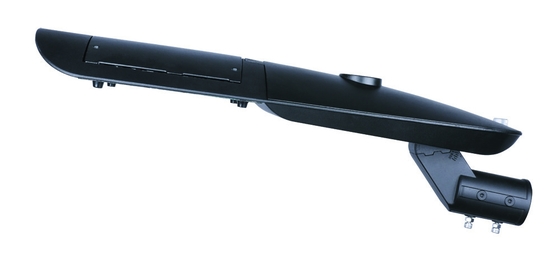

40W 50W 60W Aluminum Die Casting Led Street Light Casing IK08 For Small Power Lamp

40W 50W 60W Aluminum Die Casting Led Street Light Casing IK08 For Small Power Lamp
40W 50W 60W Aluminum Die Casting Led Street Light Casing IK08 For Small Power Lamp 40W 50W 60W Aluminum Die Casting Led Street Light Casing IK08 For Small Power Lamp

Large Image :  40W 50W 60W Aluminum Die Casting Led Street Light Casing IK08 For Small Power Lamp

Product Details:
Place of Origin: China
Brand Name: Die casting man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-15-40
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam filing/pc
Delivery Time: 35days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/Month.
Detailed Product Description
Input Wattage: 40~60W Efficiency: >140lm/w
Voltage: AC90-305V Packing Details: With Strofoam Package
Standards & Certifications: CE ENEC Color: Grey/Black ( Other Upon Request)
Power Factor: PF≥0.95 Diming: Dali/1-10V/PWM/Smart Control Management System (upon Request)
High Light:

Aluminum Led Light Housing IK08

,

60W Led Street Light Casing

,

Aluminum LED Street Light Housing

Economical led Street Light Protection level IK08 lamp seires 40W 50W 60W small  wattage

What I'm showing you now is one of the best selling street light, the SL-15 series,For this series, we designed total of three sizes models, to deal with three different wattage requirements,The minimum power can be 30watts, the maximum can reach 180 watts.



40W 50W 60W Aluminum Die Casting Led Street Light Casing IK08 For Small Power Lamp 0



Products Description



Product Datasheet
Item No. YASL-15-40 YASL-15-40 YASL-15-40 YASL-15-40
Power 30W 40W 50W 60W
Lumen Efficiency 140lm/w 140lm/w 140lm/w 140lm/w
Lumen 4200lm 5600lm 7000lm 8400lm
Product Size (mm) 563x196x193mm 563x196x193mm 563x196x193mm 563x196x193mm
Electrical Data
Working Voltage AC100-265V 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20 ~+50 , 10%~90%RH
Lifespan L70 at 25 > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%



Material: Hign pressure die-cast aluminum Wattage: 30/40/50/60W
IP: 66 CRI: ≥70
Color Temperature: 3000/40000/6500K Input Voltage: AC90 - 265V
Frequency Range: 50 - 60Hz Working Ambient Temperature: -40℃ - 50℃
Working Ambient Humidity: 20% - 90%RH LED Lifetime: 50000h





40W 50W 60W Aluminum Die Casting Led Street Light Casing IK08 For Small Power Lamp 1


Is there anything else you want to know about this lamp?



1. Q:What is the waterproof rating?

A: It’s can pass IP66

2. Q:How many years of warranty do you promise?

A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.

3. Q:What is the grade of your powder coating?

A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.

4. Q:What's the packing you use?

A: Our packing is PE bags with foam and carton box,we will ensure it safe.

5. Q:What is your usual lead time?

A: 25 days for regular products, 10 days extra for special requirements.

6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?

A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.

7. Q:What brand of driver do you use?

A: The brand we usually use is Inventronics,Sosen these China local brand,and PHILIPS,MEANWELL these international brand,Customers can also specify brands,it’s no problem.

8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?

A: The colors we usually use are black and gray,you can also customize other color,just tell us the RAL number,we will according the RAL number to do the powder coating.

9. Q:Ok,that’s good,So if I want to specify a color,will you charge extra cost?

A: will not,but we will require MOQ500 pcs.

10. Q:ok,last question,Do you accept OEM?

A: Of course we can,we have own die-casting machine and mould design team,must be able to meet your requirements,and we already have a lot of OEM customers.

Electrical

· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation

Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available
