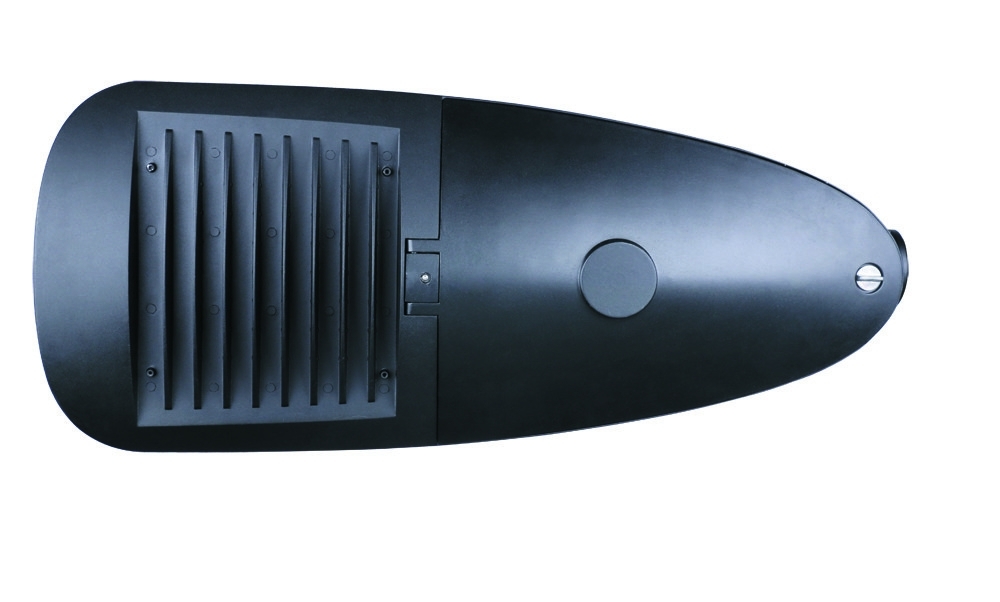

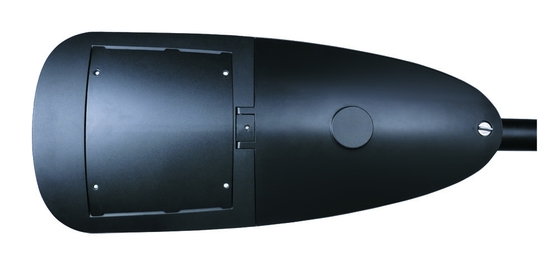

Outdoor LED SMD Lighting Housing 150W Projector Sensor Light

Outdoor LED SMD Lighting Housing 150W Projector Sensor Light
Outdoor LED SMD Lighting Housing 150W Projector Sensor Light
video play

Large Image :  Outdoor LED SMD Lighting Housing 150W Projector Sensor Light

Product Details:
Place of Origin: China
Brand Name: Die casting man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-15-150
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam filing/pc
Delivery Time: 35days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/Month.
Detailed Product Description
Efficiency: >140lm/w Voltage: AC90-305V
IP: 66 Packing Details: With Strofoam Package
Standards & Certifications: CE ENEC Color: Grey/Black ( Other Upon Request)
Color Temperature: 3000k 4000k 5000k 6500k Color Rendering Index: ≥70
IK: 08 Led Lifetime: 50000h
High Light:

LED SMD Lighting Housing 150W

,

SMD Projector Lamp Housing

,

Sensor Street Light Housing 140lm/w

First of all, please allow me to introduce our company Ningbo die-casting man to you

Outdoor LED SMD Lighting Housing 150W Projector Sensor Light 0

Smart sensor led Street lamp high luminous efficacy 150W 180W 145lm/w Square street light



Products Description

Outdoor LED SMD Lighting Housing 150W Projector Sensor Light 1

Product Datasheet
Item No. YASL-15-150 YASL-15-150 YASL-15-150 YASL-15-150
Power 120W 150W 180W 200W
Lumen Efficiency 140lm/w 140lm/w 140lm/w 130lm/w
Lumen 16800lm 21000lm 25200lm 26000lm
Product Size (mm) 875x370x130 875x370x130 875x370x130 875x370x130
Electrical Data
Working Voltage AC100-265V 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20 ~+50 , 10%~90%RH
Lifespan L70 at 25 > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%



Electrical

· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation

Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available



Outdoor LED SMD Lighting Housing 150W Projector Sensor Light 2

Is there anything else you want to know about this lamp?



1. Q:What is the waterproof rating?

A: It’s can pass IP66

2. Q:How many years of warranty do you promise?

A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.

3. Q:What is the grade of your powder coating?

A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.

4. Q:What's the packing you use?

A: Our packing is PE bags with foam and carton box,we will ensure it safe.

5. Q:What is your usual lead time?

A: 25 days for regular products, 10 days extra for special requirements.

6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?

A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.

Outdoor LED SMD Lighting Housing 150W Projector Sensor Light 3
