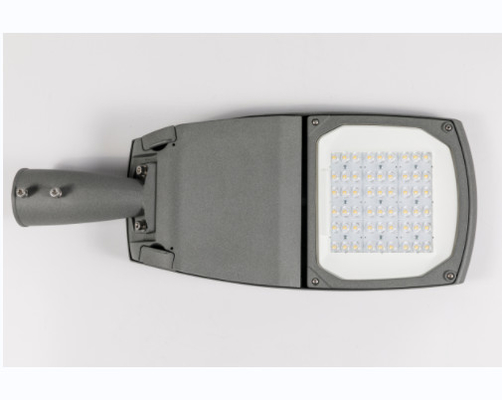

100W Wireless Nema Outdoor SMD LED Street Light Housing High Mast With Smart Sensor

100W Wireless Nema Outdoor SMD LED Street Light Housing High Mast With Smart Sensor
100W Wireless Nema Outdoor SMD LED Street Light Housing High Mast With Smart Sensor

Large Image :  100W Wireless Nema Outdoor SMD LED Street Light Housing High Mast With Smart Sensor

Product Details:
Place of Origin: China
Brand Name: Die casting man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-25-80
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: foam filing/pc
Delivery Time: 35days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/Month.
Detailed Product Description
Input Wattage: 80/90/100W Efficiency: >140lm/w
Power Supply: AC Voltage: AC90-305V
IP: 66 IK: 08
Package: 1pcs/carton Packing Details: With Strofoam Package
Standards & Certifications: CE ENEC Color: Grey/Black ( Other Upon Request)
High Light:

High Mast SMD Street Light Housing

,

Wireless Nema LED Street Light Housing

,

Smart Sensor SMD Led Light Housing

Nema Socket Dimming 80W 100W Aluminum led street light for Highway roads and Streets



Products Description

Product Datasheet
Item No. YASL-25-80 YASL-25-80 YASL-25-80 YASL-25-80
Power 70W 80W 90W 100W
Lumen Efficiency 140lm/w 140lm/w 140lm/w 140lm/w
Lumen 9800lm 11200lm 12600lm 1400lm
Product Size (mm) 645x257x147 645x257x147 645x257x147 645x257x147
Electrical Data
Working Voltage AC100-265V 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20 ~+50 , 10%~90%RH
Lifespan L70 at 25 > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%



First of all, please allow me to introduce our company Ningbo die-casting man to you:
Die-casting Man is one of the lighting manufacturers with design ,development and production. We understand that lighting technology has to be practical,so we always design and develop with our customers needs in mind.

100W Wireless Nema Outdoor SMD LED Street Light Housing High Mast With Smart Sensor 0

Fair picture

100W Wireless Nema Outdoor SMD LED Street Light Housing High Mast With Smart Sensor 1

Is there anything else you want to know about this lamp?



1. Q:What is the waterproof rating?

A: It’s can pass IP66

2. Q:How many years of warranty do you promise?

A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.

3. Q:What is the grade of your powder coating?

A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.

4. Q:What's the packing you use?

A: Our packing is PE bags with foam and carton box,we will ensure it safe.

5. Q:What is your usual lead time?

A: 25 days for regular products, 10 days extra for special requirements.

6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?

A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.

7. Q:What brand of driver do you use?

A: The brand we usually use is Inventronics,Sosen these China local brand,and ,MEANWELL these international brand,Customers can also specify brands,it’s no problem.

8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?

A: The colors we usually use are black and gray,you can also customize other color,just tell us the RAL number,we will according the RAL number to do the powder coating.

9. Q:Ok,that’s good,So if I want to specify a color,will you charge extra cost?

A: will not,but we will require MOQ500 pcs.

10. Q:ok,last question,Do you accept OEM?

A: Of course we can,we have own die-casting machine and mould design team,must be able to meet your requirements,and we already have a lot of OEM customers.
