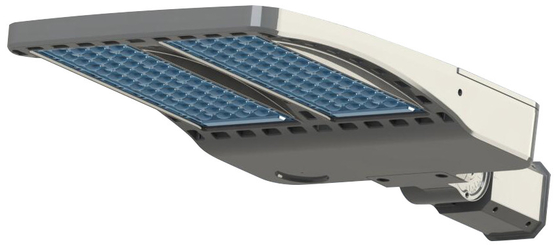

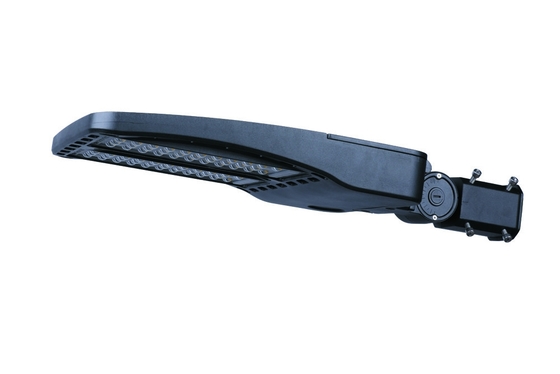

PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree

PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree
PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree

Large Image :  PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: SL-17B-300
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: T/T, L/C
Detailed Product Description
Model No.: SL-17B-300 Wattage: 300W
IK: 08 IP: 66
Product Size: 783x355x88mm Packing Size: 630x400x130mm
High Light:

PC Lens LED Street Light Module

,

Tilt 20 Degree Street Light Module

,

300W Led Light Control Module



Name:300W Die Cast Aluminium Street Light

Installing Ways:Both Horizontal and Vertical available and adjustable angle-20°to 20°
Material:Die casting Aluminum body and PC lens

PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree 0



PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree 1 PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree 2 PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree 3
Luminaire tilt adjustment side entry:-20°to+20° Luminaire tilt adjustment,post top:-20°to+20° product size







Product Code ZHSL-17B-300 PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree 4 PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree 5
Input Wattage 300W
Color Temperature 3000/4000/6500
Luminous Flux 39000-45000 lm
Input Voltage AC90-305V
Frequency Range 50/60Hz
Power Factor PF≥0.95
color rendering index Ra≥70 Type II-L Type II-M
Temperature of Working Condition -40--50℃ PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree 6 PC Lens 300W LED Street Light Module Adjustable Angle Tilt 20 Degree 7
Humidity of Working Condition 20%-90%RH
LED Lifetime 50000h
Protectin Grade IP66
Installation Pipe Diameter φ60mm
Installation Height 10-14m
Net Weight 8.9kg
Gross Weight 9.5kg
Packing Size 630*400*130mm TypeIII-S TypeIII-M





Product Code 17A-150 17B-150 17C-150 17D-150 17A-300 17B-300 17C-300 17D-300
Input Wattage 150W 150W
Color Temperature 3000-6500K 3000-6500K
Luminous Flux 18000-21000 lm 18000-21000 lm
Input Voltage AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70
Temperature of Working Condition -40-50℃ -40-50℃
Humidity of Working Condition 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h
Protection Grade IP66 IP66
Installation Size Reference figure A 60mm Reference figure c Reference figure d Reference figure A 60mm Reference figure c Reference figure d
Installation Height 8-12m 10-14m
Net Weight 5.8kg 6.3kg 5.8kg 6.3kg 8.4kg 8.9kg 8.4kg 8.9kg
Gross Weight 6.5kg 7.0kg 6.5kg 7.0kg 9.0kg 9.5kg 9.0kg 9.5kg
Packing Size(mm) 530×350×130 630×400×130

FAQ

1,What is the designing?

Products was designing by senior designer with rich working experience in lighting industry

2,What is the Quality Management System?

All the products was produced under the ISO9001, and was passed by TUV CE, CB, ENEC and RoHS certificate.

3,What is the Product Warranty time?

All the products could be guaranteed by 5 years.

4,What about the delivery time?

Goods normally will be produced within 25 days on receipt of order confirmation.

Note: The package size is the outer size

The technical parameters shown in this table are measured in a laboratory environment with an ambient temperature of 25 °; humidity of 35%RH
