ERP SMD2835 High Power LED Flood Light DOB / Linear Outdoor Led Lighting

Large Image : ERP SMD2835 High Power LED Flood Light DOB / Linear Outdoor Led Lighting

Product Details:

Place of Origin:	NINGBO,CHINA
Brand Name:	Die Casting Man
Certification:	CE.ROHS.ERP
Model Number:	FAP820

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	1pc / polyester bag / carton with EPE protection
Delivery Time:	5-7days for sampling, 30-35days for mass production
Payment Terms:	L/C, T/T
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Model:	FAP820	Power:	100W
Led Chip:	2835	Working Time (hours)::	50000h
Name:	Led Flood Light	Product Color:	Black
Highlight:	ERP High Power LED Flood Light , DOB Outdoor Led Lighting , Linear LED Stadium Flood Light

DOB or Linear outdoor led lighting ERP standard SMD2835 high power LED flood light

Features:

IP65 waterproof/dust proof/explosion proof/IK08
Pure Aluminum shape good at heat dissipation
Angle Bracket,easy to install by drill
Easy replacement and installation
SMD 2835 Ra>70/SDCM<7
50,000 times switching cycle before failure
Total harmonic distortion(THD)<20%
Temperature Operating -20~+45ºC
Storage -40~+60ºC
Input Voltage:AC180-240V / AC127V / AC100-240V
50/60Hz
Power Efficiency:>=0.90

Application:

Large retailers / School / Billboard / Building/Airports / Stadium / Train stations / Bus stations/Factory Warehouses / Parking lots/ Exhibition centers/ Gas stations / Toll stations etc.

Detail pictures:

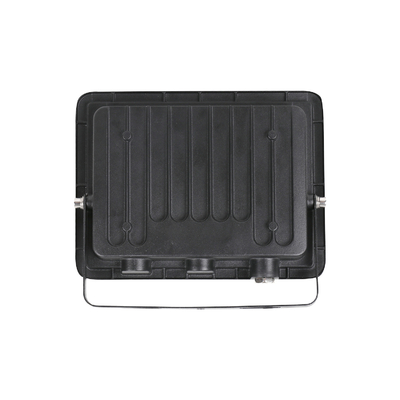

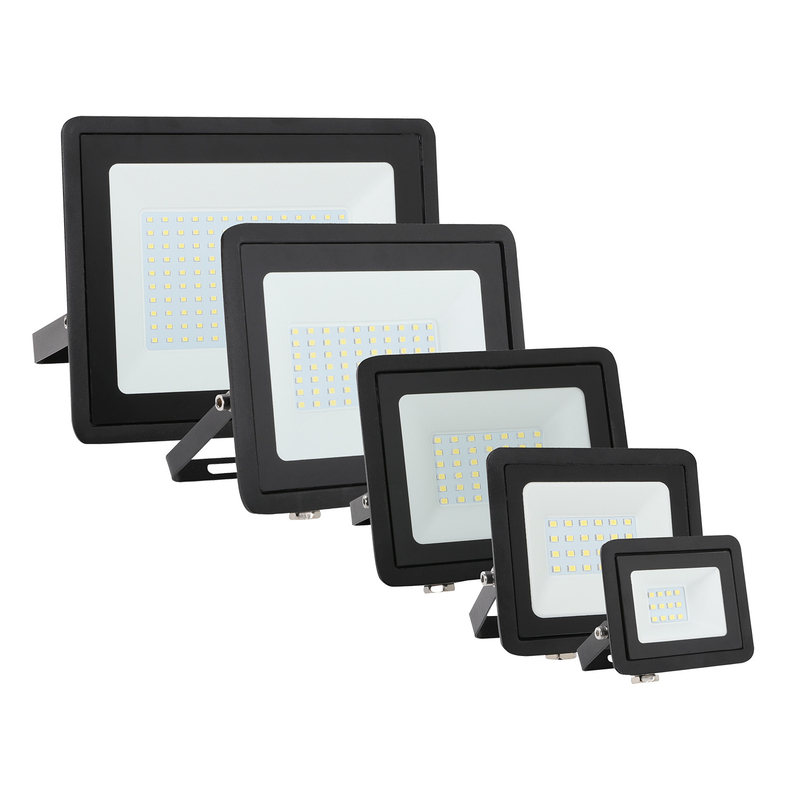

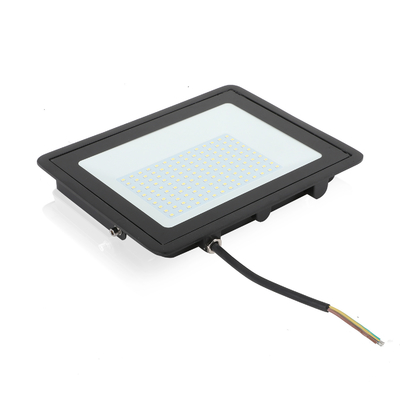

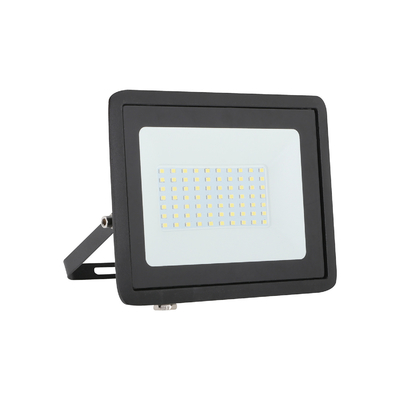

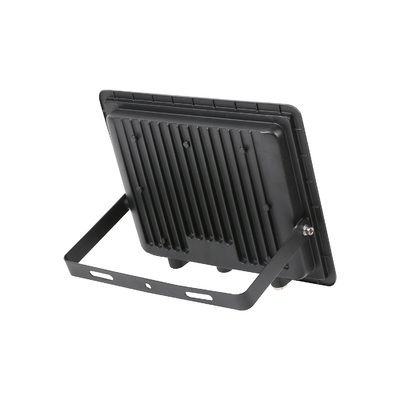

ERP SMD2835 High Power LED Flood Light DOB / Linear Outdoor Led Lighting 1

ERP SMD2835 High Power LED Flood Light DOB / Linear Outdoor Led Lighting 2

ERP SMD2835 High Power LED Flood Light DOB / Linear Outdoor Led Lighting 3

ERP SMD2835 High Power LED Flood Light DOB / Linear Outdoor Led Lighting 4

Product Dimension:

ERP SMD2835 High Power LED Flood Light DOB / Linear Outdoor Led Lighting 5

Model NO.	Size L(mm)	Size W(mm)	Size H(mm)
FAP81	104	83.4	25.7
FAP81-PIR	104	160	45
FAP82	121	95.3	26.4
FAP82-PIR	121	165	45
FAP83	161	123.2	29.6
FAP83-PIR	161	197	45
FAP85	207	161	31.5
FAP85-PIR	207	228	45
FAP810	269	209	34
FAP815	330	250	34
FAP820	388	288	36
FAP830	445	334	45.5
FAP840	490	410	48

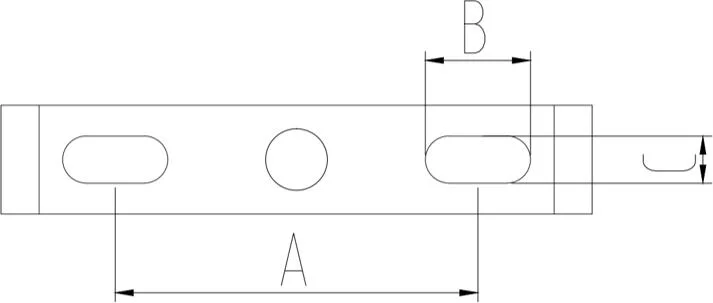

Mounting hole size:

ERP SMD2835 High Power LED Flood Light DOB / Linear Outdoor Led Lighting 6

FAP81	50	14.5	6.5
FAP82	57	14.5	6.5
FAP83	57	14.5	6.5
FAP85	129.5	14.5	6.5
FAP810	140	20	8.3
FAP815	140	20	8.3
FAP820	240	20	8.3
FAP830	240	20	8.3
FAP840	240	22	11

Complete light Specification

Model	Power	Light Source	LED QTY	CCT(K)	LM/W	CRI
FAP81-10W	10	2835	13	6500k	85	>70
FAP82-20W	20	2835	26	6500k	85	>70
FAP83-30W	30	2835	39	6500k	90	>70
FAP85-50W	50	2835	78	6500k	90	>70
FAP810-100W	100	2835	143	6500k	90	>70
FAP815-150W	150	2835	195	6500k	90	>70
FAP820-200W	200	2835	286	6500k	90	>70
FAP830-300W	300	2835	390	6500k	90	>70
FAP840-400W	400	2835	507	6500k	90	>70

Distribution:

ERP SMD2835 High Power LED Flood Light DOB / Linear Outdoor Led Lighting 7

Installaton:
