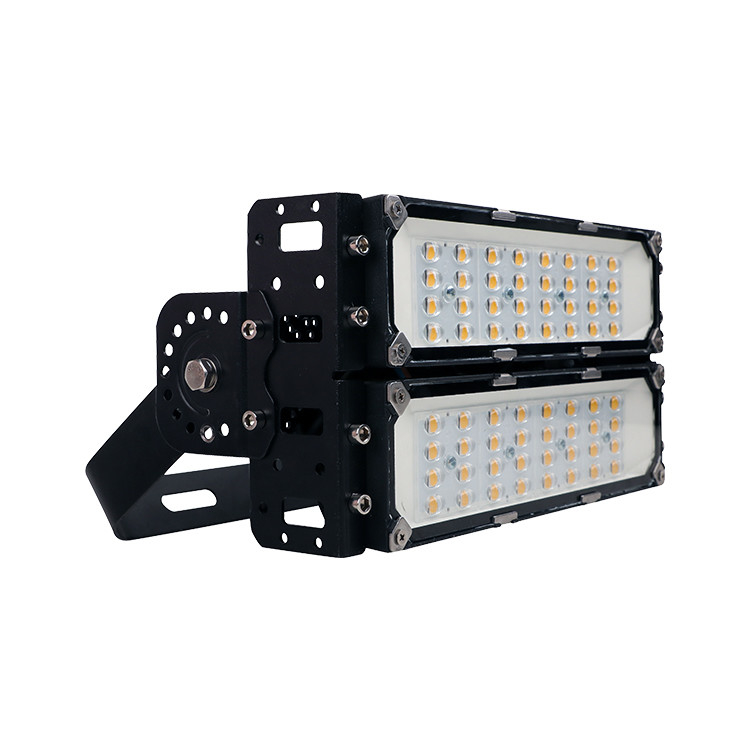

High quality IP66 22000 lumens 200w led tunnel lights flood light 200w
Product Specification:
| Model NO. |
Power(W) |
Light Source |
LED QTY (PCS) |
Lens(PCS) |
CCT(K) |
Lumen |
CRI |
| (lm/W) |
| MZ10-15-30W |
30 |
3030(5050) |
48/24 |
4pcs 12in1/4pcs 6in1 |
4000k |
130/150 |
＞70 |
| MZ10-15-40W |
40 |
3030(5050) |
64/32 |
4pcs 16in1/4pcs 8in1 |
4000k |
130/150 |
＞70 |
| MZ10-15-50W |
50 |
3030(5050) |
64/32 |
4pcs 16in1/4pcs 8in1 |
4000k |
130/140 |
＞70 |
| MZ10-15-60W |
60 |
3030(5050) |
96/32 |
4pcs 24in1/4pcs 8in1 |
4000k |
130/140 |
＞70 |
| MZ10-110-100W |
100 |
3030(5050) |
128/64 |
8pcs 16in1/8pcs 8in1 |
4000k |
130/150 |
＞70 |
| MZ10-110-120W |
120 |
3030(5050) |
192/54 |
8pcs 24in1/8pcs 8in1 |
4000k |
130/140 |
＞70 |
| MZ10-110-150W |
150 |
3030(5050) |
192/64 |
8pcs 24in1/8pcs 8in1 |
4000k |
130/130 |
＞70 |
| MZ10-115-150W |
150 |
3030(5050) |
192/96 |
12pcs 16in1/12pcs 8in1 |
4000k |
130/150 |
＞70 |
| MZ10-115-180W |
180 |
3030(5050) |
256/96 |
16pcs 16in1/16pcs 8in1 |
4000k |
130/150 |
＞70 |
| MZ10-115-200W |
200 |
3030(5050) |
256/96 |
16pcs 16in1/16pcs 8in1 |
4000k |
130/140 |
＞70 |
| item |
SLMZ10 |
| Color Temperature(CCT) |
6000K (Daylight Alert) |
| Lamp Luminous Efficiency(lm/w) |
150 |
| Color Rendering Index(Ra) |
70 |
| Support Dimmer |
yes |
| Lighting solutions service |
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation |
| Lifespan (hours) |
50000 |
| Working Time (hours) |
10000 |
| Input Voltage(V) |
AC90-305V |
| Lamp Luminous Flux(lm) |
130 |
| CRI (Ra>) |
70 |
| IP Rating |
IP65 |
| Certification |
CCC, ce, EMC, LVD, UL |
| Warranty(Year) |
5-Year |
| Place of Origin |
China |
| Brand Name |
Die-casting Man |
| Light Source |
LED |
| Product name |
Led Tunnel Lamp |
| Application |
Sport Field |
Features:
1. IP66 waterproof/dust proof/explosion proof/IK09
2. Aluminum shape good at heat dissipation
3. The lamp post can be adjusted to plus or minus 15 degrees
4. It can also be installed vertically
5. SMD 3030/ 5050/ Ra>70/SDCM<6
6. 100,000 times switching cycle before failure
7. Total harmonic distortion(THD)<10%
8. Excellent post light control design, the whole lamp can achieve T II-M, T III-M,That's our advantage
9. Pass 3G vibration test
Application:
Road lighting
It is mainly applied to the road lighting of urban expressway,secondary
trunk road, branch road, factory, school, garden, various residential communities and courtyards. The installation height is 6-13m and the installation torque is 16Nm.
Packing&Payment&Shipping
1)All sea shipping packing with Pallet,no throw,no broken
2)Paypal,TT Bank wire,L/C,Western Union,Trader-assurance
3)Samples 2-3 days,bulk order 5-10 days
