Product Details:
Payment & Shipping Terms:
|
| Wattage: | 120W | Material: | Die-casting Aluminum |
|---|---|---|---|
| CCT: | 3000-6500K | Lumen: | 14400lm |
| Voltage: | AC90-305V | IP: | 66 |
| High Light: | outdoor light housing,street light housing |
||

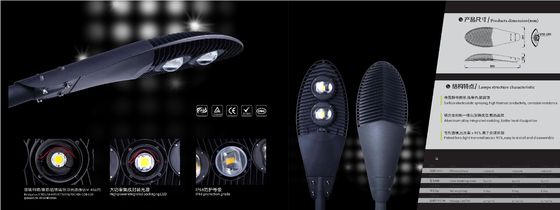

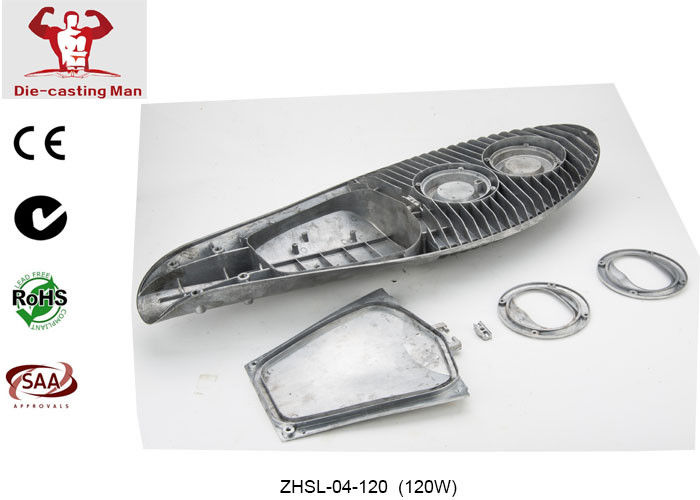

Aluminum Die Casting 120W Outdoor LED Street Light Housing / Street Lighting Fixture
Product Specification
| Product Code | ZHSL-04-80 | ZHSL-04-120 | ZHSL-04-180 |
| Input Wattage | 80W | 120W | 180W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 8800-9600lm | 13200-14400lm | 19800-21600lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 6-8m | 8-12m | 10-14m |
| Net Weight | 5.0kgs | 7.5kgs | 11.5kgs |
| Gross Weight | 5.4kgs | 8.0kgs | 12.5kgs |
| Packing Size(mm) | 705*290*160 | 860*330*160 | 1005*400*185 |
| Product Size(mm) | 650*237*121 | 800*291*131 | 950*347*155 |
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
We are a professional Die casting factory for around 30years.
