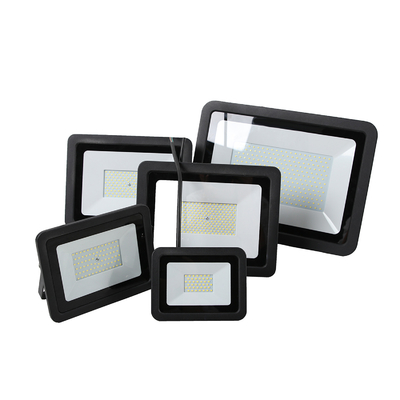

Ultra Slim Square Outdoor LED Flood Light 10w 20w 30w 50w 70w

Large Image : Ultra Slim Square Outdoor LED Flood Light 10w 20w 30w 50w 70w

Product Details:

Place of Origin:	NINGBO,CHINA
Brand Name:	Die Casting Man
Certification:	CE.ROHS.ERP
Model Number:	FAP830

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	1pc / polyester bag / carton with EPE protection
Delivery Time:	5-7days for sampling, 30-35days for mass production
Payment Terms:	L/C, T/T
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Model:	FAP830	Power:	100w 120w 150W
Input Voltage:	AC180-240V	Working Time (hours)::	50000h
Name:	Led Flood Light	Product Color:	Black
Highlight:	Square Outdoor LED Flood Light 70w , Ultra Slim LED Stadium Flood Light , 30w LED Sports Floodlights

Ultra slim 10w 20w 30w 50w 70w square outdoor led flood light

Product Specification:

Model	Power	Light Source	LED QTY	CCT(K)	LM/W	CRI
FAP81-10W	10	2835	13	6500k	85	>70
FAP82-20W	20	2835	26	6500k	85	>70
FAP83-30W	30	2835	39	6500k	90	>70
FAP85-50W	50	2835	78	6500k	90	>70
FAP810-100W	100	2835	143	6500k	90	>70
FAP815-150W	150	2835	195	6500k	90	>70
FAP820-200W	200	2835	286	6500k	90	>70
FAP830-300W	300	2835	390	6500k	90	>70
FAP840-400W	400	2835	507	6500k	90	>70

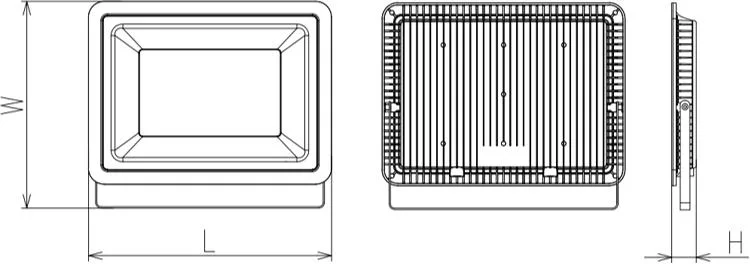

Product Dimension:

Stadium Flood Light Outdoor LED Industrial Flood Lighting

Model NO.	Size L(mm)	Size W(mm)	Size H(mm)
FAP81	104	83.4	25.7
FAP81-PIR	104	160	45
FAP82	121	95.3	26.4
FAP82-PIR	121	165	45
FAP83	161	123.2	29.6
FAP83-PIR	161	197	45
FAP85	207	161	31.5
FAP85-PIR	207	228	45
FAP810	269	209	34
FAP815	330	250	34
FAP820	388	288	36
FAP830	445	334	45.5
FAP840	490	410	48

Installaton:

Features:

Power:10w-300w

Power Factor:>95%

Color Temperature:3000k-6500k

Working Voltage:AC180-240V

CRI:>80

Flux:1000lm-30000lm

Waterproof:IP66

Lamp Body Material:Aluminum

Lamp Luminous Efficiency(lm/w):100

IP65 waterproof/dust proof/explosion proof/IK08

Pure Aluminum shape good at heat dissipation

Angle Bracket,easy to install by drill
Easy replacement and installation

SMD 2835 Ra>70/SDCM<7

50,000 times switching cycle before failure
Total harmonic distortion(THD)<20%

Temperature Operating -20~+45ºC
Storage -40~+60ºC

Input Voltage:AC180-240V / AC127V / AC100-240V
50/60Hz

Power Efficiency:>=0.90

Application:

Large retailers / School / Billboard / Building/Airports / Stadium / Train stations / Bus stations/Factory Warehouses / Parking lots/ Exhibition centers/ Gas stations / Toll stations etc.

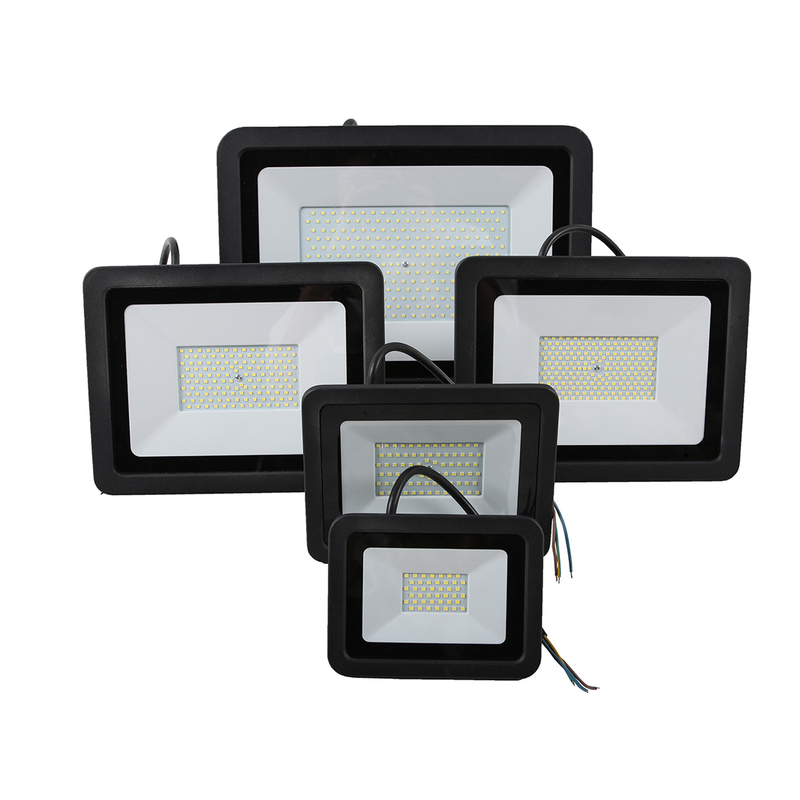

Ultra Slim Square Outdoor LED Flood Light 10w 20w 30w 50w 70w 3

Ultra Slim Square Outdoor LED Flood Light 10w 20w 30w 50w 70w 4
