100W 150W 200W Aluminium LED High Bay Lights Motion Sensor

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

100W 150W 200W Aluminium LED High Bay Lights Motion Sensor

100W 150W 200W Aluminium LED High Bay Lights Motion Sensor
100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 100W 150W 200W Aluminium LED High Bay Lights Motion Sensor

Large Image :  100W 150W 200W Aluminium LED High Bay Lights Motion Sensor

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DIE-CASTING MAN
Certification: CE,ROHS.ENEC
Model Number: ZHHB-06-150
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: negotiation
Packaging Details: 1pc/foam/ctn
Delivery Time: 25-40days
Supply Ability: 10000pcs/month
Detailed Product Description
Item: ZHHB-06-100-150-200 Material: Die-Casing Aluminium
Wattage: 100W 150W 200W LED Lifetime: 50000h
Protection Grade: IP66 Colour: Black Grey Silver
High Light:

LED Highbay Light Motion Sensor

,

150W LED High Bay Lights

,

Aluminium High Bay Lights IP66

100W 150W 200W LED HIGHBAY LIGHT motion sensor available five installation ways high bay lights


Features

  • IP65 waterproof/dust proof/explosion proof/IK08
  • Pure Aluminum shape good at heat dissipation
  • Angle Bracket,easy to install by drill
  • Easy replacement and installation
  • SMD 3030 Ra>70/SDCM<7
  • 50,000 times switching cycle before failure
  • Total harmonic distortion(THD)<20%


Product Specification



Product Code ZHHB-06-100 ZHHB-06-150 ZHHB-06-200
Input Wattage 100W 150W 200W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 12000-14000lm 18000-19600lm 24000-28000lm
Input Voltage AC220-240V AC220-240V AC220-240V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.9 PF≥0.9 PF≥0.9
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP65 IP65 IP65
Light Angle 60°/90°/120° 60°/90°/120° 60°/90°/120°
Product Size(mm) φ256x150 φ300x150 φ340x153





Detection Coverage

Typical installation height 8-12m

This figure indicates the maximum distance at the highest mounting height with 100%sensitivity.



100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 0

Photometric Data

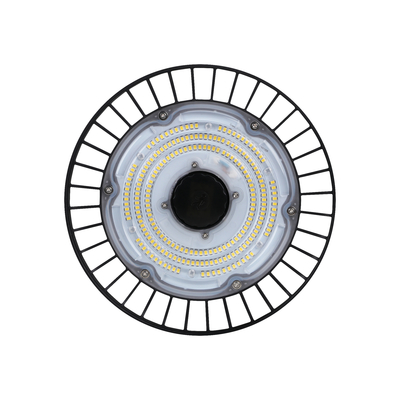

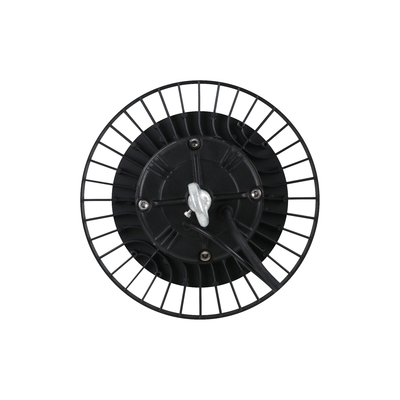

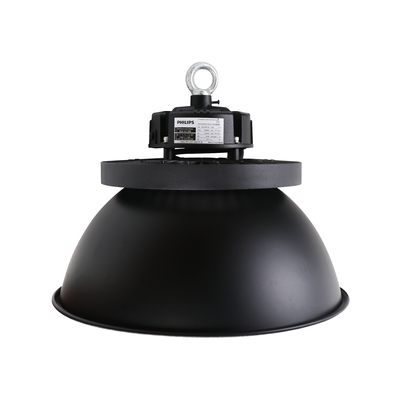

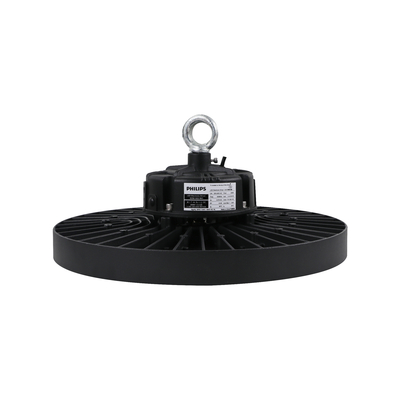

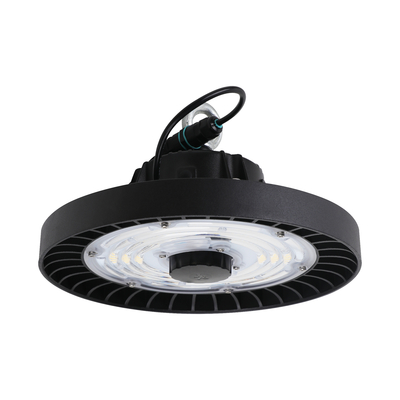

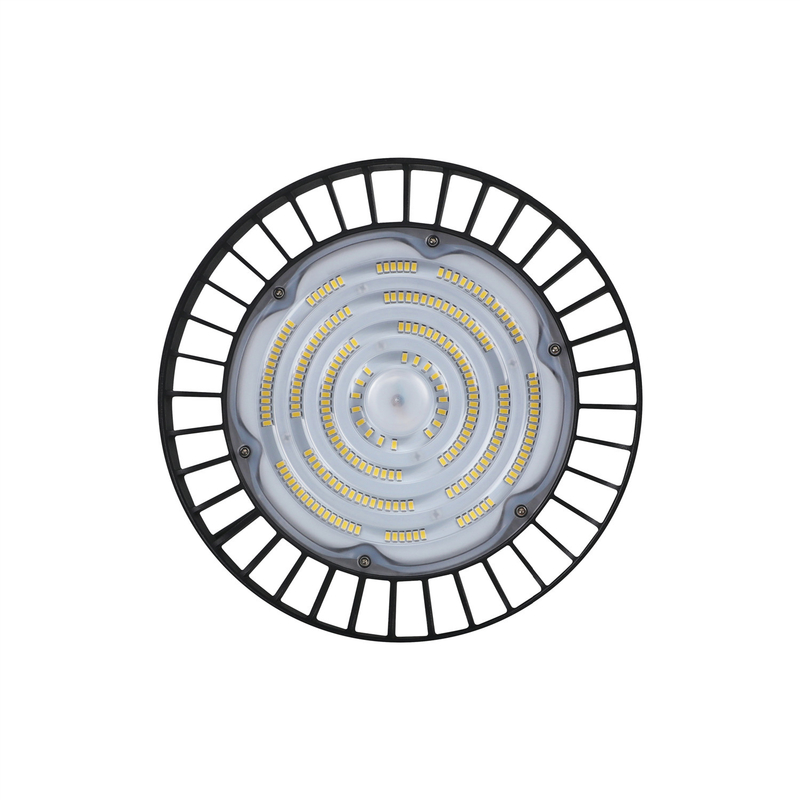

Detail Picture

100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 1

100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 2

100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 3

Product advantag



100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 4







100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 5



Package Detail



100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 6

Model No Pcs/CTN N.W.(kg) G.W.(kg) Carton Size(mm)
YAHB-06-100 4 16.6 17.6 730*370*320
YAHB-06-150 2 10.44 11.44 400*400*310
YAHB-06-200 1 6.3 7.3 410*410*160



Installation



Hook Installation way



100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 7

Hang Chain Installation way

100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 8

Other Installlation way

100W 150W 200W Aluminium LED High Bay Lights Motion Sensor 9
