30w Ra70 Aluminum Led Street Light For Public Lighting

30w Ra70 Aluminum Led Street Light For Public Lighting
30w Ra70 Aluminum Led Street Light For Public Lighting 30w Ra70 Aluminum Led Street Light For Public Lighting

Large Image :  30w Ra70 Aluminum Led Street Light For Public Lighting

Product Details:
Place of Origin: China
Brand Name: Die Casting Man
Certification: CE,ROHS, UL,SAA
Model Number: YASL-18-30
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, L/C, T/T, Western Union
Supply Ability: 10000PCS/Month.
Detailed Product Description
Wattage: 30W Material: Aluminum
Input Voltage: AC85 - 265V Frequency Range: 50 - 60Hz
LED Color: WW/NW/CW Beam Angle: 120°
High Light:

Ra70 Aluminum Led Street Light

,

30w Aluminum Led Street Light

,

Ra70 30 watt street light

ZHSL-18-80 80w Outdoor Led Parking Lot Light Fixtures IP66 644*269*203mm Size Led Street Light



Product Description

*ZHSL-18 family is a high-performance street light available in twosize

*ZHSL-18-80 is the small one

*The luminous will be at least 120lm/w

*Product Size:644*269*203mm

*Finish:power coating,general colour will be :double grey/sandy black/matt silver



Product Specification

*Item No.:ZHSL-18-80

*Input Wattage:80W

*Color Temperature:3000-6500K

*Color Rendering Index:Ra≥70

*Led Lifetime:50000h

*Protection Grade:IP66

*Installation Pipe Diameter:∅60mm

*NW/GW:6.0/6.5kgs

*Packing Size:57*31*22cm



Product Material

*Die casting aluminum body

*Ultra clear tempered glass and PC lens



Product Specification



Product Code ZHSL-18-80 ZHSL-18-150
Input Wattage 80W 150W
Color Temperature 3000-6500K 3000-6500K
Luminous Flux 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h
Protection Grade IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm
Installation Height 6-10m 8-12m
Net Weight 6.0kgs 7.4kgs
Gross Weight 6.5kgs 8.0kgs
Packing Size(cm) 57*31*22 67*35*22
Product Size(mm) 644*269*203 740*308*207

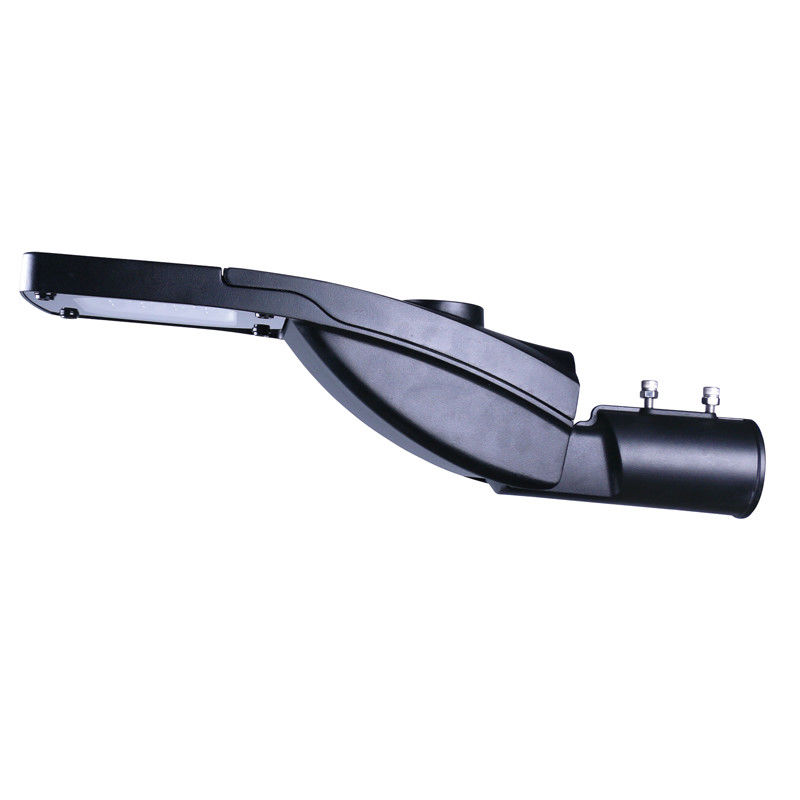

Product Picture



30w Ra70 Aluminum Led Street Light For Public Lighting 0





Line Drawing



30w Ra70 Aluminum Led Street Light For Public Lighting 1



Equipment



ZHSL-19-50  50W  ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING



Exihibition



30w Ra70 Aluminum Led Street Light For Public Lighting 3







Main Features

1. High pressure die cast aluminium alloy housing. Anti-corrosion with Electrophoresis process.

2. High performance design with 5050 LED source and exclusive Lens.The light transmittance up to 98%. Luminous efficacy up to 160-170lm/w

3. Type I,Type II,Type III lens optional. Uniform light distribution apply to different street light project.

4. Excellent operating temperature -40°C ~ 50°C

5. Replaceable and upgradeable modular design easy assembly easy installation and easy maintenance.

6. Green product,no UV or IR radiation,no mercury pollution.Passed IEC62471 test.

7. -15 ~ +15° angle adjustable and applicable different mounting arm.

8. With Excellent housing design reach IP66/IK09 rating.

9. Vibration resistant and Surge protection 10KV/20KV.

10. Easy replacement of the entire LED module and electronic system by removing the top cover.

11. Double Clip on closure,"Plug and Play" system suitable for SKD .

12. LEDs with multi-chips Package has high lumen,stable performance,low light failure and no dead lights.

13. Dimming and smart lighting system available upon request.

14. CE,Rohs,CB,LM-79,LM-80 approved.

15. Life-span over 50,000 hours,5 years warranty.



Trading Conditions

1. Payment term: 30% deposit by T/T and 70% before delivery or against Copy of BL.

2. Delivery time: 25 days

3. Samples time: 7 days.

4. Shipping terms: FOB Ningbo.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.



FAQ:



Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.

And if you have the tech to make design yourself , we can provide the IES files for you.



Q5.I have a street/high way project,what's your suggestion?

Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
