Product Details:
Payment & Shipping Terms:
|
| Material: | Die Casting Aluminum | Wattage: | 150W |
|---|---|---|---|
| CCT: | 3000-6500K | Efficiency: | >120lm/w |
| CRI: | >70 | IP: | 66 |
| Highlight: | outdoor light housing,led street light enclosure |
||

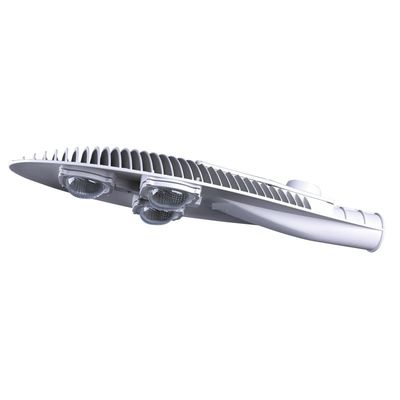

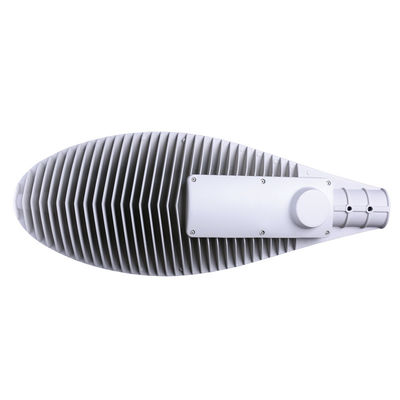

Aluminum Die Casting 100-120W Outdoor LED Street Light Housing / Street Lighting Fixture
Product Specification:
| Product Code | ZHSL-10-50 | ZHSL-10-100 | ZHSL-10-120 | ZHSL-10-180 |
| Input Wattage | 50W | 100W | 120W | 180W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 8800-9600lm | 13200-14400lm | 19800-21600lm | 18900-21600lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ | -40 50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 5-8m | 6-10m | 8-12m | 10-14m |
| Net Weight | 3.8kgs | 5.5kgs | 6.5kgs | 8.5kgs |
| Gross Weight | 4.2kgs | 6.0kgs | 7.0kgs | 9.0kgs |
| Packing Size(mm) | 545*230*115 | 665*300*140 | 750*280*220 | 865*360*180 |
| Product Size(mm) | 480*174*95 | 600*235*100 | 700*271*112 | 825*309*113 |
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
We are a professional Die casting factory for around 30years.
