Unverversial used Strong Die Cast Aluminum LED Street Light Housing , Customized Color

Unverversial used  Strong Die Cast Aluminum LED Street Light Housing , Customized Color
Unverversial used  Strong Die Cast Aluminum LED Street Light Housing , Customized Color Unverversial used  Strong Die Cast Aluminum LED Street Light Housing , Customized Color

Large Image :  Unverversial used Strong Die Cast Aluminum LED Street Light Housing , Customized Color

Product Details:
Place of Origin: China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-19-50
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability: 10000PCS/Month.
Detailed Product Description
Wattage: 50w Material: ADC12 Aluminum
Color Temeperature: 3000-6500k Input Voltage: AC90 - 305V
Pipe Diameter: Φ 60MM Luminous Flux: 5500-6250lm
High Light:

outdoor light housing

,

led street light enclosure

YASL-19-50 50W ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING IP66 IK08



Product Description

*YASL-19 family is a high-performance street light available in three size

*YASL-19-50 is the samllest one

*The luminous will be at least 120lm/w

*Product Size:577*233*103mm

*Finish:power coating,general colour will be :double grey/sandy black/matt silver



Product Specification

*Item No.:YASL-19-50

*Input Wattage:50W

*Color Temperature:3000-6500K

*Color Rendering Index:Ra≥70

*Led Lifetime:50000h

*Protection Grade:IP66

*Installation Pipe Diameter:∅60mm

*NW/GW:3.7/4.2kgs

*Packing Size:62*27*15.5cm



Product Material

*Die casting aluminum body

*Ultra clear tempered glass and PC lens



ZHSL-19 Family Product Specification



Product Code ZHSL-19-50 ZHSL-19-80 ZHSL-19-150
Input Wattage 50W 80W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 5500-6250lm 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 4-6m 6-10m 8-12m
Net Weight 3.7kgs 6.2kgs 7.4kgs
Gross Weight 4.2kgs 6.5kgs 8.0kgs
Packing Size(mm) 620*270*155 670*310*155 810*340*155
Product Size(mm) 577*233*103 627*271*103 768*301*104






Product Picture

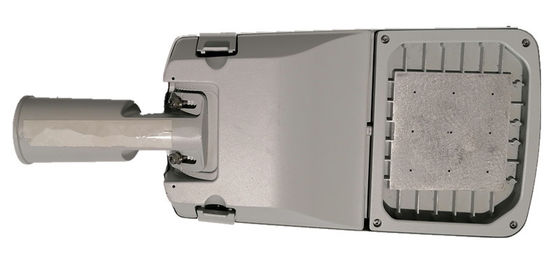

Unverversial used  Strong Die Cast Aluminum LED Street Light Housing , Customized Color 0







Line Drawing



Unverversial used  Strong Die Cast Aluminum LED Street Light Housing , Customized Color 1



Equipment



Unverversial used  Strong Die Cast Aluminum LED Street Light Housing , Customized Color 2

Unverversial used  Strong Die Cast Aluminum LED Street Light Housing , Customized Color 3



Company profile

* A professional origin die casting manufacturer of led outdoor light.

* With more than 2 decades years experience.

* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City

* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.

* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.

* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.

* 6 elite designers & engineers, developing 8-12 new styles every year.

* ISO9001 quality control system.

* CE, RoHS, TUV certificates.

* 5-7years guarantee

* ODM and OEM service are both available to customers domestic and overseas.



Why choose us

1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.

2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.

3.And we also have our own tooling shop and develop department,can help customer develop their own products.
