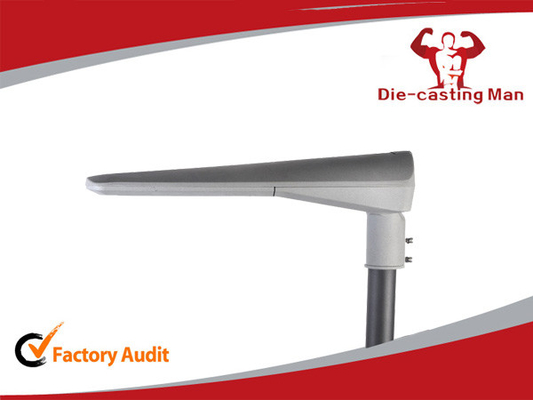

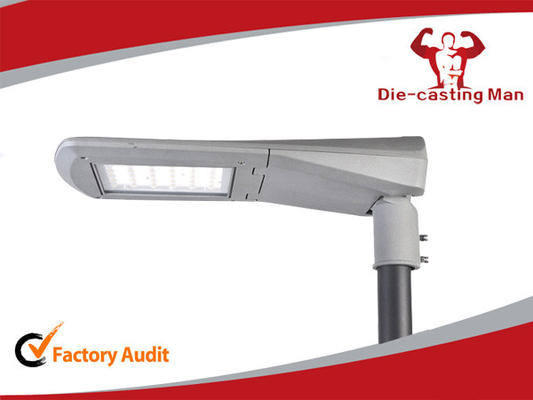

Streamlined Led Street Light Housing Customized Road Light Fixture

Streamlined Led Street Light Housing Customized Road Light Fixture
Streamlined Led Street Light Housing Customized Road Light Fixture
video play

Large Image :  Streamlined Led Street Light Housing Customized Road Light Fixture

Product Details:
Place of Origin: CHINA
Brand Name: Die Casting Man/OEM
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-11
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box with foam, pallet optional
Delivery Time: 7-25 days based on order QTY
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Power: 40W 60W 80W 100W 120W 150W Material: Die Casting Aluminium
Protection Grade: IP66 Ik: IK08
Bracket: Adjustable Open Method: Tool-free Way
High Light:

Streamlined Led Street Light Housing

,

Customized Led Street Light Housing

,

IK08 Aluminum Led Light Housing

120lm/W 40W Die Casting Aluminum Waterproof Led Street Light

Streamlined Led Street Light Housing Customized Road Light Fixture 0



Description

- SL-11 series is a high-performance street lighting available in three sizes. The luminaire is manufactured from high pressure die-casting aluminum.
- It shall have a led efficiency up to 120 lm/w and will be capable of producing up to 18000 luminaire lumens at 4000K finished in Grey or black as standard.


Specificaiton
Item NO. YASL-11-40 YASL-11-50 YASL-11-120
LED Lifetime 50000h 50000h 50000h
Color Temperature 2700-6500K 2700-6500K 2700-6500K
Luminous Flux 4400-4800lm 6900-7500lm 13800-15600lm
LED Quantity (lumileds 3030 led chip) 64pcs 96pcs 192pcs
Power Factor (with Inventronics Power Supply) PF≥0.95 PF≥0.95 PF≥0.95
Input Voltage ((with Inventronics Power Supply) AC 100-240V AC 100-240V AC 100-240V
Color Rendering Index (CRI) Ra>70 Ra>70 Ra>70
International Protection Marking (IP code) IP66 IP66 IP66
Impact resistance (glass) (IK code) IK08 IK08 IK08
Frecquency Range (with Inventronics Power Supply) 50/60Hz 50/60Hz 50/60Hz
Temperature of Working Condition -40℃ - 50℃ -40℃ - 50℃ -40℃ - 50℃
Install Pipe Diameter 60mm 60mm 60mm
Net Weight(kg) 3.5 5.3 8.8
Gross Weight(kg) 3.9 5.8 9.3
Packing size(mm) 600*270*155 685*290*170 850*370*220

Detail picture:
Streamlined Led Street Light Housing Customized Road Light Fixture 1
Streamlined Led Street Light Housing Customized Road Light Fixture 2
Streamlined Led Street Light Housing Customized Road Light Fixture 3
Streamlined Led Street Light Housing Customized Road Light Fixture 4
 Product Size:

 YASL-11-40

Streamlined Led Street Light Housing Customized Road Light Fixture 5
YASL-11-50
Streamlined Led Street Light Housing Customized Road Light Fixture 6
YASL-11-120
Streamlined Led Street Light Housing Customized Road Light Fixture 7

lnstalling Ways:

Both Horizontal and Vertical available, and adjustable angle-10°to+10°

Streamlined Led Street Light Housing Customized Road Light Fixture 8

Company profile

* A professional origin die casting manufacturer of led outdoor light.

* With more than 2 decades years experience.

* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City

* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.

* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.

* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.

* 6 elite designers & engineers, developing 8-12 new styles every year.

* ISO9001 quality control system.

* CE, RoHS, TUV certificates.

* 5-7years guarantee

* ODM and OEM service are both available to customers domestic and overseas.
