Product Details:
Payment & Shipping Terms:
|
| Input Wattage: | 100W | IP Grade: | 66 |
|---|---|---|---|
| IK Rating: | 08 | Packing Details: | Foam And Carton |
| Color: | Gray/Black/White | Product Size: | 719x216x139mm |
| High Light: | Smart Sensor Street Lighting Housing 100W,Adjustable Angle Light Housing,Outdoor Street Lighting Housing IK08 |
||

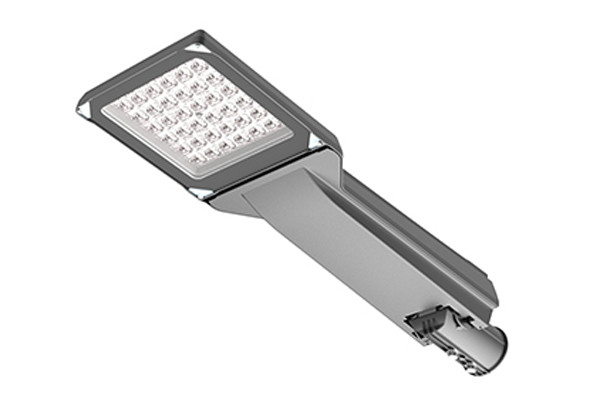

LED Street Light YASL-21

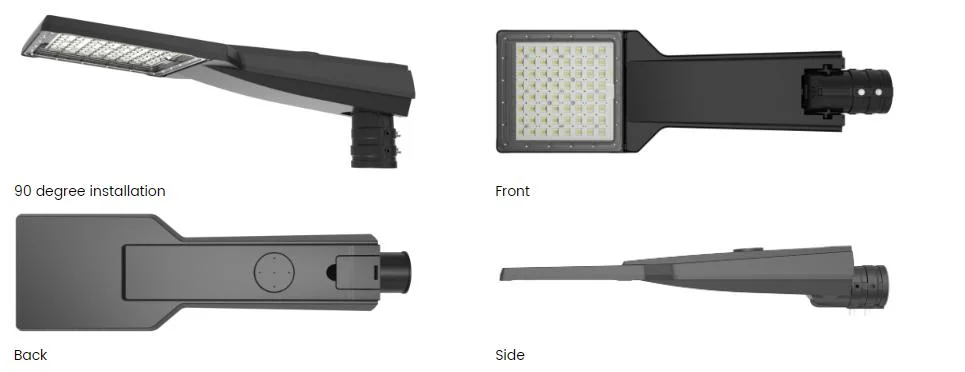

lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-10°to+15°

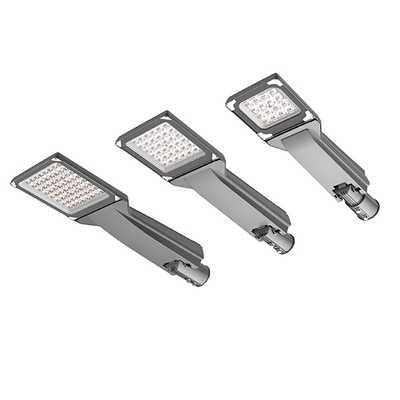

This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
Product Specification
| Product Code | YASL-21-40 | YASL-21-80 | YASL-21-150 | ||||||||
| Input Wattage | 20W 30W 50W 60W | 80W 100W 120W | 150W 180W 200W 240W | ||||||||
| Color Temperature | 2700K 3000K 4000K 5000K 5700K 6500K | ||||||||||
| Luminous Flux | 7800-8400lm | 13000-15000lm | 26000-28000lm | ||||||||
| Input Voltage | AC90~305V | AC90~305V | AC90~305V | ||||||||
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | ||||||||
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | ||||||||
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | ||||||||
| Temperature of Working Condition | -40~50ºC | -40~50ºC | -40~50ºC | ||||||||
| Humidity of Working Condition | 20%~90%RH | 20%~90%RH | 20%~90%RH | ||||||||
| LED Lifetime | 50000h | 50000h | 50000h | ||||||||
| Protectin Grade | IP66 | IP66 | IP66 | ||||||||
| Protection level | IK08 IK09 IK10 | ||||||||||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | ||||||||
| Installation Height | 4-8m | 6-12m | 10-14m | ||||||||
| Net Weight | 3.3kgs | 6.2kgs | 7.6kgs | ||||||||
| Gross Weight | 3.8kgs | 6.9kgs | 8.0kgs | ||||||||
| Packing Size(m m) | 660*230*170 | 770*280*180 | 890*320*190 | ||||||||
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S | ||||||||
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M | ||||||||
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |

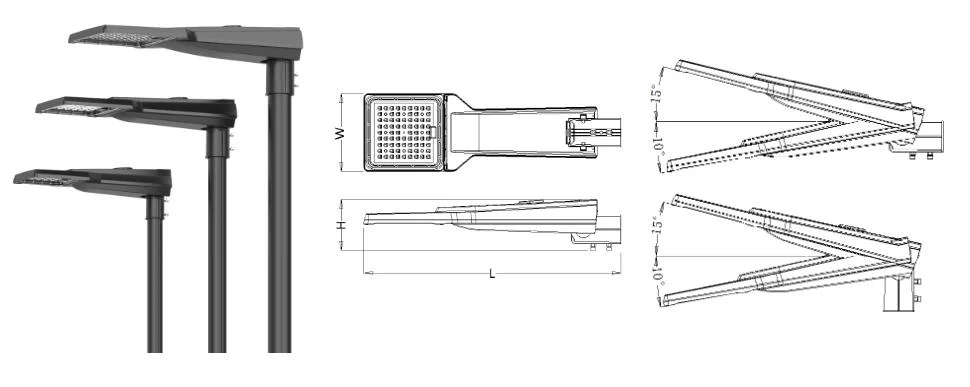

Product Size
| Product Code | YASL-21-40M | YASL-21-80M | YASL-21-150M | ||||||||
| L(mm) | 564 | 719 | 836 | ||||||||
| W(mm) | 165 | 216 | 266 | ||||||||
| H(mm) | 125 | 139 | 155 | ||||||||
Streetlight Requirements - 5 Years Warranty Product
| S.No | Requirement | Requirement | Test Standard |
| Physical requirements | |||
| 1 | Housing type | Heavy-duty rugged pressure die-cast aluminium alloy | ISO 3522 |
| 2 | Cover | Tempered Glass | |
| 3 | Gasket | Silicon Rubber gasket | |
| 4 | Housing wattage range | 30W 40W 50W 60W 80W 100W 150W 200W 220W 240W | |
| 5 | Socket Options | NEMA socket, Photocell, Smart controller, Shorting Cap | |
| 6 | Stainless-steel components | Minimum 316L Grade 316L | |
| 7 | IP Protection | IP66 | IEC 60529 |
| 8 | IK Protection | IK08 | IEC 62262 |
| 9 | Tool free opening | Tool-free access to gear compartment | |
| 10 | Corrosion tests in artificial atmospheres - Salt spray tests | EN/ISO 9227 - Corrosion tests in artificial atmospheres - Salt spray tests for 1000 hours | EN/ISO 9227 |
| 11 | Vibration test | ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration | ANSI C136.31 |
| LED and Optics | |||
| 1 | LED Make | Osram/CREE | |
| 2 | LED Type | >2W High power LED with ceramic base (3V - Single chip die) >2w | |
| 3 | LED driving current | <750mA | |
| 4 | LED life | >100,000 hours @L95 | LM80 and TM21 |
| 5 | Optics Material | UV PC | |
| 6 | Lighting distributions | Type I, II, III, IV | |
| Thermal Requirements | |||
| 1 | Product ambient temperature range | -40°C to 55°C | |
| 2 | Product Storage temperature range | up to 85°C | |
| 3 | LED Case temperature (Tc) | <75°C @50°C ambient temperature | UL1598 |
| 4 | Driver Case temperature range | <85°C @50°C ambient temperature | UL1598 |
| Performance | |||
| 1 | Input Voltage Range | 110V 120V 220V 270 305VAC - 50/60Hz | IEC 60598-2-3 |
| 2 | Power Factor | >0.90 | IEC 60598-2-3 |
| 3 | THD | <20% | IEC 60598-2-3 |
| 4 | Surge Protection | 10KV | |
| 5 | Dimming | 1-10V or 1-10V+DALI | |
| 6 | Appliance class | Class I or Class II | IEC 60598-2-3 |
| 7 | CCT | 3000K/4000K/5700K | ANSI C78.377A |
| 8 | CRI | >70Ra | ANSI C78.377A |
| 9 | MacAdam | <3 Step Binning | ANSI C78.377A |
| 10 | Product life | >100,000 hours @L80 | TM28 |
| 11 | Lumen efficacy As per LM-79 | ≥ 160lm/W (25°C ambient temperature) | LM-79 |
| 12 | Lumen efficacy As per LM-82 | Not more than 5% difference form LM79 result | LM-82 |
| 13 | LED module connector and wire joint connectors | UL approved | IEC 60598-2-3 |
| 14 | Electrical wires between Driver and LED modules and NEMA socket and driver | Must be UL approved | IEC 60598-2-3 |
