Lora Smart Control LED Street Light Housing Glass Frame IP65 Waterproof

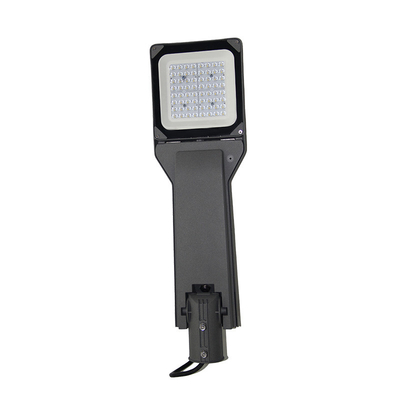

Large Image : Lora Smart Control LED Street Light Housing Glass Frame IP65 Waterproof

Product Details:

Place of Origin:	China
Brand Name:	Die casting man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-21-80

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	foam filing/pc
Delivery Time:	35days after deposit
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000PCS/Month.

Contact Now

Detailed Product Description

Input Wattage:	100W	IP Grade:	66
IK Rating:	08	Packing Details:	Foam And Carton
Color:	Gray/Black/White	Product Size:	719x216x139mm
Highlight:	Lora Smart Control Led Light Housing , IP65 Waterproof LED Street Light Housing , IK08 Street Light Housing

LED STREET LGIHT SL-21

Product Description:

Code	YASL-21-80
Power	100W
Color Temperature	3000-6500K
Efficiency	＞120LM/W
Voltage	AC100-240V
Power Factor	PF≥0.95
CRI(Ra)	Ra≥70
Ambient Temperature	-40-50℃
Ambient Humidity	20%-90%RH
Lifetime(hrs)	50000
IP Rate	IP66
Installation Pipe Diameter	Φ50/60mm
Installation Height	6-10m
Net Weight	6.45kg
4.27Gross Weight	7.2kg
Packing Size(mm)	770265180

Product Code	YASL -21A-40	YASL -21A-80	YASL -21A-150
Input Wattage	50W	100W	150W
Color Temperature	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	6500-7200 lm	13000-14500lm	19500-21500lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40-50℃	-40-50℃	-40-50℃
Humidity of Working Condition	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66
Installation Pipe Diameter	⌀50-60mm	⌀50-60mm	⌀60-76mm
Installation Height	4-8m	6-10m	8-14m
Net Weight	3.65Kgs	6.45Kgs	7.4Kgs
Gross Weight	4.27Kgs	7.2Kgs	8.8Kgs
Packing Size(mm)	615×215×165	770×265×180	885×315×195

Product name	High Quality different colors input wattage 120w IP66 led street light
POWER	30W 50W 80W 100W 120W 150W 200W
Material:	body made from die-casting aluminum, coated with UV and corrosion resistance coataing, suitable for pole top mounting with symmetrical light beam. All exposed metal parts (e.g. screws) are with corrosion resistance.
Color Temperature	2700K, 3000K, 4000K, 5700K, 6500K
Body COLOR	Double gray, Sandy black ,Silver, other Ral no. available
Size:	564165125mm
Input Voltage	AC90-305V
Protection Grade	IP66
Clr Rendering index	Ra≥70
OEM,ODM	Welcome
MOQ	no requirement
Sample Lead Time	7-15days
Payment Terms	LC at sight or T/T 30% in advance ,balance against shipping documents
FOB	NINGBO/SHANGHAI
Production Time	30-40days according to order quantity

Input Voltage(V)	AC 100-240V
Lamp Luminous Flux(lm)	120-160 lm/W
CRI (Ra>)	70
Working Temperature(℃)	-30℃ - +50℃
Power Supply	AC
Material	Die-casting Aluminum
LED Chip	Lumiled 3030
LED Driver	/ Meanwhile/ Inventronics/ Sosen
Freqency range	50HZ-60HZ
Power factor	>0.95
Storage temperature	-30℃ - +50℃
Power efficiency	>90%

Certifications

Exhibition

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit for led light order?
A: Regular 100 MOQ and we accept small order quantity from beginning.
Q4. Do you supply OEM and ODM service
A: Yes. we are.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q6: Do you supply empty house only without LED and driver.
A: Yes, we are.
