NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsOutdoor LED Street Lights

All In One Street Light Housing Lithium-Ion Lifepo4 Battery Solar Street Light

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

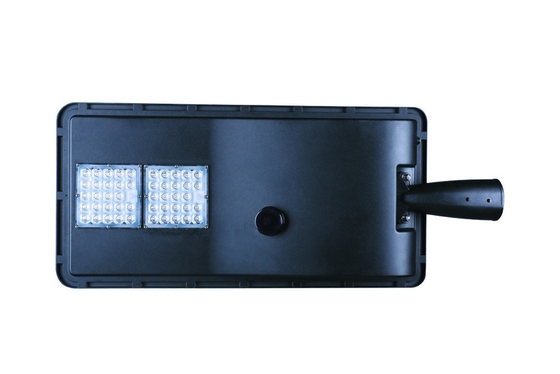

All In One Street Light Housing Lithium-Ion Lifepo4 Battery Solar Street Light

All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light
All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light

Large Image :  All In One Street Light Housing Lithium-Ion Lifepo4 Battery Solar Street Light

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DIE-CASTING MAN
Certification: CE,ROHS, ENEC, CB
Model Number: ZHSL-16-20
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: foam with carton box
Delivery Time: 10-30days
Payment Terms: T/T, L/C
Supply Ability: 5000PCS / Month
Detailed Product Description
Wattage: 25W 30W 35W 40W Pretection Grade: IP66
Operating Time: 4-5days Battery: Lithium-ion Li Fepo4 Battery
Solar Panel: Mono-crystalline Silicon Solar Panel Installation Pipe Diameter: 60mm
High Light:

Lifepo4 Battery Street Light Housing

,

IP66 Solar Street Light

,

Intelligent Street Light Housing Waterproof




All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light 0



Features:
* Flexible selection of high lumen and high luminous flux, customized the best solution of luminaire according

to local sunshine.
* Integreated design, easy installation, each component can be easily replaced and maintained,saving cost.
* The intelligent controller matches the PIR infrared or intelligent microwave sensor to ensure the effective

lighting time of the lamp.
* Adopting high efficiency monocrystalline silicon and conversion rate of 19.8% solar panels, grade A1 32650

battery cells excellent Lithium iron phosphate battery.
* Using special plug connector, color design Fool - proofing, with anti -wrong connection function.
* Adopting adjustable mounted arm, can be adjusted in many angles, suitable for installation requirments of different latitude regions and different type poles.
* Professional waterproof design, protection grade IP66.
* Wind resistance rating 65m/s.



Product Specification:
Product code
YASL-16-10
YASL-16-20
Nominal power
10-20W
25-40W
LED Quantity(LUXEON 3030 2D)
48-96 pcs
96-192 pcs
Color rendering index
Ra≥70
Ra≥70
Luminous Flux
1800-3600 lm
4200-7200 lm
Operating time(Intelligent mode)
4-5 days
4-5 days
Induction distance
12m
8-12m
Mono-Crystalline Silicon solar panel
16-21W
33W
Lithium-ion Li Fepo4 batteries
12.8V,6-12AH
12.8V,16AH
Temperature of Working Condition
-10-60℃
-10-60℃
Humidity of Working Condition
10%-90%RH
10%-90%RH
Warranty
3 Years
3 Years
Protecting Grade
IP66
IP66
Installation Pipe Diameter
60mm
60mm
Installation Height
4-6m
5-7m
Net Weight
5.5kg
7.5kg
Gross Weight
6.0kg
8.0kg
Packing Size
700*350*160mm
905*415*190



Pictures:

All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light 1
All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light 2

Installation:

All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light 3

All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light 4

Lighting distribution:

All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light 5All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light 6All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light 7All In One Street Light Housing Lithium-Ion Lifepo4 Battery  Solar Street Light 8





Contact Details
NingBo Die-Casting Man Technology Co.,ltd.

Contact Person: Ms. Jenny

Tel: 0086 13777291746

Fax: 86-574-65579302

Send your inquiry directly to us (0 / 3000)
