Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Die Casting Body | Input Voltage: | AC110-240V |
|---|---|---|---|
| Frequency Range: | 50/60Hz | LED TYPE: | SMD 3030 5050 |
| Housing Color: | Grey Black Silver | Warranty: | 5years |
| High Light: | Die Casting Aluminum Urban LED Lighting,SMD 5050 Urban LED Lighting,60w Urban Outdoor Lighting |
||

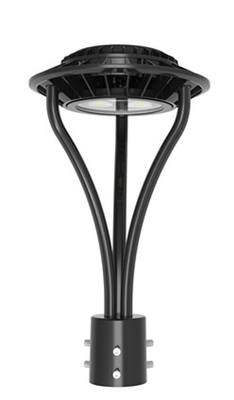

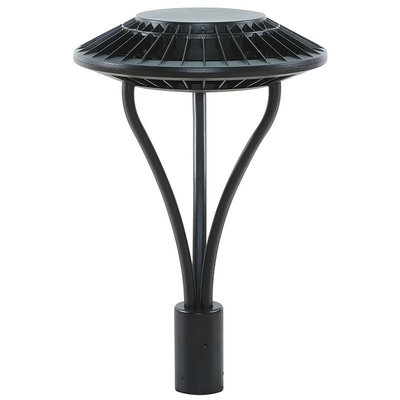

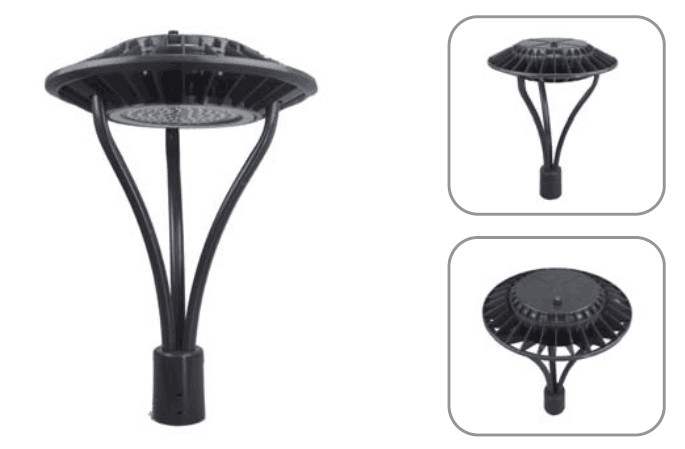

30w 50w 60w 80w SMD 3030 5050 die casting aluminum Urban LED Lighting
Advantage:
1.We are Die-casting Factory,can offer shortly delivery time.
2.We are manufacturer who can customized the holes for PCB.
3.We owned the tools.so we can make 3D logo for you
4.We do the painting by ourselves.you can choose any color you want.
Specifications
|
Model Number |
YAUB-04 |
|
|
Electrical Specifications |
LED QTY |
|
|
TotaLPower consumption |
80W |
|
|
Operation Voltage |
110-240VAC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
10000 lm - Initial |
|
|
12000 lm - Maintain |
|
|
Led Luminous Efficiency |
>130LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Beam Angle |
60/90 degree |
|
|
Mechanical Specifications |
IP Rating |
IP66 |
|
Warranty |
5Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
Patented anti-glare optic lense |
|
|
Fixture Dimension |
617.6*φ348.4MM |
|
|
Fixture Weight |
4.00kgs |
|
|
Packing Information |
Packing Type |
1pcs /ctn |
|
Packing Dimension |
430*450*180mm |
|
|
Packing Weight |
4.50kgs |
|
FAQ
Q1. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 15-20 days for order quantity more than.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about Payment?
A: Bank Transfer (TT), Paypal, Western Union, Trade assurance; 30% the amount should be paid before producing, the balance 70% of the payment should be paid before shipping.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production and delivery.
Q5. Is it OK to print my logo on led light product?
A: Usually it is not available, it has the limitation for MOQ. And customers need to confirm the design firstly on our sample.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
