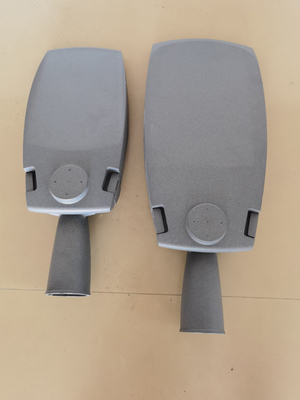

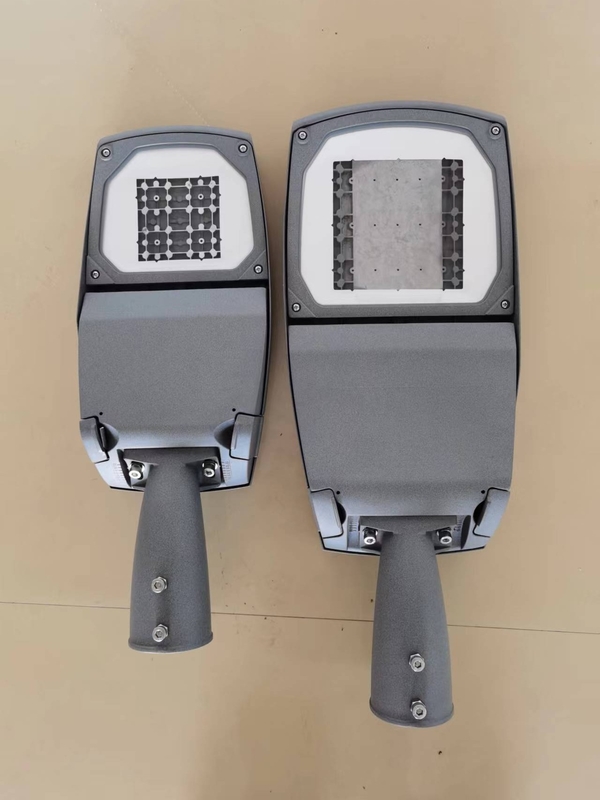

Dust Proof Diecasting Aluminium LED Street Light Housing 15 Degree Tilt Adjustable

Large Image : Dust Proof Diecasting Aluminium LED Street Light Housing 15 Degree Tilt Adjustable

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-25-40

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1pc/bag/foam/carton, pallet optional
Delivery Time:	7-10 days based on order QTY
Payment Terms:	T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Power:	30W 40W	Material:	Aluminium
Color:	Customized	Warranty:	3 - 5 Years
Waterproof:	IP66	Efficiency:	150lm/w
Highlight:	Dust Proof LED Street Light Housing , Adjustable LED Street Light Enclosure , IP66 Tilt LED Light Housing

Products Description

Model	SL-25-40	SL-25-100	SL-25-150	SL-25-240
Input Wattage (W)	30/40/50/60	80/100/120	150/180/200	240/320
Installation Pipe Diameter	φ45/60mm	φ45/60mm	φ45/60mm	φ60/76mm
Installation Height (m)	3-8	6-10	8-12	10-14
Input Voltage	90~305Vac
Frequency Range	50/60Hz
Power Factor	≥0.9
Light source	LED
Driver	Inventronics
	Meanwell (optional)
	other brand of driver(upon request)
Luminaire efficacy (lm/W)	130-170
Color Temperature	4000K (3000K/5000K,5700K upon request)
Color rendering index	≥70
Diming	Dali (optional)
	1-10V (optional)
	PWM (optional)
	Smart control management system (upon request)
The environment temperature	-40～45℃
Humidity of Working Condition	20%～90%RH
Protection Grade	IP66
IK Protection level	IK08
Standards & Certifications	ENEC
	CB
	CE
	Rohs
Options	Photocell
	Surge protection
	External cable (length upon request)
	Smart control device
Metarials	Housing: ADC12 die-cast aluminum
	Cover: Toughened Glass
	External Screws: 304 stainless screws
Color	Grey/Black ( other upon request)

Model	SL-25-40	SL-25-100	SL-25-150	SL-25-240
Input Wattage (W)	30/40/50/60	80/100/120	150/180/200	240/320
Installation Pipe Diameter	φ45/60mm	φ45/60mm	φ45/60mm	φ60/76mm
Installation Height (m)	3-8	6-10	8-12	10-14
Input Voltage	90~305Vac
Frequency Range	50/60Hz
Power Factor	≥0.9
Light source	LED
Driver	Inventronics
	Meanwell (optional)
	other brand of driver(upon request)
Luminaire efficacy (lm/W)	130-170
Color Temperature	4000K (3000K/5000K,5700K upon request)
Color rendering index	≥70
Diming	Dali (optional)
	1-10V (optional)
	PWM (optional)
	Smart control management system (upon request)
The environment temperature	-40~45ºC
Humidity of Working Condition	20%~90%RH
Protectin Grade	IP66
IK Protection level	IK08
Standards & Certifications	ENEC
	CB
	CE
	Rohs
Options	Photocell
	Surge protection
	External cable (length upon request)
	Smart control device
Meterials	Housing: ADC12 die-cast aluminum
	Cover: Toughened Glass
	External Screws: 304 stainless screws
Color	Grey/Black ( other upon request)

Dust Proof Diecasting Aluminium LED Street Light Housing 15 Degree Tilt Adjustable 0

FAQ

Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
