Product Details:
Payment & Shipping Terms:
|
| Body: | ADC12 Aluminum | Input Wattaage: | 30 /40 / 50W |
|---|---|---|---|
| Color Temperature: | 2700K 3000k 400k 5700k | LED Lifetime: | 50000h |
| LED: | 3030 Or 5050 | Product Size (mm): | 600x260x165 |
| High Light: | AC 220V LED Public Lighting,Aluminum LED Road Light 50W,Adjustable Angle Outdoor LED Public Lighting |
||

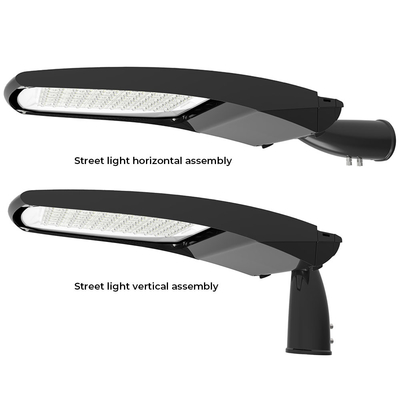

lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-15°to+15°
 |
|
| 90 degree installation | Front |
|
|
| Back | Side |
| Product Code | YASL-25-40M | YASL-25-100M | YASL-25-150M | YASL-25-240M | ||||||
| Input Wattage | 30W | 40W | 50W | 60W | 100W | 120W | 150W | 200W | 300W | |
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ45/60/76mm | ||||||
| Luminous Flux | 3900-4500lm | 5200-6000 | 6500-7500lm | 7800-9000lm | 13000-15000lm | 15600-18000lm | 19500-22500lm | 26000-30000lm | 31200-36000lm | |
| Color Temperature | 2700～6500K | |||||||||
| Input Voltage | AC90～305V | |||||||||
| Frequency Range | 50/60Hz | |||||||||
| Power Factor | PF≥0.95 | |||||||||
| color rendering index | Ra≥70 | |||||||||
| Temperature of Working Condition | -40～50℃ | |||||||||
| Humidity of Working Condition | 20%～90%RH | |||||||||
| LED Lifetime | 50000h | |||||||||
| Protectin Grade | IP66 | |||||||||
| Protection level | IK08/09/10 | |||||||||
| Installation Height | 3-6m | 3-6m | 4-6m | 4-8m | 6-10m | 8-12m | 8-12m | 10-14m | 10-14m | |
| Net Weight | 2.9kgs | 2.9kgs | 2.9kgs | 3.8kgs | 3.8kgs | 5.7kgs | 5.7kgs | 7.2kgs | 7.2kgs | |
| Gross Weight | 3.4kgs | 3.4kgs | 3.4kgs | 4.0kgs | 4.0kgs | 6.0kgs | 6.0kgs | 7.5kgs | 7.5kgs | |
| Packing Size(m m) | 555*210*143 | 680*270*160 | 820*320*160 | 920*370*180 | ||||||
This Led light is a high-performance street lighting available in four sizes:40W/100M/150/200W.
The lunimaire is manufactured from high quality pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
It up to 26000 luminaire lumens at 4000K finished in Grey or black as standard and 5 years warranty.
Standards & Certification:ENEC,CB,CE,Rohs.
|
|
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S |
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M |
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
| Product Code | YASL-25-40M | YASL-25-100M | YASL-25-150M | YASL-25-240M | ||||||
| L(mm) | 555 | 645 | 790 | 890 | ||||||
| W(mm) | 210 | 257 | 305 | 361 | ||||||
| H(mm) | 143 | 147 | 147 | 163 | ||||||
| S.No | Requirement | Requirement | Test Standard | Supplier Answers |
| Physical requirements | ||||
| 1 | Housing type | Heavy-duty rugged pressure die-cast aluminium allo | ISO 3522 | |
| 2 | Cover | Tempered Glass | ||
| 3 | Gasket | Silicon Rubber gasket | ||
| 4 | Housing wattage range | 30W ~240W | ||
| 5 | Socket Options | NEMA socket, Photocell, Smart controller, Shorting Cap | ||
| 6 | Stainless-steel components | Minimum 316L Grade 316L | ||
| 7 | IP Protection | IP66 | IEC 60529 | |
| 8 | IK Protection | IK08 | IEC 62262 | |
| 9 | Tool free opening | Tool-free access to gear compartment | ||
| 10 | Corrosion tests in artificial atmospheres — Salt spray tests | EN/ISO 9227 - Corrosion tests in artificial atmospheres — Salt spray tests for 1000 hours 1000 小时 | EN/ISO 9227 | |
| 11 | Vibration test | ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration | ANSI C136.31 | |
| LED and Optics | ||||
| 1 | LED Make | Osram/CREE/Lumileds | ||
| 2 | LED Type | >2W High power LED with ceramic base (3V - Single chip die) | ||
| 3 | LED driving current | <750mA | ||
| 4 | LED life LED | >100,000 hours @L95 | LM80 and TM21 | |
| 5 | Optics Material | UV PC | ||
| 6 | Lighting distributions | Type I, II, III, IV | ||
| Thermal Requirements | ||||
| 1 | Product ambient temperature range | -40°C to 55°C | ||
| 2 | Product Storage temperature range | up to 85°C | ||
| 3 | LED Case temperature (Tc) | <75°C @50°C ambient temperature | UL1598 | |
| 4 | Driver Case temperature range | <85°C @50°C ambient temperature | UL1598 | |
| Performance | ||||
| 1 | Input Voltage Range | 110 ~ 270VAC - 50/60Hz | IEC 60598-2-3 | |
| 2 | Power Factor | >0.90 | IEC 60598-2-3 | |
| 3 | THD | <20% | IEC 60598-2-3 | |
| 4 | Surge Protection | 10KV | ||
| 5 | Dimming | 1-10V or 1-10V+DALI | ||
| 6 | Appliance class | Class I or Class II | IEC 60598-2-3 | |
| 7 | CCT | 3000K/4000K/5700K | ANSI C78.377A | |
| 8 | CRI | >70Ra | ANSI C78.377A | |
| 9 | MacAdam | <3 Step Binning | ANSI C78.377A | |
| 10 | Product life | >100,000 hours @L80 | TM28 | |
| 11 | Lumen efficacy As per LM-79 | ≥ 160lm/W (25°C ambient temperature) | LM-79 | |
| 12 | Lumen efficacy As per LM-82 | Not more than 5% difference form LM79 result | LM-82 | |
| 13 | LED module connector and wire joint connectors | UL approved | IEC 60598-2-3 | |
| 14 | Electrical wires between Driver and LED modules and NEMA socket and driver | Must be UL approved | IEC 60598-2-3 | |
