150w Industrial UFO High Bay Lights Coated IK08 For Ceiling Wall

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

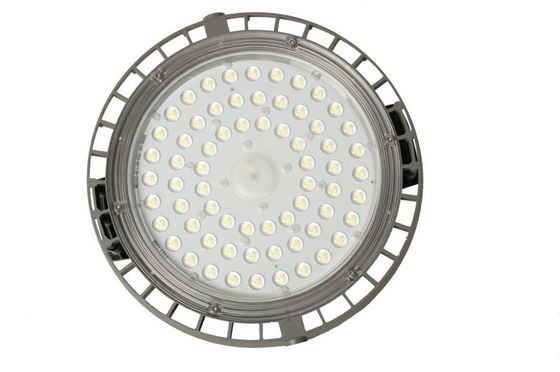

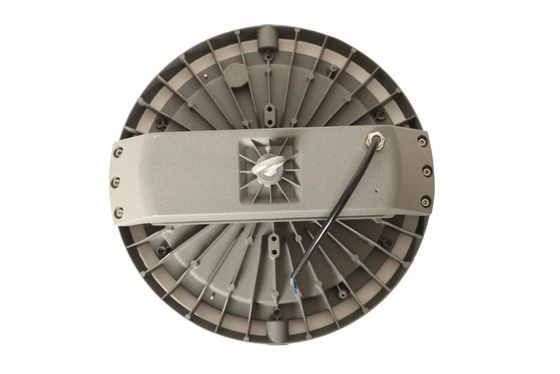

150w Industrial UFO High Bay Lights Coated IK08 For Ceiling Wall

150w Industrial UFO High Bay Lights Coated IK08 For Ceiling Wall
150w Industrial UFO High Bay Lights Coated IK08 For Ceiling Wall
video play

Large Image :  150w Industrial UFO High Bay Lights Coated IK08 For Ceiling Wall

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YHHB-04-150
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 388 x 388 x 198mm , 1 pc packed into Netual Brown box
Delivery Time: 7-30 days base on order quantity
Payment Terms: T/T
Supply Ability: 10000PCS/Month.
Detailed Product Description
Model No.: YHHB-04-150 Power: 150w
Material: Die Casting Aluminum Body + Module Lens Light Angle: 60°、90°、120°
Net Weight: 3.5kgs Gross Weight: 4.5kgs
Color Temperature: 3000k 4000k 5000k 6500k Power Factor: PF≥0.95
High Light:

150w Industrial UFO High Bay Lights

,

IK08 Coated UFO High Bay Lights

,

Ceiling Wall Led Ufo Lights

150w Industrial UFO High Bay Lights Black Coated IK08 For Ceiling Wall led high bay light fixtures



Product Description:



Item No. YAHB-05-100 YAHB-05-150 YAHB-05-200
Wattage 100W 150W 200W
Voltage 100-277V 100-277V 100-277V
Dimension L282*H115mm L342*H119mm L403*H128mm
Luminous efficacy >130lm/w >130lm/w >130lm/w
LED Qty 144PCS 210PCS 288PCS
LED Type SMD3030 SMD3030 SMD3030
PF >0.95 >0.95 >0.95
Beam Angles 60°/90°/120° 60°/90°/120° 60°/90°/120°
Driver Sosen/Meanwell Sosen/Meanwell Sosen/Meanwell
Options 1-10V, Daylight Sensor 1-10V, Daylight Sensor 1-10V, Daylight Sensor
IP Rating IP65 IP65 IP65
Color Temp 3000K – 6000K 3000K – 6000K 3000K – 6000K
Working Temp -20~ +60℃ -20~ +60℃ -20~ +60℃
Warranty 5 years 5 years 5 years
Material Aluminum Aluminum Aluminum

Industrial LED luminaires for ceilings and walls



When choosing a luminaire, it is necessary to pay attention to the angle of direction of the light and the method of its diffusion in order to provide a comfortable and bright light for working in the room.

Thanks to the correct calculations, you can use fewer light sources without losing quality and reduce the cost of lighting installation.

Energy-saving industrial lamps LSP and LPP

Luminaires with LED lamps are rapidly replacing their fluorescent counterparts from industrial lighting. The new models do not require maintenance and replacement of bulbs, and are capable of operating up to 50,000 hours continuously without the risk of failure and consuming a minimum amount of electricity. LSP luminaires have a very high efficiency, and despite the slightly overpriced in comparison with analogs, they can pay off within a few months of active operation.

150w Industrial UFO High Bay Lights Coated IK08 For Ceiling Wall 0

Advantages of LED Industrial Luminaires

In industrial conditions, replacing a luminaire with a mercury lamp with LED technology will significantly save on lighting. In addition, such products allow you to change the luminous flux and power depending on the requirements, which can be very important in warehouse complexes and industrial areas.



  • Due to high efficiency indicators, the load on the network is reduced, and the power can be directed to the operation of other systems;
  • LED lamps will last more than 50,000 hours and have a long-term quality guarantee from the manufacturers;
  • The payback period of LED lamps does not exceed a period of 1.5-2 years, after which they will begin to bring net profit;
  • The degree of protection of the luminaires will protect them from dust, moisture, water and corrosive environments. Here you will find protection classes from IP44 to IP67;
  • Flicker-free, which significantly reduces the load on the eyesight of the staff and increases labor productivity;
  • Uniform lighting;
  • No additional requirements for disposal, since lead and mercury are not used in production.
  • 150w Industrial UFO High Bay Lights Coated IK08 For Ceiling Wall 1
  • First of all, please allow me to introduce our company Ningbo die-casting man to you:
    Die-casting Man is one of the lighting manufacturers with design ,development and production. We understand that lighting technology has to be practical,so we always design and develop with our customers needs in mind.
  • 150w Industrial UFO High Bay Lights Coated IK08 For Ceiling Wall 2
