Product Details:
Payment & Shipping Terms:
|
| Material: | Die Casting Aluminum | Watt: | 100w 150Q 200Q |
|---|---|---|---|
| LED Color: | 2700-6500K | Fixture Color: | Black,Grey,Blue,White |
| CRI: | >70 | Frequency Range: | 50 - 60Hz |
| Working Ambient Temperature: | -30℃ - 50℃ | Working Ambient Humidity: | 10% - 90% |
| Input Voltage: | AC85 - 265V | Warranty: | 5years |
| High Light: | LED High Bay Light Fixtures 100W,Aluminium LED High Bay Lights 6500K,Subway High Bay Light Fixtures |
||
Application:
Factory, Gas station, Subway, Warehousie, etc.
Product Specification
| Item NO. | YSHB-05-100 | YSHB-05-150 |
YSHB-05-200 |
| Product size | 282*115mm | 342*119mm | 403*128mm |
| LED Quantity | 144pcs | 210pcs | 288pcs |
| Rated Power | 100W | 150W | 200w |
| Color Temperature | 3000/4000/6500 | 3000/4000/6500 | 3000/4000/6500 |
| Initial Luminous Flux | 14000Lm | 19600Lm | 28000Lm |
| Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz |
| Input voltage | 100-277V AC | 100-277V AC | 100-277V AC |
| Power Factor | PF>0.95 | PF>0.95 | PF>0.95 |
| Color Rendering Index | Ra>7080 | Ra>70/80 | Ra>70/80 |
| Temperature Working Condition | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
| Humidity of Working Condition | 10-90% | 10-90% | 10-90% |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP65 | IP65 | IP65 |
| Net Weight | 3.5 kgs | 4.8kgs | 6.5kgs |
| Gross Weight | 4.5kgs | 5.8kgs | 7.5kgs |
| Packing Size | 295*295*165mm | 355*355*165mm | 415*415*175mm |

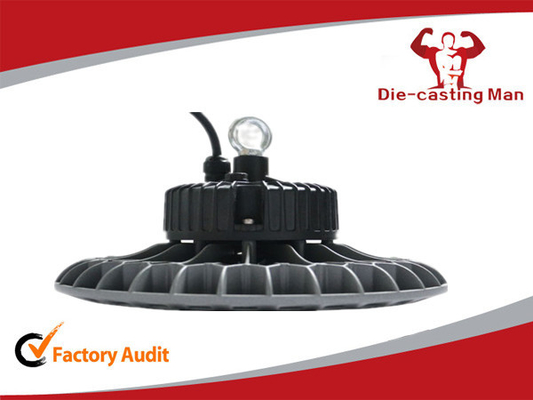

Detail Picture:
Lighting Distribution:
