Product Details:
Payment & Shipping Terms:
|
| Certification: | Ce, EMC, LVD | Material: | Aluminum |
|---|---|---|---|
| Power: | 10w 20w 30w 50w 60w 80w | Input Voltage: | AC200-260V 50/60HZ |
| IP Rating: | IP65 | Application: | Sports Stadiums |
| Led Lifetime: | 30000h | CCT: | 3000~5700K |
| High Light: | 20w Commercial LED Flood Light,IP65 Waterproof Aluminum Flood Light,Die Cast Aluminum LED Flood Light |
||
Company Profile:
Die Casting Man set up a new joint venture company named Ningbo Die Casting Man Energy Co., Ltd.
We are moving into our new big factory on Dajiahe Industrial Zone, Ninghai Town.
Office still available in our old factory No.225 Tanshu Road Ninghai.

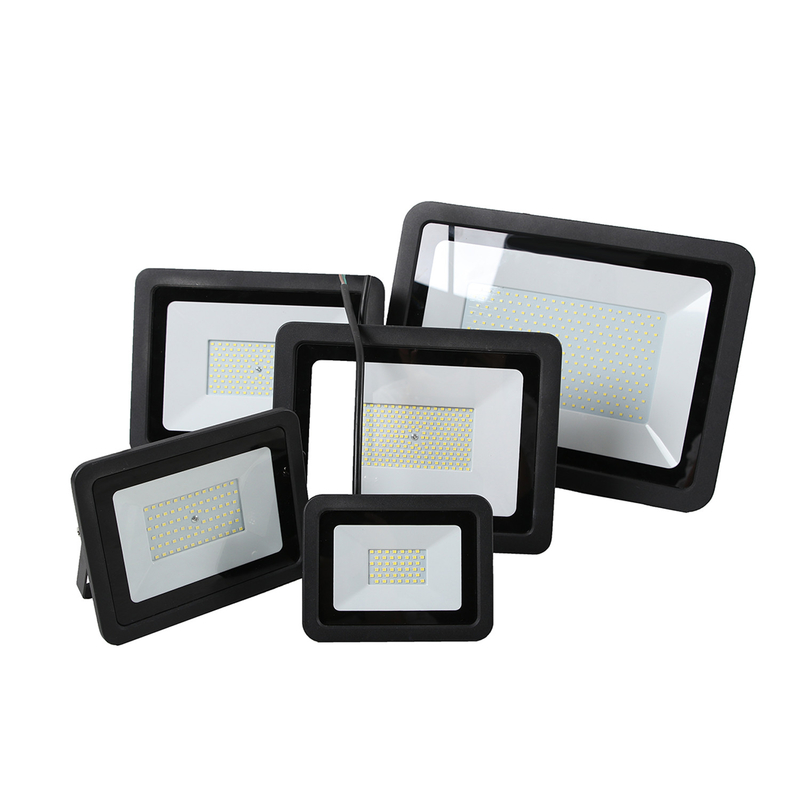

Product Description:
1.TECHNICAL PARAMETERS:
1.This flood light is often used for the projects because of the long lifespan and high quality
2. All power of this design could be detachable.It means the drive could be changed and the other parts such as housing could be reused.The waterproof level is IP65.
3.It is wide range and stable power,so it will prevent flickering.
4.It ectends the usage of die cast aluminum which brings better heat dissipation.
5.The glass is never off,for the edges of the glass are covered with the frame.
6.Can be customized according to customer needs
| Item | Actual Wattage | IP Grade | die casting aliumium Weight(G) | product weight G | Dimension(cm) | Cable | Rendering Index |
| SLFAP81 10W | SMD 10W | IP65 | 71 | 180 | 104*83.4*25.7 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP82 20W | SMD 20W | IP65 | 91 | 250 | 121*95.3*26.1 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP83 30W | SMD 30W | IP65 | 142 | 406 | 161*123.2*29.6 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP85 50W | SMD 50W | IP65 | 267 | 670 | 207*161*31.5 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP810 100W | SMD 100W | IP65 | 502 | 1390 | 269*209*34 | 15CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP815 150W | SMD 150W | IP65 | 963 | 2100 | 330*250*34 | 20CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP820 200W | SMD 200W | IP65 | 1408 | 3000 | 388*288*36 | 20CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP830 300W | SMD 300W | IP65 | 2313 | 4650 | 445*334*45.5 | 20CM H05RN-F3G1.0mm2 rubber cable | 70 |
| SLFAP840 400W | SMD 400W | IP65 | 2935 | 6480 | 490*410*48 | 20CM H05RN-F3G1.0mm2 rubber cable | 70 |
2. FEATURES:
IP65 waterproof/dust proof/explosion proof/IK08
Pure Aluminum shape good at heat dissipation
Angle Bracket,easy to install by drill
Easy replacement and installation
SMD 3030 Ra>70/SDCM<7
50,000 times switching cycle before failure
Total harmonic distortion(THD)<20%
3.Product Dimension
