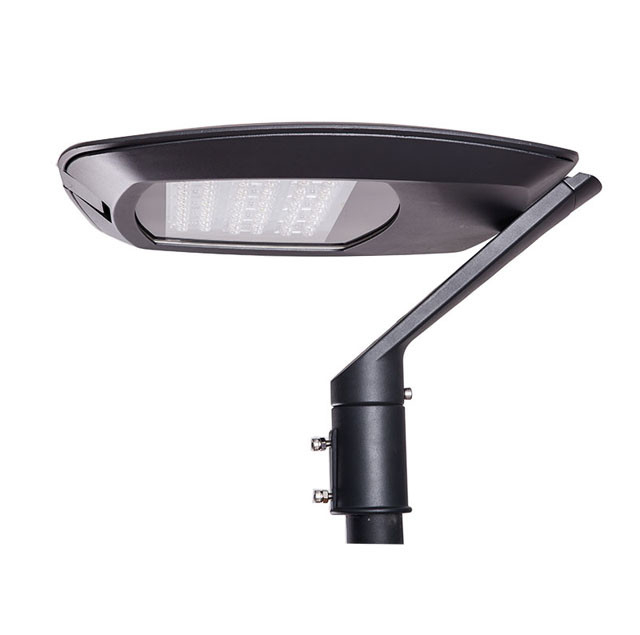

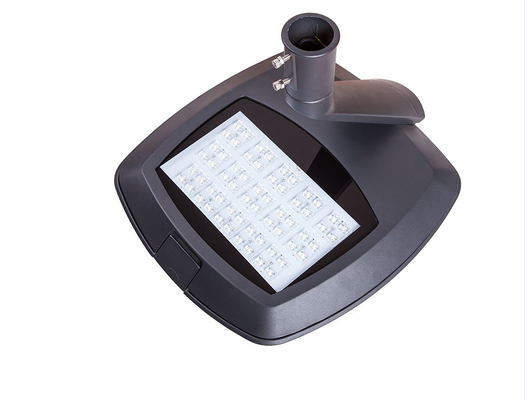

ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light

ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light
ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light

Large Image :  ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light

Product Details:
Place of Origin: Ningbo, CHINA
Brand Name: Die Casting Man/OEM
Certification: CE ROHS
Model Number: YSUB-02 -50
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Carton box with foam
Delivery Time: 5-7days for sampling, 25-35days for mass production
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per month
Detailed Product Description
Material: Die Casting Aluminum Wattage: 50-80W
Color Tem.: 2700-6500K Efficiency: 120 Lm/w
Color Rendering Index: ≥70 Protection Grade: IP65
Input Voltage: AC90-305V Warranty: 5 Years
High Light:

Die Casting Aluminum Urban Light Fixture

,

80w Led Urban Light

,

ADC12 Urban Light Fixture



Product Material



*Die casting aluminum body



*Ultra clear tempered glass



*High transmittance PC lens



Product Specification



Product Code YSUB-02-50 YSUB-02-120
Input Wattage 50-80W 100-150W
Color Temperature 3000-6500K 3000-6500K
Luminous Flux 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h
Protection Grade IP66 IP66
Installation Height 4-8m 6-12m
Net Weight 9.0kgs 12.5kgs
Gross Weight 9.5kgs 13.8kgs
Packing Size(mm) 490*590*155 570*700*165
Product Size(mm) 430*416*191 580*522*390





Product Advantage



*YSUB-02 family is a high-performance street light available in two sizes



*The luminous will be at least 130lm/w



*Finish:power coating.we can make it pass 1000hrs salty spray test



*Housing colour :double grey/sandy black/matt silver as stand.other color can be optional.





Application

Street light.Road.Garden.Park.etc



Detail Picture

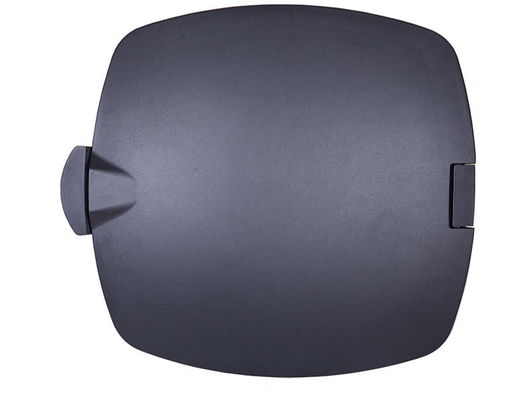

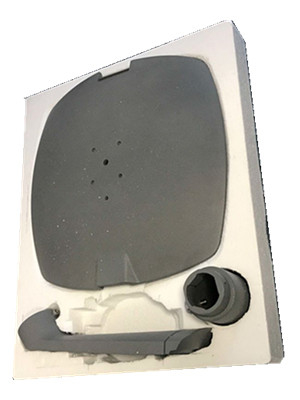

ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light 0

ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light 1

ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light 2











Photometric Data



ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light 3
