Product Details:
Payment & Shipping Terms:
|
Wattage: | 150W | Material: | Aluminum Die Casting Body |
---|---|---|---|
Input Voltage: | AC85 - 265V | Frequency Range: | 50 - 60Hz |
LED Color: | WW/NW/CW | Beam Angle: | 120° |
Color: | Black, Gray, White | ||
Highlight: | 150w Outdoor Led Street Light,16500lm Outdoor Led Street Light,HPS Outdoor Led Street Light |

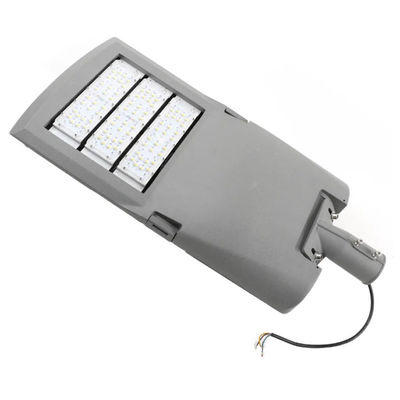

150w Outdoor Led Street Light 16500lm Replace 400w HPS Or HID For Public Lighting
Product Size | IP | Color Temperature | Warranty | ||
Wattage | |||||
SL-20-100 | 100W | 718*371*140mm | IP65 | 2700k-6500k | 5 Years |
SL-20-150 | 150W | 798*371*140mm | |||
SL-20-200 | 200W | 878*371*140mm | |||
SL-20-250 | 250W | 958*371*140mm | |||
SL-20-300 | 300W | 1038*371*140mm |
Product Code | ZHSL-20-100 | ZHSL-20-150 | ZHSL-20-200 | ZHSL-20-250 | ZHSL-20-300 |
Input Wattage | 100W | 150W | 200W | 250W | 300W |
Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
Input Voltage | 140-150lm/w | 140-150lm/w | 140-150lm/w | 140-150lm/w | 140-150lm/w |
Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
Color Rendering Index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
Temperature of Working Condition | —40-50℃ | —40-50℃ | —40-50℃ | —40-50℃ | —40-50℃ |
Humidity of Working Condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
LED Lifetime | 5000h | 5000h | 5000h | 5000h | 5000h |
Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm | Φ60mm | Φ60mm |
Installation Height | 6-10m | 8-12m | 8-12m | 8-12m | 8-12m |
Net Weight | 5.5kgs | 5.8kgs | 6.2kgs | 6.5kgs | 6.9kgs |
Gross Weight | 6.5kgs | 6.8kgs | 7.2kgs | 7.5kgs | 7.9kgs |
Packing Size(mm) | 780*410*175 | 860*410*175 | 940*410*175 | 1020*410*175 | 1100*410*175 |
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.
And if you have the tech to make design yourself , we can provide the IES files for you.
Q5.I have a street/high way project,what's your suggestion?
Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
Feature of Product
1.Special optical lens with tempered glass cover,make the good light distribution and perfect proof (water proof and dust proof)
2.With Surge Projector to protect lamp from up to 10KV/10KA.
3. Knob type, easy installation and maintenance by turn the switch do not need tools to open or close the light cap.
4.Full die-cast aluminum housing to prevent guano.
5.The mounting angle is adjustable. The lamp can be adjusted ±15 degree.
6.It can be matched with photocell , smart controller, timer,0-10V dimming,DALI etc
Our advantage
1. Good supply chain management . We have build a good relationship with many international brand ( Bridgelux , San’an , , Osram , Meanwell , , etc). That will help us get high quality led chip, led driver, lens on time.
2. Professional staffs. We have more than 100 staffs.The workers are skilled.They know the products very well from a screw to the whole product. They know the key point during production process and how to deal with if there is a problem.
3. Advanced equipments. We have many advanced equipments. That will make sure that our products are produced in high standard and strict process.
Application
It is suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
