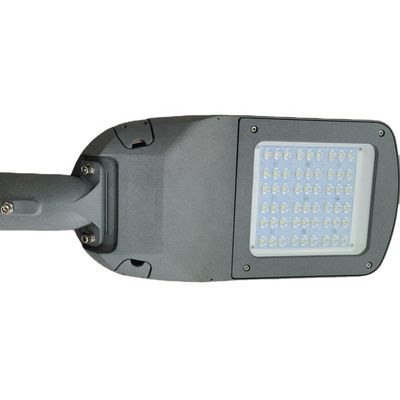

6500K 50mm 3600lm Waterproof Led Street Light

6500K 50mm 3600lm Waterproof Led Street Light
6500K 50mm 3600lm Waterproof Led Street Light 6500K 50mm 3600lm Waterproof Led Street Light 6500K 50mm 3600lm Waterproof Led Street Light 6500K 50mm 3600lm Waterproof Led Street Light

Large Image :  6500K 50mm 3600lm Waterproof Led Street Light

Product Details:
Place of Origin: China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-03-40
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, T/T, L/C
Supply Ability: 10000PCS/Month.
Detailed Product Description
Manufacturer: Die-casting Man Material: Die Casting Aluminum
Wattage: 40w CCT: 3000-6500K
Fixture Color: Black, White, Gray Installation Pipe Dia.: φ50mm
High Light:

3600lm Waterproof Led Street Light

,

3600lm waterproof street light

,

50mm Waterproof Led Street Light

YASL-03 Family Product Specification



Product Description:



Product Code ZHSL-03-40 ZHSL-03-50 ZHSL-03-100 ZHSL-03-200
Input Wattage 40W 60W 120W 200W
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 3000-3600lm 6600-7200lm 13200-14400lm 22000-25000lm
Input Voltage AC90-305V AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66 IP66
Installation Pipe Diameter Φ50mm Φ60mm Φ60mm Φ60mm
Installation Height 4-6m 4-8m 8-12m 10-14m
Net Weight 3.7kgs 5.5kgs 7.5kgs 11.8kgs
Gross Weight 4.0kgs 6.0kgs 8.0kgs 12.5kgs
Packing Size(mm) 570*240*255 680*295*150 750*355*165 915*415*185
Product Size(mm) 500*210*151 618*260*187 684*300*185 850*365*198




6500K 50mm 3600lm Waterproof Led Street Light 0

6500K 50mm 3600lm Waterproof Led Street Light 1

6500K 50mm 3600lm Waterproof Led Street Light 2

Feature of Product

1.Special optical lens with tempered glass cover,make the good light distribution and perfect proof (water proof and dust proof)

2.With Surge Projector to protect lamp from up to 10KV/10KA.

3. Knob type, easy installation and maintenance by turn the switch do not need tools to open or close the light cap.

4.Full die-cast aluminum housing to prevent guano.

5.The mounting angle is adjustable. The lamp can be adjusted ±15 degree.

6.It can be matched with photocell , smart controller, timer,0-10V dimming,DALI etc

Our advantage

1. Good supply chain management . We have build a good relationship with many international brand ( Bridgelux , San’an , , Osram , Meanwell , , etc). That will help us get high quality led chip, led driver, lens on time.

2. Professional staffs. We have more than 100 staffs.The workers are skilled.They know the products very well from a screw to the whole product. They know the key point during production process and how to deal with if there is a problem.

3. Advanced equipments. We have many advanced equipments. That will make sure that our products are produced in high standard and strict process.


Application
It is suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.

And if you have the tech to make design yourself , we can provide the IES files for you.



Q5.I have a street/high way project,what's your suggestion?

Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
