Smart Sensor Square Led Street Lamp Housing Power 180W 150lm/W High Luminums Effecacy

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

Smart Sensor Square Led Street Lamp Housing Power 180W 150lm/W High Luminums Effecacy

Smart Sensor Square Led Street Lamp Housing Power 180W 150lm/W High Luminums Effecacy
Smart Sensor Square Led Street Lamp Housing Power 180W 150lm/W High Luminums Effecacy
video play

Large Image :  Smart Sensor Square Led Street Lamp Housing Power 180W 150lm/W High Luminums Effecacy

Product Details:
Place of Origin: China
Brand Name: Die casting man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-25-150
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam filing/pc
Delivery Time: 35days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/Month.
Detailed Product Description
Input Wattage: 150W Efficiency: >150lm/w
Voltage: AC90-305V IP: 66
Package: 1pcs/carton Packing Details: With Strofoam Package
Standards & Certifications: CE ENEC Color: Grey/Black ( Other Upon Request)
Color Temperature: 3000k 4000k 5000k 6500k Color Rendering Index: ≥70
High Light:

Square Led Street Lamp Housing

,

180W Smart Sensor Led Street Lamp

,

150lm/W LED Light Housing

Smart Sensor Square Led Street Lamp Power 180W 150lm/w high luminums effecacy outdoor lamp

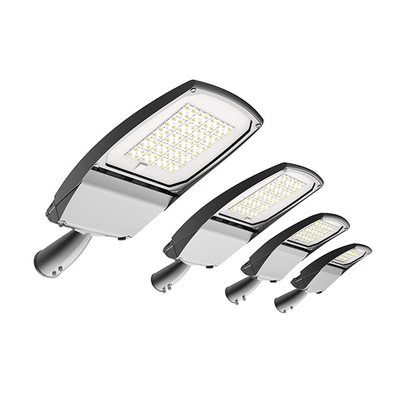

What I'm showing you now is the street light that we developed this year, the SL-25 series,For this series, we designed total of three sizes models, to deal with three different wattage requirements,The minimum power can be 40watts, the maximum can reach 250 watts.





Products Description



Product Datasheet
Item No. YASL-25-40M  YASL-25-100M YASL-25-150M YASL-25-200M
Power 40W 100W 150W 200W
Lumen Efficiency 150lm/w 150lm/w 150lm/w 150lm/w
Lumen 6000lm 15000lm 22500lm 30000lm
Product Size (mm) 555x210x143mm 5645x257x147mm 790x305x147mm 890x361x163mm
Electrical Data
Working Voltage AC100-265V 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20 ~+50 , 10%~90%RH
Lifespan L70 at 25 > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%



First all,let me introduce our company Ningbo Die-casting Man to you:

Smart Sensor Square Led Street Lamp Housing Power 180W 150lm/W High Luminums Effecacy 0

Is there anything else you want to know about this lamp?



1. Q:What is the waterproof rating?

A: It’s can pass IP66

2. Q:How many years of warranty do you promise?

A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.

3. Q:What is the grade of your powder coating?

A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.

4. Q:What's the packing you use?

A: Our packing is PE bags with foam and carton box,we will ensure it safe.

5. Q:What is your usual lead time?

A: 25 days for regular products, 10 days extra for special requirements.

6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?

A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.

7. Q:What brand of driver do you use?

A: The brand we usually use is Inventronics,Sosen these China local brand,and ,MEANWELL these international brand,Customers can also specify brands,it’s no problem.

8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?

Smart Sensor Square Led Street Lamp Housing Power 180W 150lm/W High Luminums Effecacy 1
